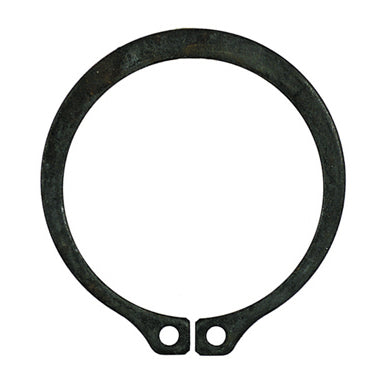

1-1/2 Inch Black Phosphate Carbon Spring Steel External Snap Ring

Item 436.112

We Stand Behind Our Products

If you are not satisfied, return within 90 days for a full refund.

Description

From cap screws to hitch pins we are a master distributor for fasteners of all types. Available in inch and metric sizes we are your single source solution. Additionally we offer both domestic and imported options for most fastener types.

  • Plating; Phosphate
  • Material: Carbon Spring SteelAllowable Corner Chamfers: 0.047 Inch
  • Allowable Corner Radii: 0.079 Inch
  • Clearance Diameter Released in Groove: 1.900 Inch
  • Edge Margin: 0.141 Inch
  • Finish: Black Phosphate
  • Gaging Diameter: 1.668 Inch
  • Groove Depth: 0.047 Inch
  • Groove Diameter: 1.406 Inch
  • Groove Diameter to Shaft Concentricity: 0.005 Inch
  • Groove Diameter Tolerance: +/-0.004
  • Groove Width: 0.056 Inch
  • Groove Width Tolerance: +0.004/-0.000
  • Hardness: HRC 47-52
  • Hole Diameter: 0.120 Inch
  • Hole Diameter Tolerance: +0.015/-0.002
  • Item: External Snap Ring
  • Lug Height: 0.214 Inch
  • Lug Height Tolerance: +/-0.004
  • Material: Carbon Spring Steel
  • Maximum Section: 0.168 Inch
  • Maximum Section Tolerance: +/-0.006
  • Measurement: Inch
  • Minimum Section: 0.091 Inch
  • Minimum Section Tolerance: +/-0.006
  • Radial Wall Thickness: 0.091 - 0.168 Inch
  • Ring Free Diameter: 1.387 Inch
  • Ring Free Diameter Tolerance: +0.010/-0.015
  • Shaft Diameter: 1-1/2 Inch
  • Thickness: 0.050 Inch
  • Thickness Tolerance: +/-0.002
  • Type: Stamped Standard Duty

Photographs are representational and may not be size accurate.

Key Specifications
Diameter 1-1/2 Inch
Material Spring Steel
Measurement Inch
