Winzer

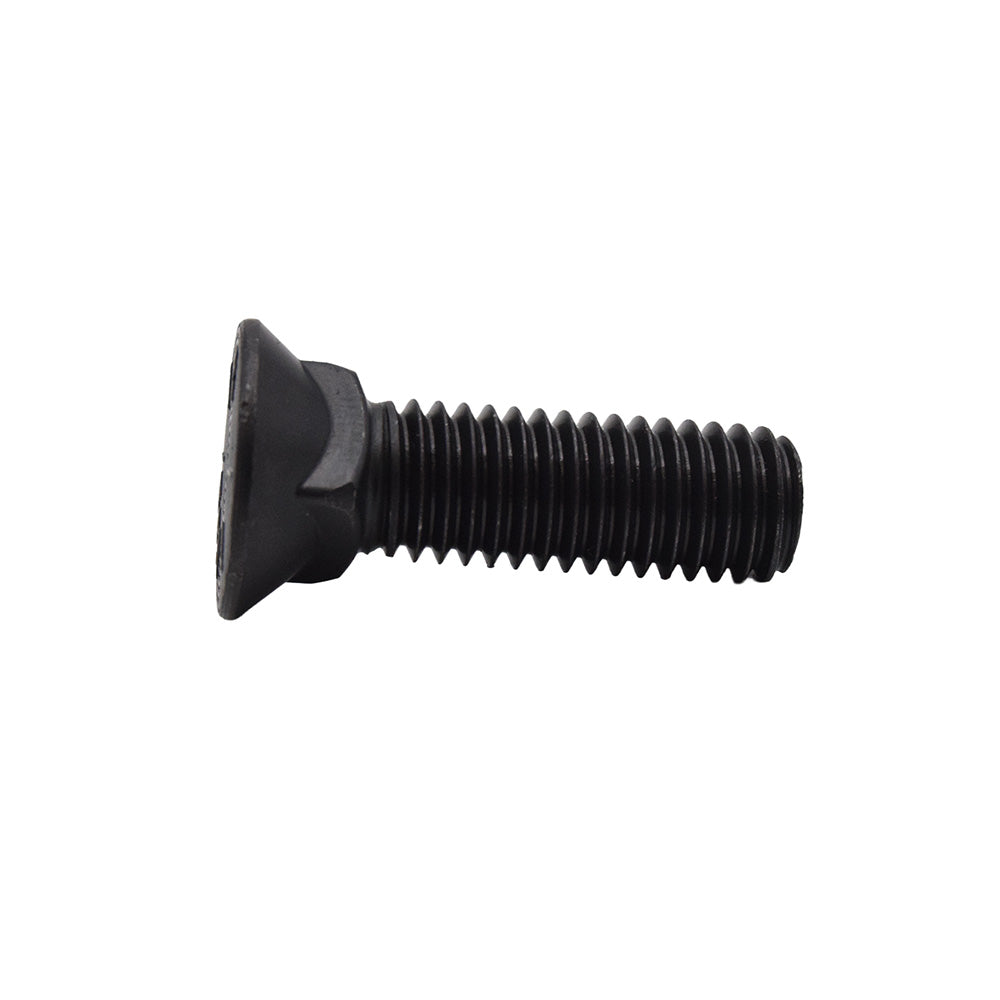

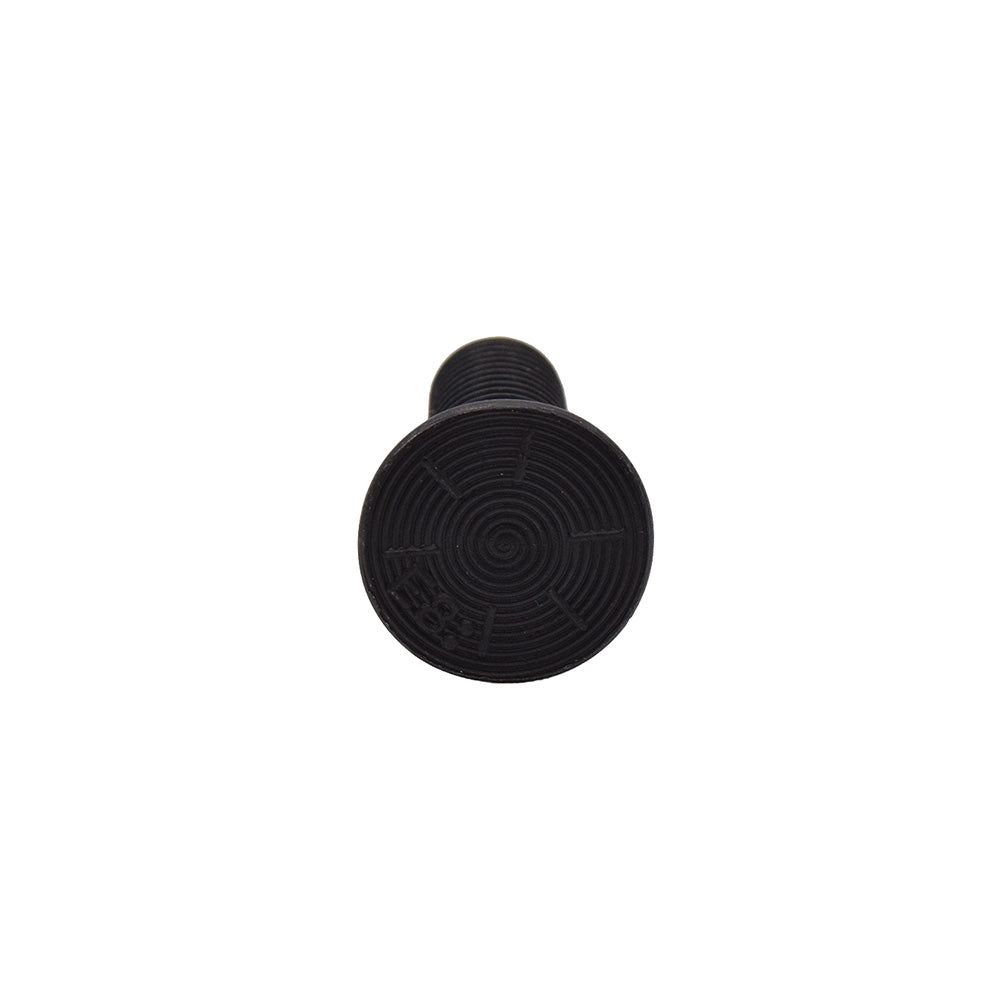

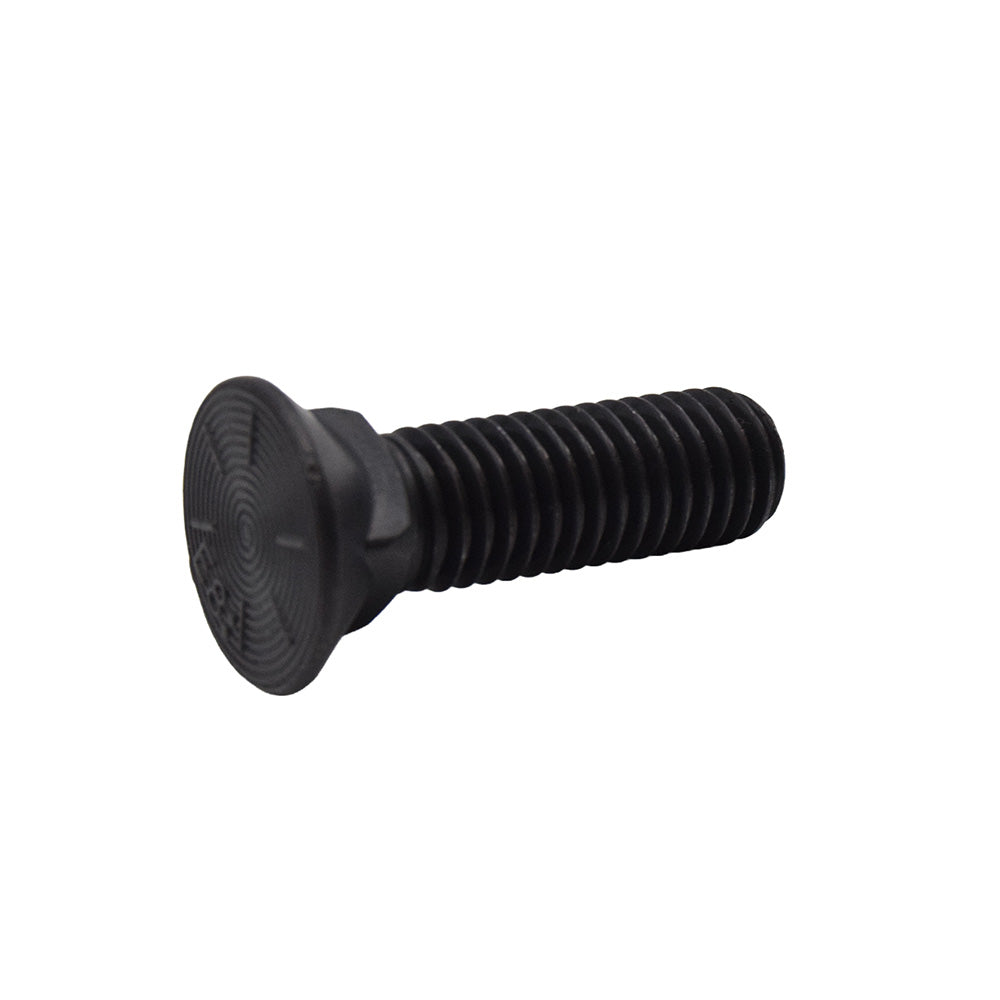

1/2-13 x 1-3/4 Inch Coarse Plain Grade 8 Flat Head Plow Bolt

Item 232.12.134

We Stand Behind Our Products

If you are not satisfied, return within 90 days for a full refund.

Description

These Grade 8 plow bucket-tooth bolts have a locking key that holds the bolt as the nut is fastened. Used to secure heavy equipment parts these bolts have smooth angled heads to sit flush within their countersunk holes. The hole must first be countersunk with the chamfered edge in order to sit flush. These bolts come in a black oxide finish which is corrosion resistant in dry environments.

  • Plating : Zinc
  • Tensile Strength : 150.000
  • Proof Load PSI : 120 000Body Diameter: 0.483 - 0.500 Inch
  • Diameter: 1/2 Inch
  • Finish: Plain
  • Grade: Grade 8
  • Head Diameter: 0.875 - 0.945 Inch
  • Head Diameter Max: .945
  • Head Style: #3 Flat Regular
  • Industry Standard: ASME/ANSI B18.9
  • Item: Plow Bolt
  • Length: 1-3/4 Inch
  • Material: Medium Carbon Steel
  • Measurement: Inch
  • Origin: Imported
  • Proof Load: 120000 psi
  • Specification: ASME/ANSI B18.9 SAE J429
  • Square Depth: 0.375 - 0.417 Inch
  • Square Width: 0.500 - 0.515 Inch
  • Tensile Strength : 150000 psi
  • Thread Length: 1-1/4 Inch
  • Thread Type: Coarse
  • Threads Per Inch: 13
  • Type: Partial Threaded
