Photographs are representational and may not be size accurate.

Winzer

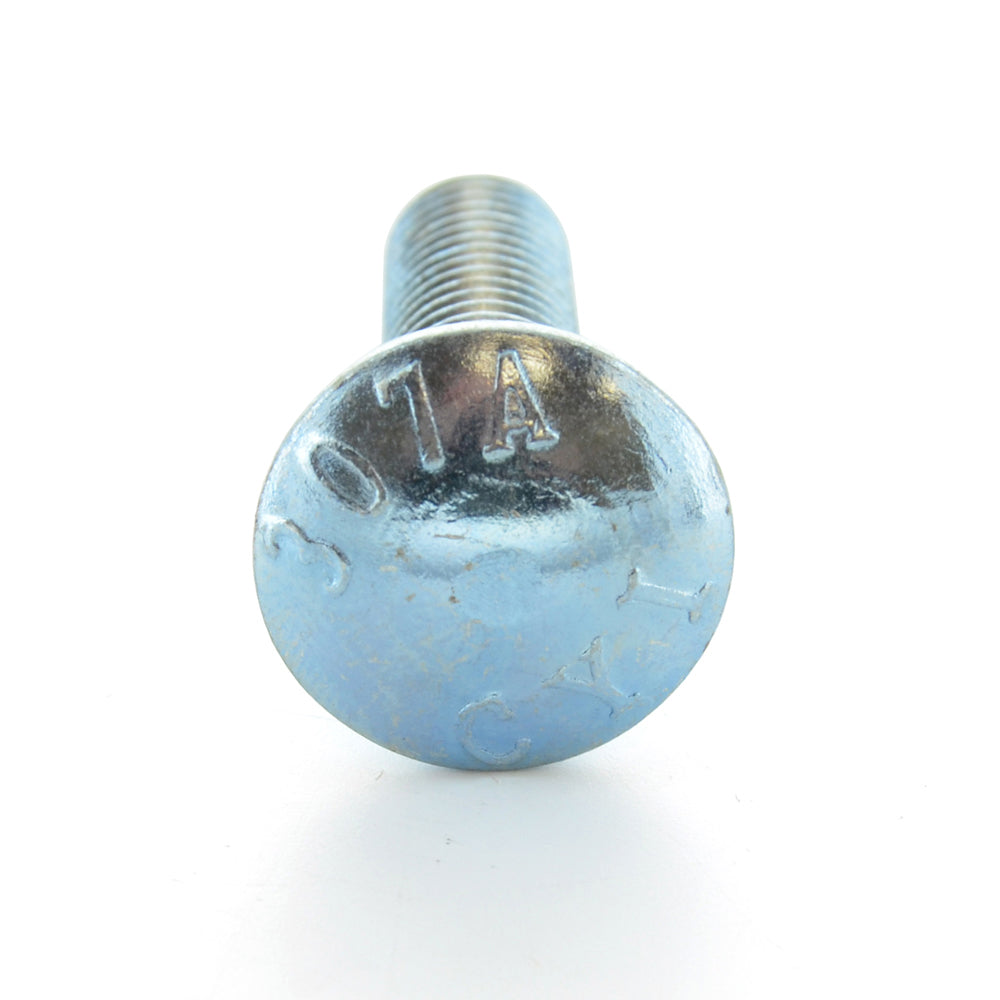

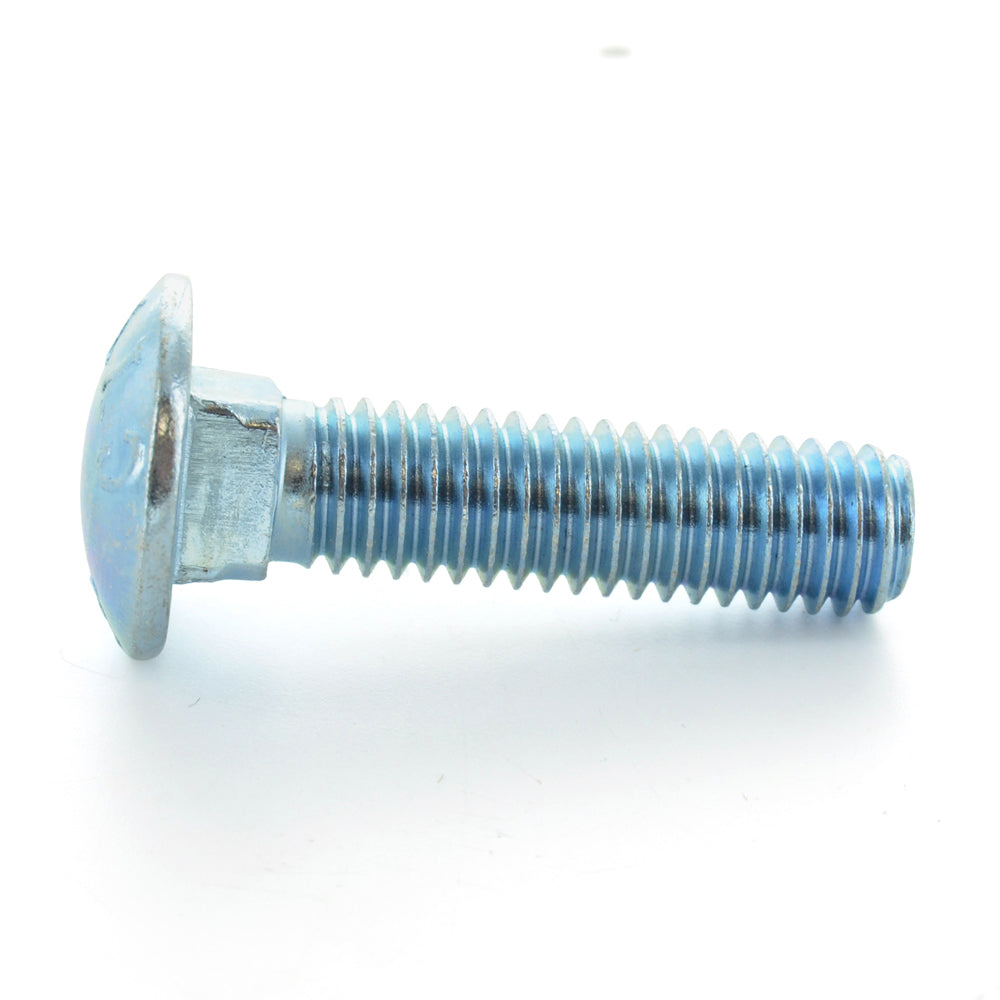

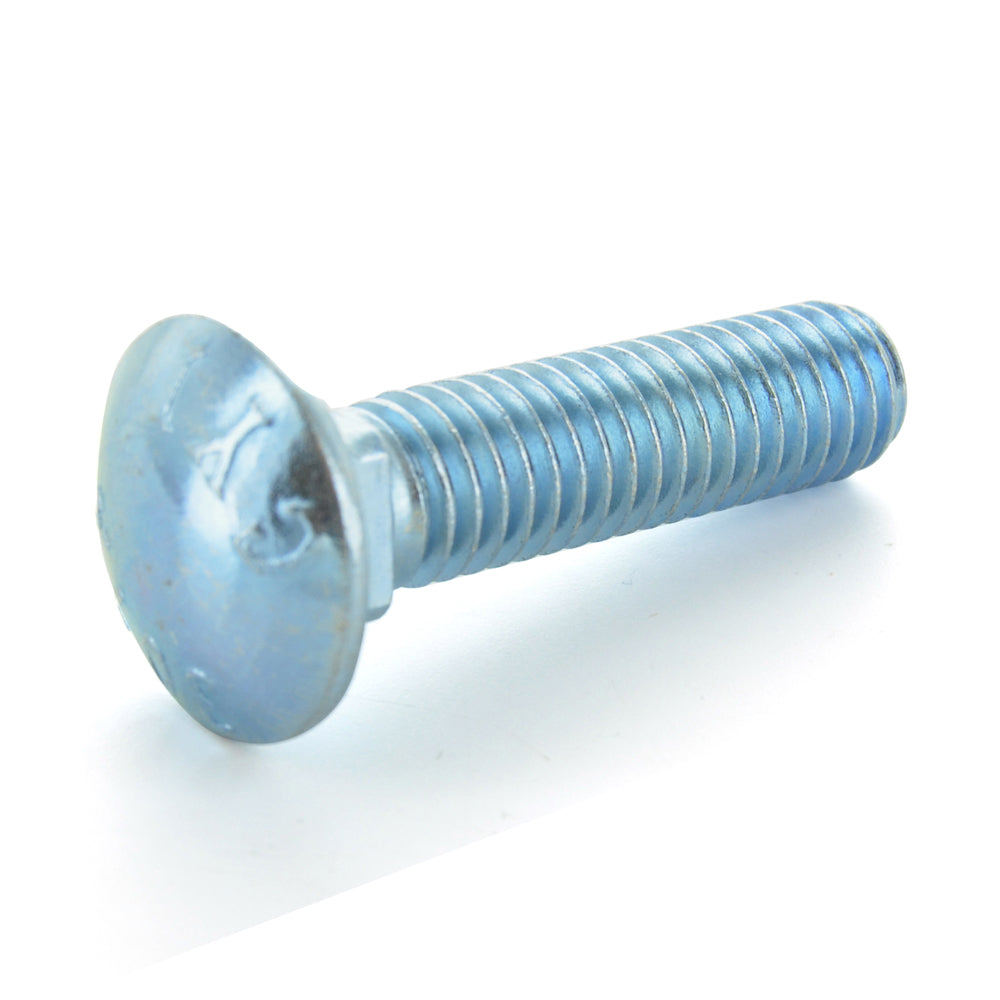

1/2-13 x 10 Inch Coarse Zinc Plated A307 Grade A Round Head Carriage Bolt

Item 236.12.10

We Stand Behind Our Products

If you are not satisfied, return within 90 days for a full refund.

Description

Carriage Bolts also know as a coach bolt or round head square neck bolt carriage bolts are intended for use through iron strengthening plates on either side of a wooden beam. It is commonplace to use them into bare timber. Carriage bolts have a squared section under their round head that grip to prevent rotation

  • Origin: Imported
  • Also know as a coach bolt or round head square neck bolt carriage bolts are intended for use through iron strengthening plates on either side of a wooden beam
  • It is commonplace to use them into bare timber
  • Carriage bolts have a squared section under their round head that grip to prevent rotation
  • Finish as per ASTM F1941 Fe/Zn 3AT
  • Diameter: 1/2 Inch
  • Finish: Zinc
  • Grade: A
  • Head Diameter: 1.032 - 1.094 Inch
  • Head Height: 0.250 - 0.270 Inch
  • Head Height Max: .270
  • Head Style: Round
  • Item: Carriage Bolt
  • Length: 10 inch
  • Material: Low Carbon Steel
  • Measurement: Inch
  • Origin: Imported
  • Specification: ASME/ANSI B18.5 ASTM A307
  • Square Depth: 0.250 - 0.281 Inch
  • Square Width: 0.492 - 0.515 Inch
  • Thread Length: 6 Inch
  • Thread Type: Coarse
  • Threads Per Inch: 13
  • Type: Partial Threaded

Photographs are representational and may not be size accurate.

Key Specifications
Finish Zinc
Head Style Round
Length 10 Inch
Material A307
Measurement Inch
Thread Type Coarse
