Winzer

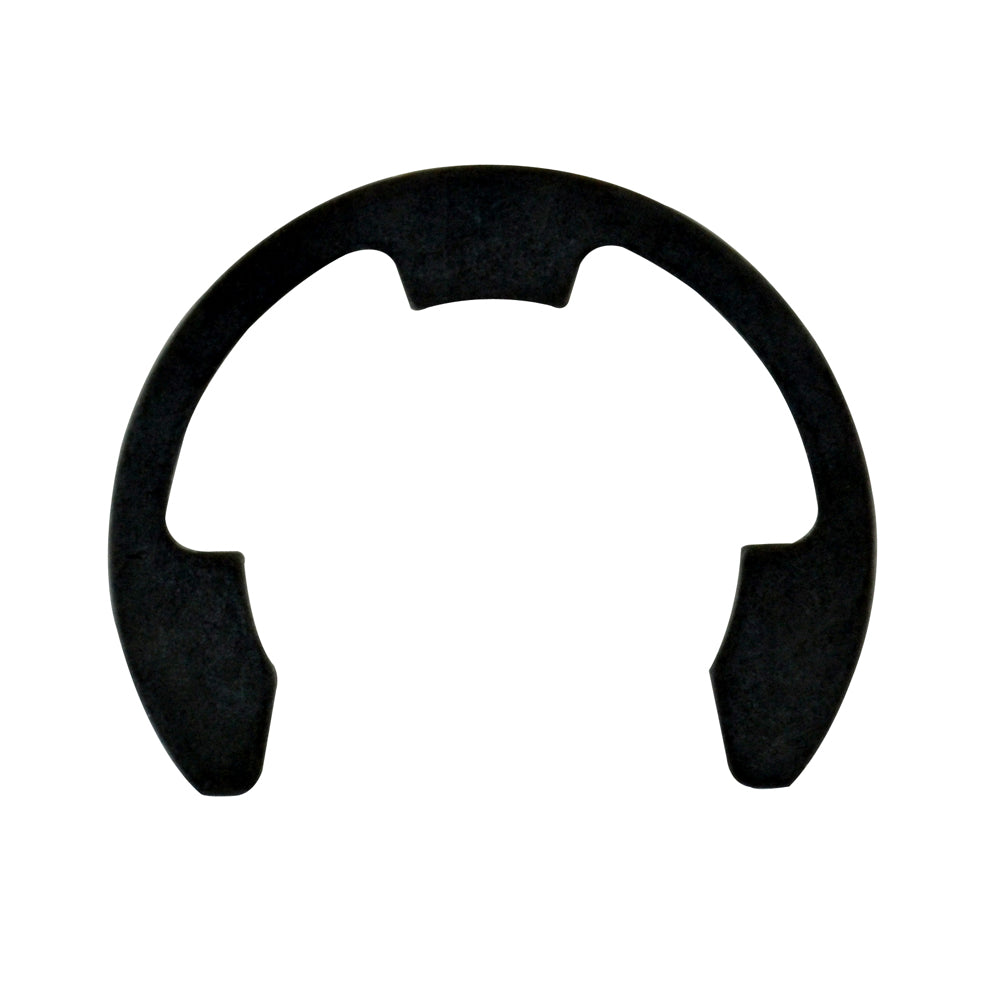

1/2 Inch Phosphate Carbon Spring Steel E-Clip Retaining Ring

Item 494.12

We Stand Behind Our Products

If you are not satisfied, return within 90 days for a full refund.

Description

Circlips (also known as retaining rings) are types of fastener which look like flexible open-ended rings. Circlips are typically made from stainless steel and similar metals. Alternative names for circlips include retaining rings retaining clips C-type Jesus clips snap rings and E-type.

  • Plating: Phosphate
  • Material: Carbon Spring SteelAllowable Corner Chamfers: 0.060 Inch
  • Allowable Corner Radii: 0.080 Inch
  • Application: E-clip
  • Clear Outside Diameter: 0.800 Inch
  • Clearance Diameter Released in Groove: 0.820 Inch
  • Edge Margin: 0.104 Inch
  • Finish: Phosphate
  • Groove Depth: 0.050 Inch
  • Groove Diameter: 0.400 Inch
  • Groove Diameter to Shaft Concentricity: 0.004 Inch
  • Groove Width: 0.050 Inch
  • Groove Width Tolerance: +0.003/-0.000
  • Hardness: HRC 47-52
  • Item: E-Clip
  • Material: Carbon Spring Steel
  • Measurement: Inch
  • Ring Free Diameter: 0.392 Inch
  • Ring Free Diameter Tolerance: +0.002/-0.004
  • RPM Limits: 14000 RPM
  • Shaft Diameter: 1/2 Inch
  • Thickness: 0.042 Inch
  • Thickness Tolerance: +/-0.002
  • Thrust Max Load: 1110 lb
  • Type: Stamped

Photographs are representational and may not be size accurate.

Key Specifications
Material Spring Steel
Measurement Inch
Retainer Type E-Clip
