Winzer

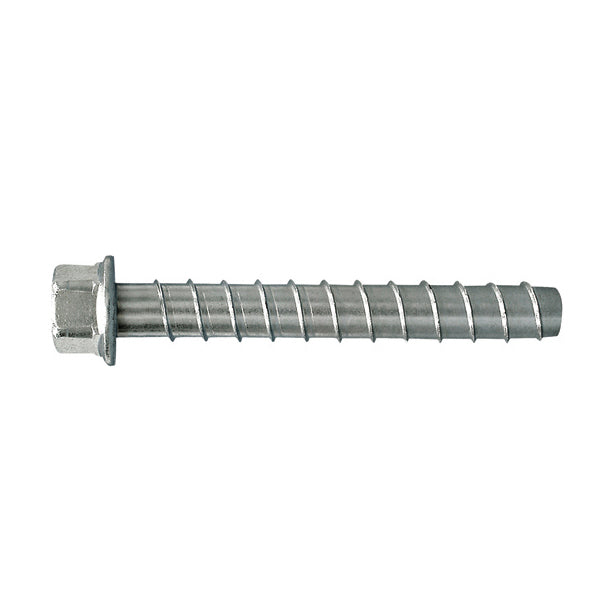

1/2 Inch X 6 Inch Zinc Plated Carbon Steel Titen Hd Concrete And Masonry Screw Anchor

Item 908.01.12.6

We Stand Behind Our Products

If you are not satisfied, return within 90 days for a full refund.

Description

The Titen HD® anchor is a patented high-strength screw anchor for concrete and masonry. It is designed for optimum performance in both cracked and uncracked concrete. the high strength easy to install Titen HD® anchor has been tested and shown to provide outstanding performance in cracked and uncracked concrete under both static and seismic loading conditions. the self-undercutting non-expansion characteristics of the Titen HD® anchor make it ideal for structural applications even at reduced edge distances and spacings. Recommended for permanent dry interior non-corrosive environments or temporary outdoor applications.

  • Material: Carbon steel heat treated. Finish: Zinc plated or mechanically galvanized
  • Removable: Ideal for temporary anchoring (e.g. formwork bracing) or applications where fixtures may need to be moved. Re-use of the anchor to achieve listed load values is not recommended.
  • No special drill bit needed: Designed to install using standard sized ANSI tolerance drill bits
  • Installs with 50% less torque: Testing shows that when compared to competitors the Titen HD® requires 50% less torque to be installed in concrete
  • Hex-washer head: Requires no separate washer and provides a clean installed appearance
  • Some jurisdictions require an additional square plate washer for sill plate applications

Photographs are representational and may not be size accurate.

Key Specifications
Diameter 1/2 Inch
Drive Type External Hex
Finish Zinc
Head Style Hex Washer
Length 6 Inch
Material Steel
Measurement Inch
