Winzer

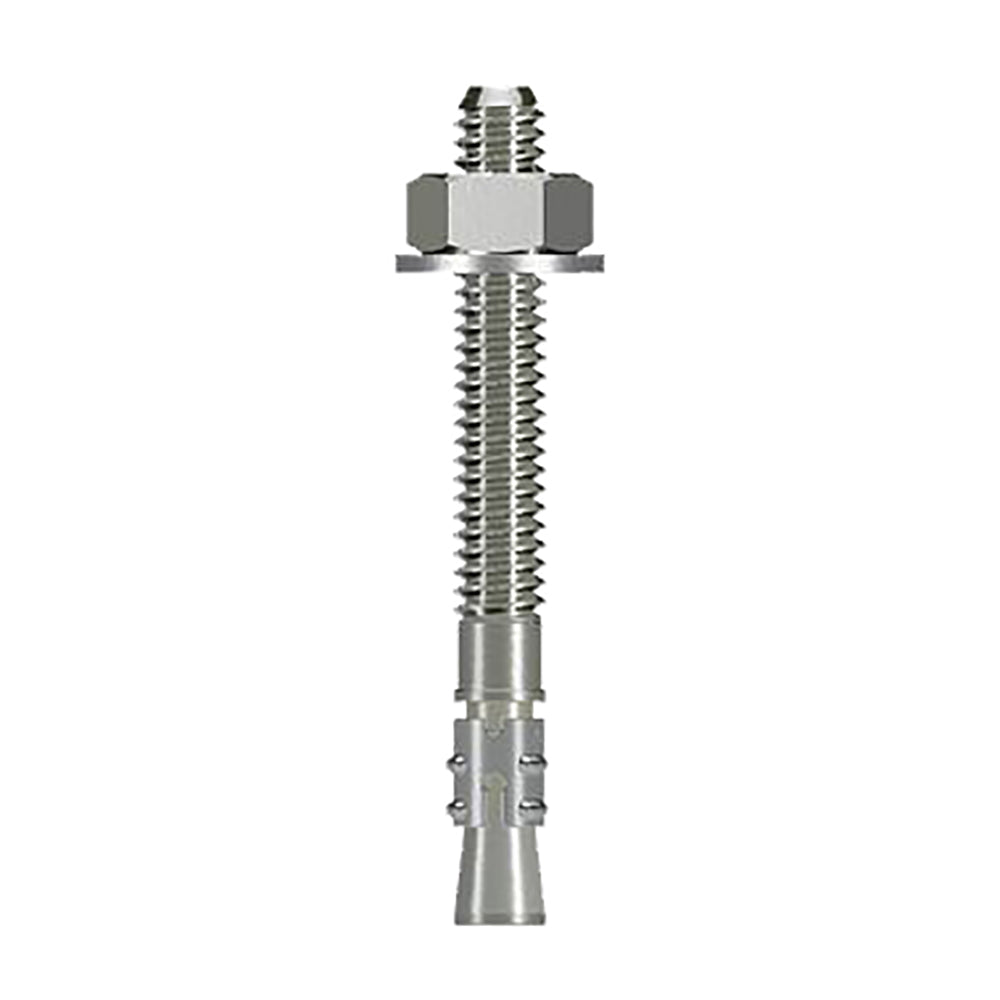

1/2 x 4-1/4 Strong Bolt 2 Wedge Style Expansion Anchor 316 Stainless Steel

Item 900.55.12.414

We Stand Behind Our Products

If you are not satisfied, return within 90 days for a full refund.

Description

Code listed for cracked and uncracked concrete and masonry applications the Strong-Bolt 2 wedge-type expansion anchor is an optimal choice for high-performance even in seismic and high-wind conditions. Dual undercutting embossments on each clip segment enable secondary expansion should a crack form and intersect the anchor location; this feature significantly increases the ability of Strong-Bolt 2 to carry load if the hole expands. The Strong-Bolt 2 stainless-steel wedge-anchor offers long-lasting corrosion resistance for a wide variety of service environments.

  • Chamfered top designed to prevent mushrooming during installation
  • Qualified for static and seismic loading conditions (seismic design categories A through F)
  • Suitable for horizontal vertical and overhead applications
  • Qualified for minimum concrete thickness of 3 1/4"" and lightweight concrete-over-steel deck thickness of 2 1/2"" and 3 1/4""
  • Standard (ANSI) fractional sizes: fits standard fixtures and installs with common drill bit and tool sizes
  • Tested per ACI355.2 and AC193
  • Material: 316 Stainless Steel

Photographs are representational and may not be size accurate.

Key Specifications
Diameter 1/2 Inch
Length 4-1/4 Inch
Material 316 Stainless Steel
Measurement Inch
