Winzer

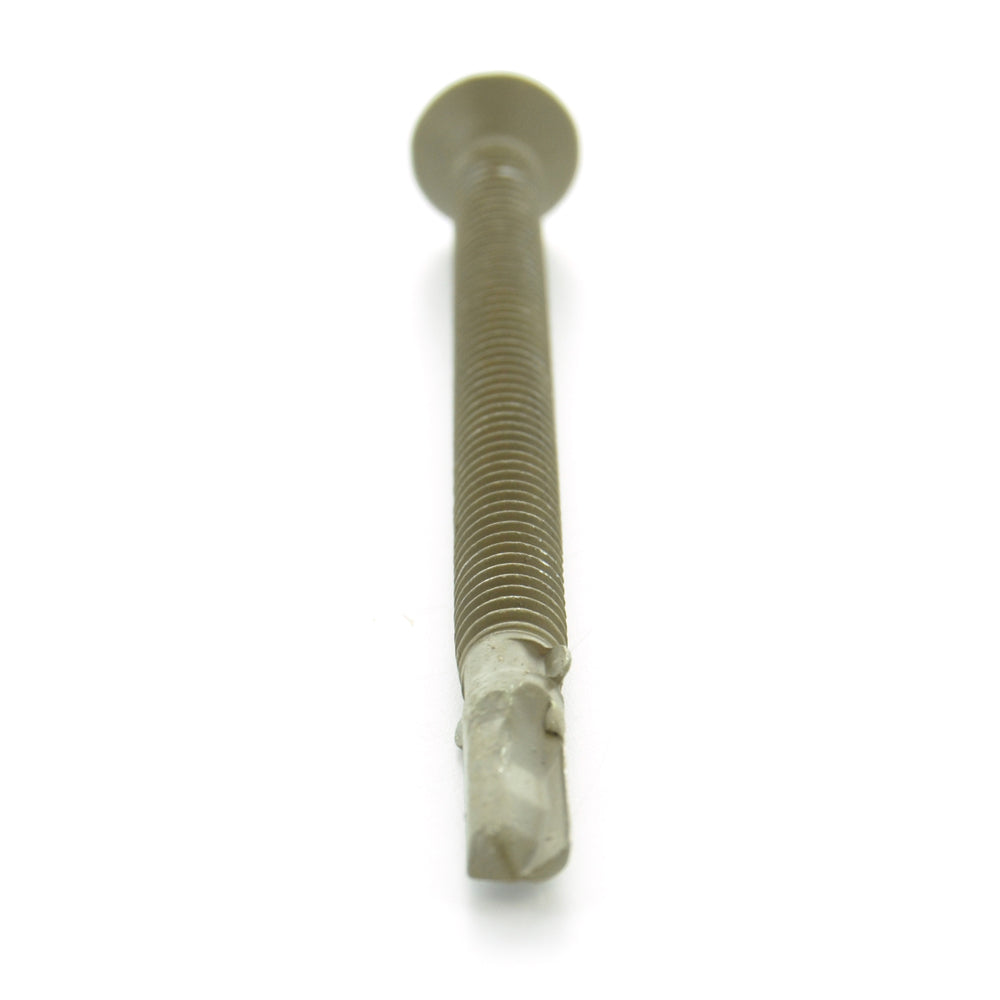

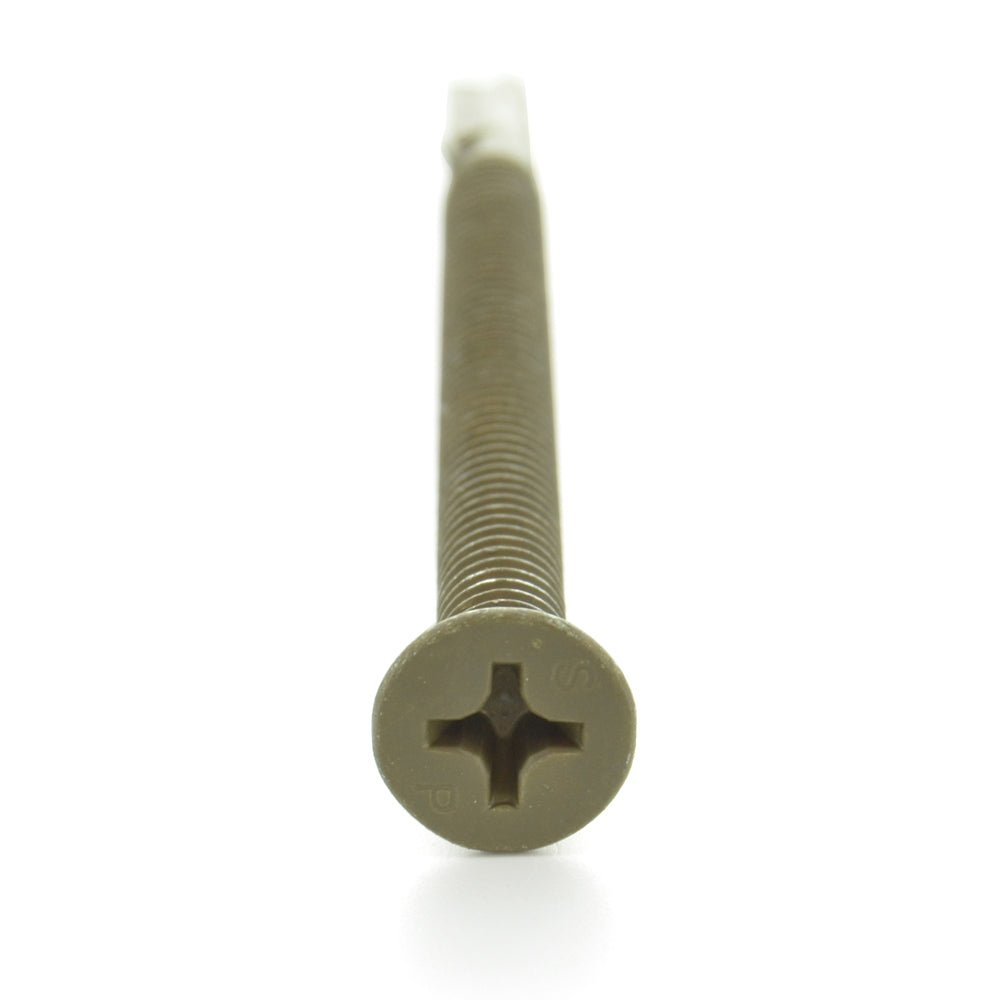

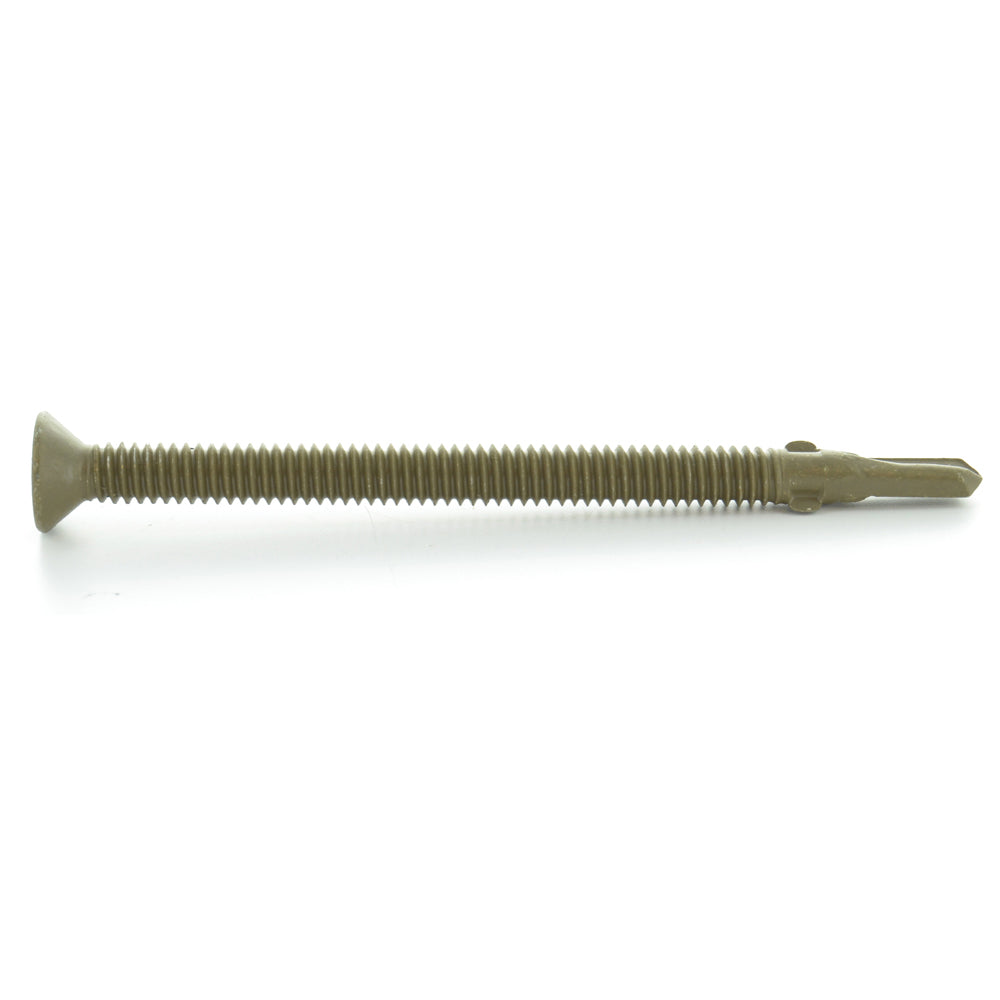

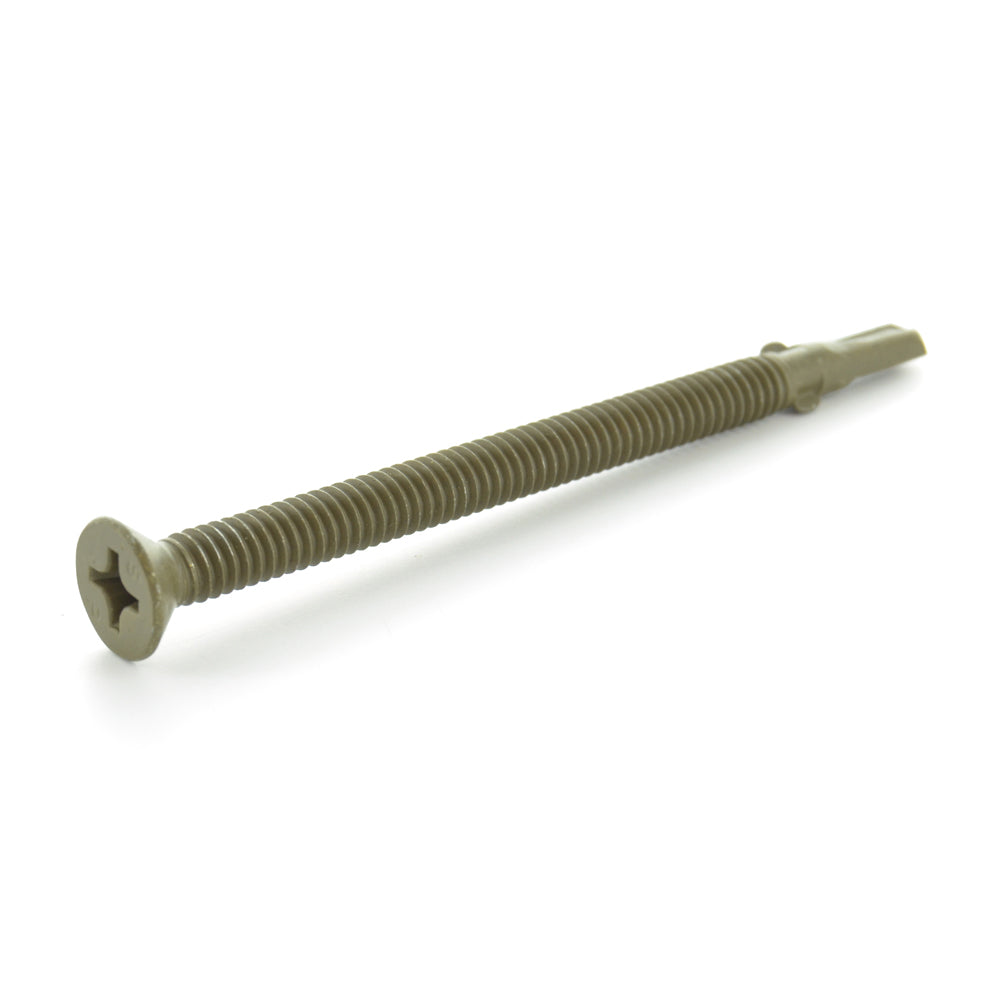

1/4-20 x 2-3/4 Inch W.A.R. Coated Steel #4 Point Flat - Countersunk Head Self-Drilling Tek Screw With Wings

Item 121.01.1420.34

We Stand Behind Our Products

If you are not satisfied, return within 90 days for a full refund.

Description

These machine screws have deeply sunk heads with flat top surfaces for fastening flatly against sides of metal joints and equipment. These screws sit flush against the surface of panels and electrical components for a finished look.

  • Attaches wood to metal
  • Drill Capacity: 0.110 - 0.375 Inch
  • Drive Size: #3
  • Drive Type: Phillips
  • Finish: W.A.R. Coated
  • Head Diameter: 0.437 - 0.477 Inch
  • Head Height: 0.110 Inch
  • Head Style: Flat - Countersunk
  • Industry Standard: ASME/ANSI B18.6.4 SAE J78
  • Item: Self-Drilling TEK Screw with Wings
  • Length: 2-3/4 Inch
  • Material: Steel
  • Measurement: Inch
  • Point Type: #4
  • Recess Diameter: 0.276 Inch
  • Recess Penetration Gagging Depth: 1/4 FPT x 1/4 MPT
  • Specification: ASME/ANSI B18.6.4 SAE J78 SAE J933
  • Threads Per Inch: 20

Photographs are representational and may not be size accurate.

Key Specifications
Drive Type Phillips
Head Style Flat
Length 2-3/4 Inch
Material Steel
Measurement Inch
