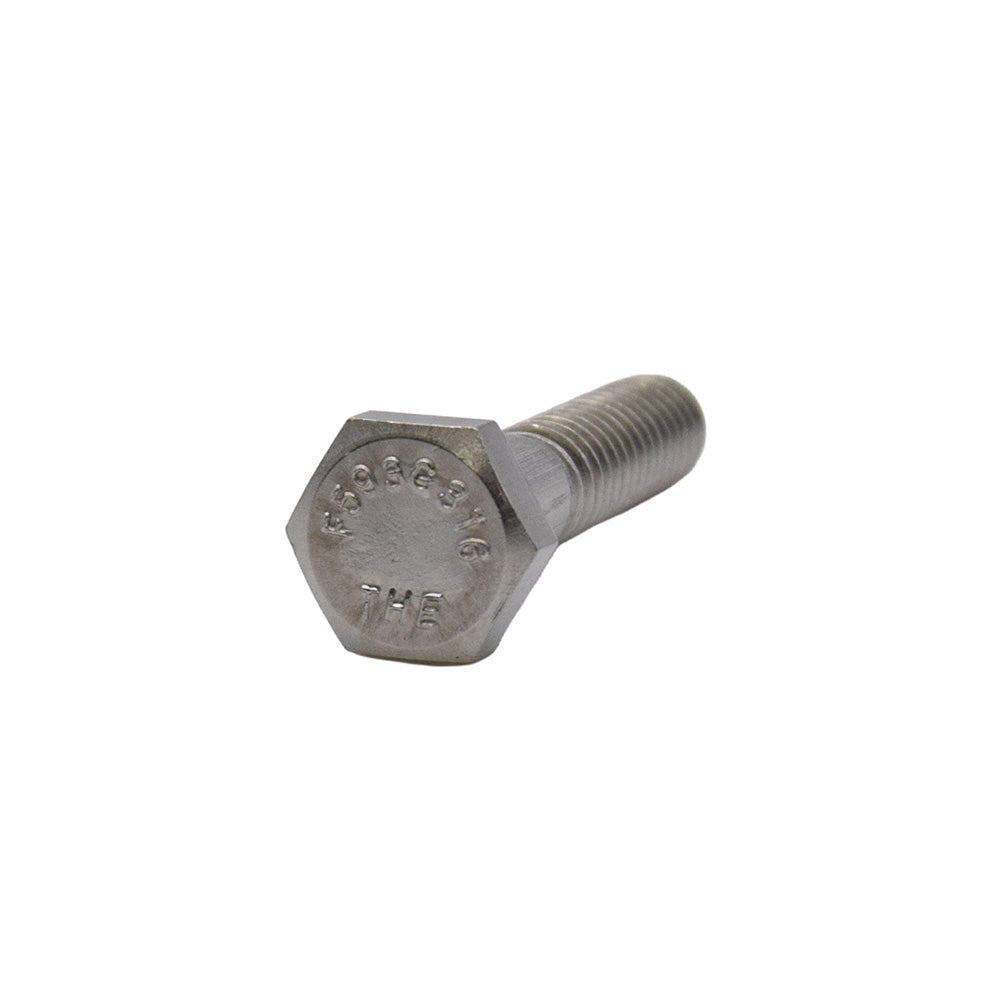

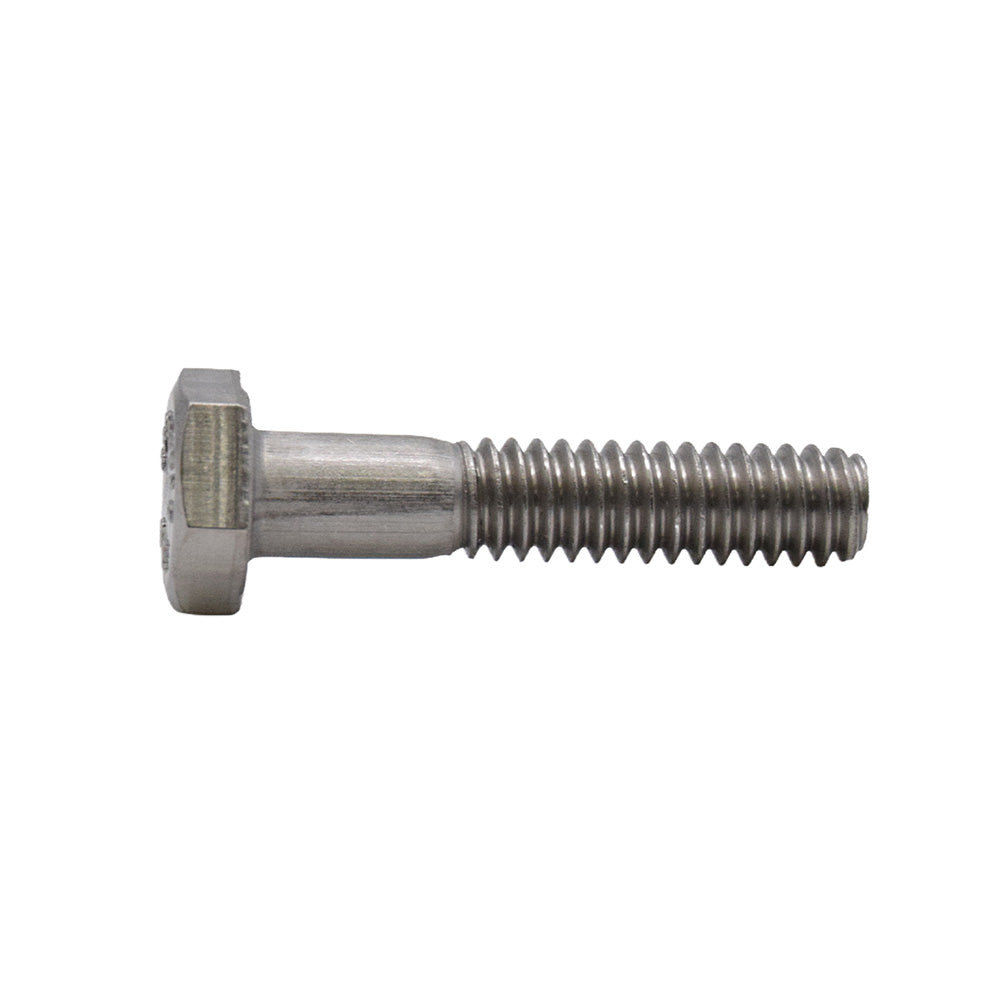

Photographs are representational and may not be size accurate.

Winzer

1/4-20 x 4-1/2 Inch Coarse Plain 316 Stainless Steel Hex Head Cap Screw

Item 070.14.412

We Stand Behind Our Products

If you are not satisfied, return within 90 days for a full refund.

Description

Cap Screws are proportioned and toleranced to assure full and proper loading when assembled into a tapped hole. Washer face is provided under the head to provide a bearing surface when tightened. It ensures fit-up into tapped holes without counterboring. End is chamfered to aid in inserting into a tapped hole. Made In USA. Cap Screws can be used in tapped holes or with a wide range of nut bolted connections and in the applications for vehicles and structures.

  • Application: 0.034 Inch
  • Body Diameter: 0.245 - 0.250 Inch
  • Diameter: 1/4 Inch
  • Diameter Thread Size: 1/4-20
  • Drive Type: Hex
  • Finish: Plain
  • Grade: 316
  • Head Diameter: .438
  • Head Height: .156
  • Head Height Max: 5/32 Inch
  • Head Type: Hex
  • Industry Standard: ANSI B18.2.1 - 1981
  • Inside Diameter: .505
  • Item: Cap Screw
  • Length: 4-1/2 Inch
  • Material: 316 Stainless Steel
  • Measurement: Inch
  • Origin: Imported
  • Specification: ANSI B18.2.1 - 1981
  • Thread Length: 3/4 Inch
  • Thread Type: Coarse
  • Threads Per Inch: 20
  • Type: Partial Threaded
  • Width Across Corner: 0.488 - 0.505 Inch
  • Wrench Height: 0.106 Inch

Photographs are representational and may not be size accurate.

Key Specifications
Diameter 1/4 Inch
Drive Type External Hex
Head Style Hex
Length 4-1/2 Inch
Material 316 Stainless Steel
Measurement Inch
Point Type Machine Screw
Thread Size 1/4-20
