Winzer

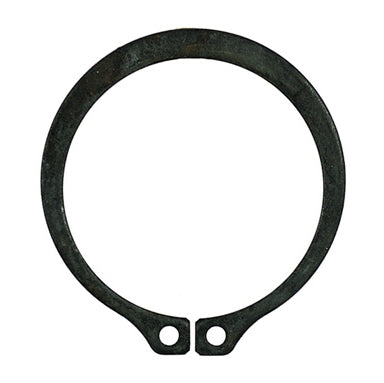

1/4 Inch Black Phosphate Carbon Spring Steel External Snap Ring

Item 436.14

We Stand Behind Our Products

If you are not satisfied, return within 90 days for a full refund.

Description

From cap screws to hitch pins we are a master distributor for fasteners of all types. Available in inch and metric sizes we are your single source solution. Additionally we offer both domestic and imported options for most fastener types.

  • Plating; Phosphate
  • Material: Carbon Spring SteelAllowable Corner Chamfers: 0.011 Inch
  • Allowable Corner Radii: 0.018 Inch
  • Clearance Diameter Released in Groove: 0.430 Inch
  • Edge Margin: 0.030 Inch
  • Finish: Black Phosphate
  • Gaging Diameter: 0.290 Inch
  • Groove Depth: 0.010 Inch
  • Groove Diameter: 0.230 Inch
  • Groove Diameter to Shaft Concentricity: 0.002 Inch
  • Groove Diameter Tolerance: +/-0.0015
  • Groove Width: 0.029 Inch
  • Groove Width Tolerance: +0.003/-0.000
  • Hardness: HR30N 69.5-73
  • Hole Diameter: 0.041 Inch
  • Hole Diameter Tolerance: +0.010/-0.002
  • Item: External Snap Ring
  • Lug Height: 0.080 Inch
  • Lug Height Tolerance: +/-0.003
  • Material: Carbon Spring Steel
  • Maximum Section: 0.035 Inch
  • Maximum Section Tolerance: +/-0.003
  • Measurement: Inch
  • Minimum Section: 0.025 Inch
  • Minimum Section Tolerance: +/-0.003
  • Radial Wall Thickness: 0.025 - 0.035 Inch
  • Ring Free Diameter: 0.225 Inch
  • Ring Free Diameter Tolerance: +0.002/-0.004
  • RPM Limits: 80000 RPM
  • Shaft Diameter: 1/4 Inch
  • Thickness: 0.025 Inch
  • Thickness Tolerance: +/-0.002
  • Type: Stamped Standard Duty

Photographs are representational and may not be size accurate.

Key Specifications
Material Spring Steel
Measurement Inch
