Winzer

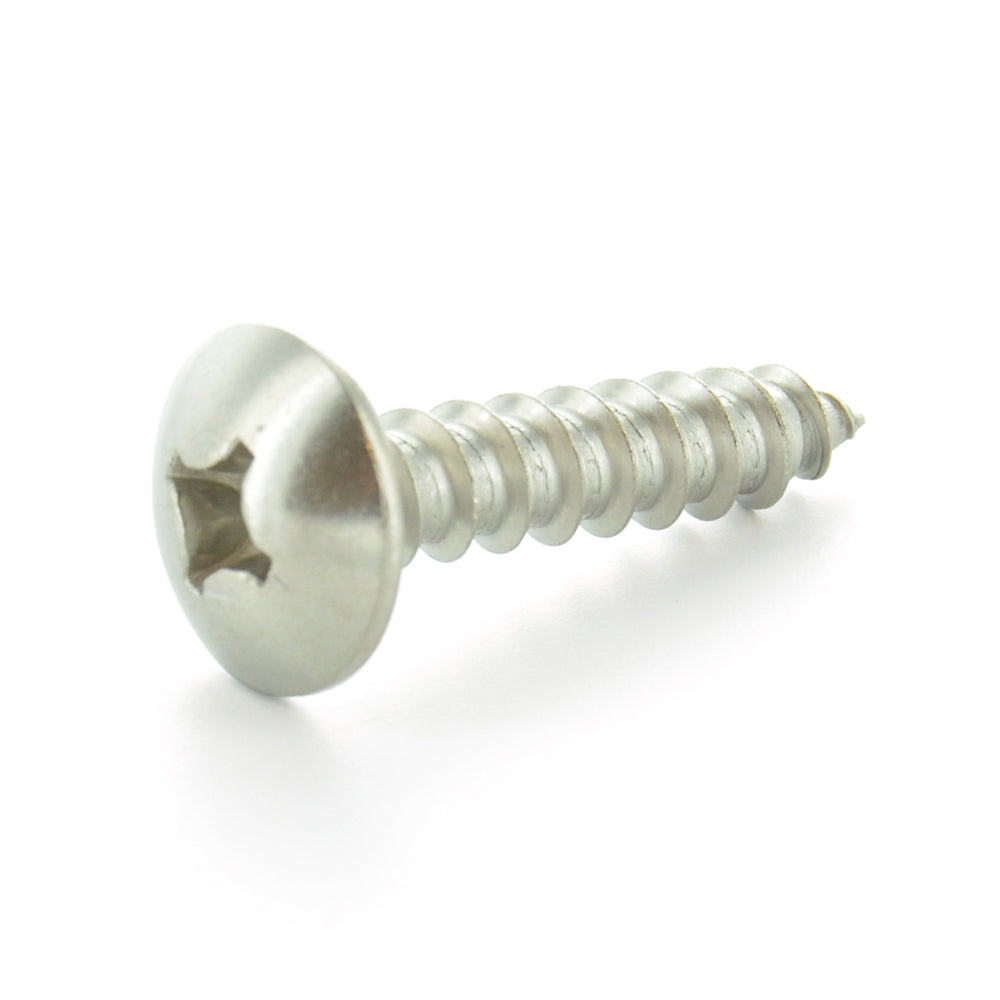

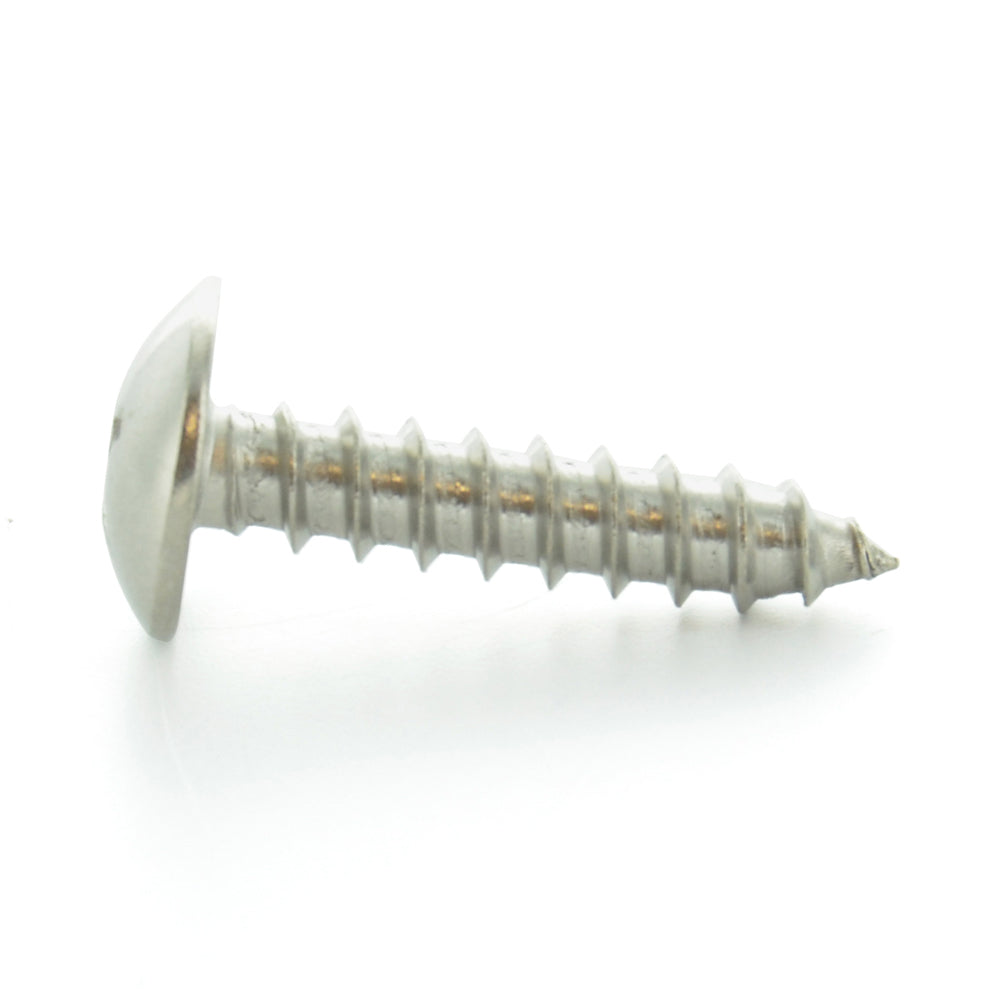

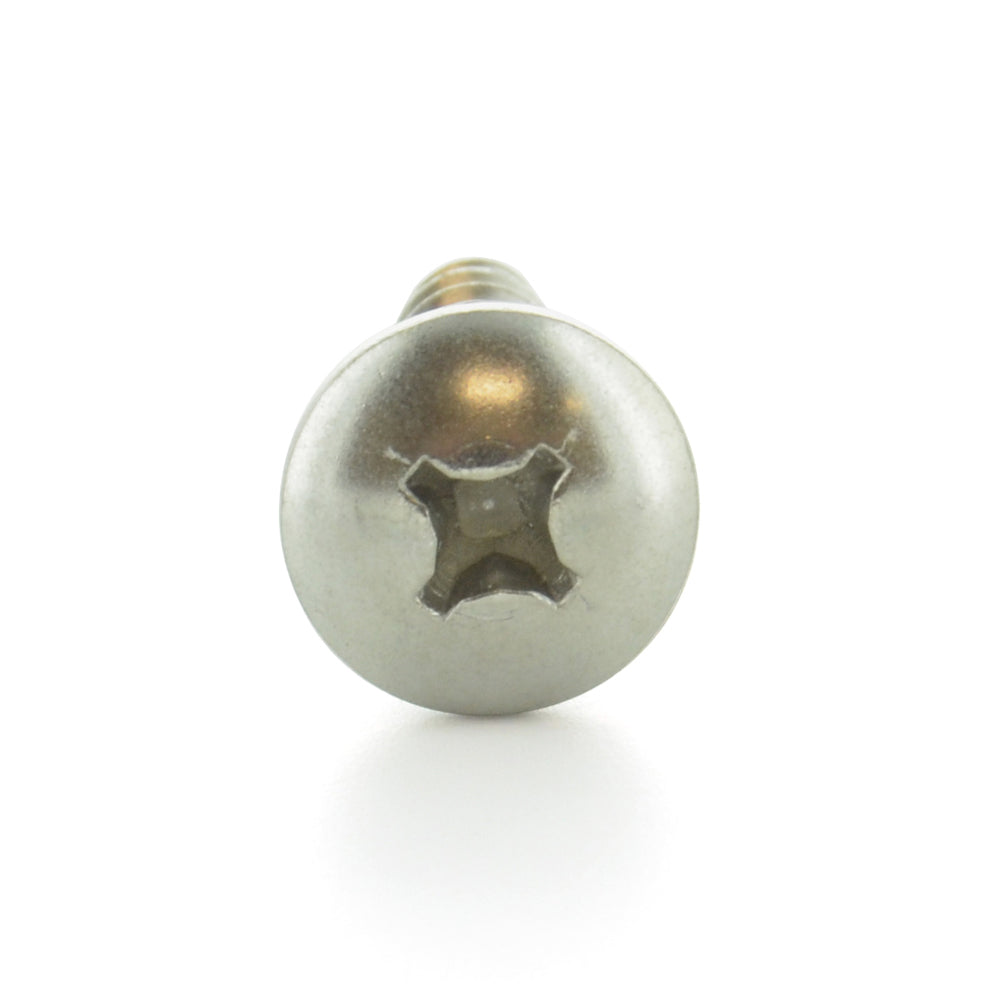

1/4 Inch X 3/4 Inch Plain 18-8 (A2) Stainless Steel Truss Head Type-A Self-Tapping Sheet Metal Screw

Item 112.14.34

We Stand Behind Our Products

If you are not satisfied, return within 90 days for a full refund.

Description

Truss head sheet metal screws have a wider head than standard round head screws to extend holding power and reduce the risk of cracking thin metal. They fasten 0.025" and thinner sheet metal.

  • Origin: Imported
  • Drive Size: #3
  • Drive Type: Phillips
  • Finish: Plain
  • Head Diameter: 0.546 - 0.573 Inch
  • Head Height: 0.133 - 0.150 Inch
  • Head Style: Truss
  • Industry Standard: ASME/ANSI B18.6.4 SAE J78
  • Item: Self-Tapping Sheet Metal Screw
  • Length: 3/4 Inch
  • Material: 18-8 (A2) Stainless Steel
  • Measurement: Inch
  • Origin: Imported
  • Point Type: Type-A
  • Recess Diameter: 0.256 Inch
  • Recess Penetration Gagging Depth: 0.101 - 0.126 Inch
  • Specification: ASME/ANSI B18.6.4 SAE J78

Photographs are representational and may not be size accurate.

Key Specifications
Diameter #14
Drive Type Phillips
Head Style Truss
Length 3/4 Inch
Material 18-8 Stainless Steel
Measurement Inch
Origin IMPORT
Point Type Type A
