Winzer

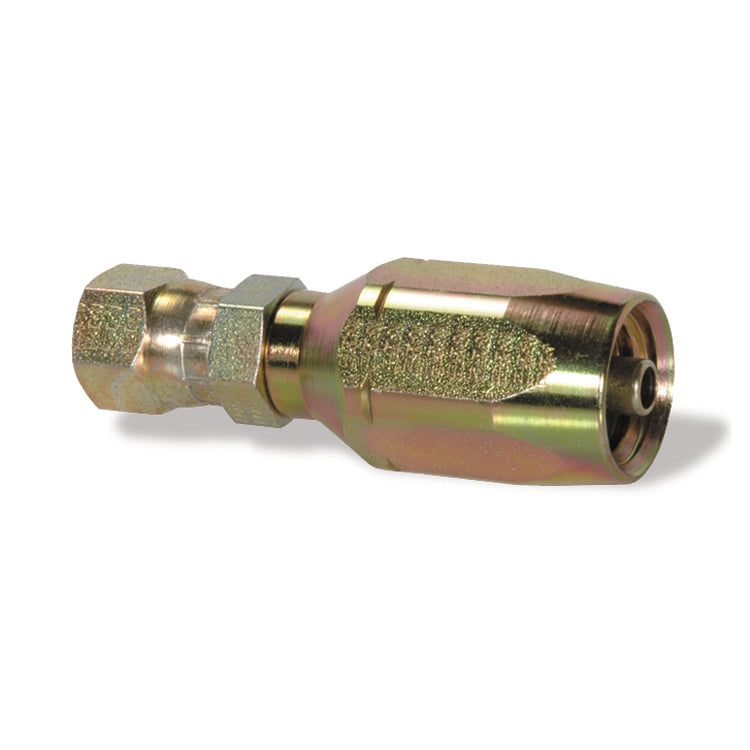

1/4 Inch X 3/8 Inch JIC 37 Degree Female Swivel Yellow Zinc 247 N Series Weatherhead Field Attachable Coupling

Item 897.651.46

We Stand Behind Our Products

If you are not satisfied, return within 90 days for a full refund.

Description

The field attachable couplings are made from carbon steel and can be used on a wide variety of applications.

  • Hose End Series: 425 “N” Series
  • Typical Application: High pressure applications such as construction farm implement and industrial equipment
  • Compatible Hose: H425
  • Pressure: Determined by maximum pressure for hose size
  • Material: AISI/SAE 12L Carbon Steel
  • Plating: Zinc; Yellow Dichromate finish
  • Advantages: non mandrel assembly. Wide variety of applications because of its use with H 425 hose
  • Assembly Instructions: Due to the high torque required to assemble larger sizes it is recommended that 425 “N” series hose ends be assemled with the T-300 Assembly machine1. Lubricate insert threads and I.D. of the hose2. Measure from end of hose and mark the socket depth3. Screw hose into socket to the depth marked on hose4. Screw insert into socket until insert touched socket.

Photographs are representational and may not be size accurate.
