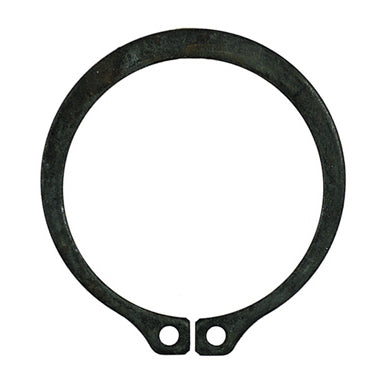

1-9/16 Inch Black Phosphate Carbon Spring Steel External Snap Ring

Item 436.1916

We Stand Behind Our Products

If you are not satisfied, return within 90 days for a full refund.

Description

From cap screws to hitch pins we are a master distributor for fasteners of all types. Available in inch and metric sizes we are your single source solution. Additionally we offer both domestic and imported options for most fastener types.

  • Plating; Phosphate
  • Material: Carbon Spring SteelAllowable Corner Chamfers: 0.049 Inch
  • Allowable Corner Radii: 0.082 Inch
  • Clearance Diameter Released in Groove: 2.010 Inch
  • Edge Margin: 0.141 Inch
  • Finish: Black Phosphate
  • Gaging Diameter: 1.740 Inch
  • Groove Depth: 0.047 Inch
  • Groove Diameter: 1.468 Inch
  • Groove Diameter to Shaft Concentricity: 0.005 Inch
  • Groove Diameter Tolerance: +/-0.005
  • Groove Width: 0.068 Inch
  • Groove Width Tolerance: +0.004/-0.000
  • Hardness: HRC 47-52
  • Hole Diameter: 0.125 Inch
  • Hole Diameter Tolerance: +0.015/-0.002
  • Item: External Snap Ring
  • Lug Height: 0.235 Inch
  • Lug Height Tolerance: +/-0.004
  • Material: Carbon Spring Steel
  • Maximum Section: 0.172 Inch
  • Maximum Section Tolerance: +/-0.006
  • Measurement: Inch
  • Minimum Section: 0.093 Inch
  • Minimum Section Tolerance: +/-0.006
  • Radial Wall Thickness: 0.093 - 0.172 Inch
  • Ring Free Diameter: 1.446 Inch
  • Ring Free Diameter Tolerance: +0.013/-0.015
  • Shaft Diameter: 1-9/16 Inch
  • Thickness: 0.062 Inch
  • Thickness Tolerance: +/-0.003
  • Type: Stamped Standard Duty
