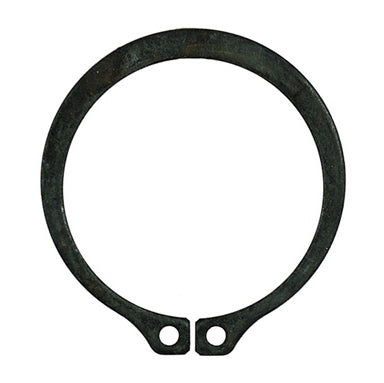

1 Inch Black Phosphate Carbon Spring Steel External Snap Ring

Item 436.1

We Stand Behind Our Products

If you are not satisfied, return within 90 days for a full refund.

Description

From cap screws to hitch pins we are a master distributor for fasteners of all types. Available in inch and metric sizes we are your single source solution. Additionally we offer both domestic and imported options for most fastener types.

  • Plating; Phosphate
  • Material: Carbon Spring SteelAllowable Corner Chamfers: 0.034 Inch
  • Allowable Corner Radii: 0.057 Inch
  • Clearance Diameter Released in Groove: 1.350 Inch
  • Edge Margin: 0.090 Inch
  • Finish: Black Phosphate
  • Gaging Diameter: 1.122 Inch
  • Groove Depth: 0.030 Inch
  • Groove Diameter: 0.940 Inch
  • Groove Diameter to Shaft Concentricity: 0.004 Inch
  • Groove Diameter Tolerance: +/-0.003
  • Groove Width: 0.046 Inch
  • Groove Width Tolerance: +0.003/-0.000
  • Hardness: HRC 47-53
  • Hole Diameter: 0.078 Inch
  • Hole Diameter Tolerance: +0.015/-0.002
  • Item: External Snap Ring
  • Lug Height: 0.167 Inch
  • Lug Height Tolerance: +/-0.004
  • Material: Carbon Spring Steel
  • Maximum Section: 0.116 Inch
  • Maximum Section Tolerance: +/-0.005
  • Measurement: Inch
  • Minimum Section: 0.065 Inch
  • Minimum Section Tolerance: +/-0.005
  • Radial Wall Thickness: 0.065 - 0.116 Inch
  • Ring Free Diameter: 0.925 Inch
  • Ring Free Diameter Tolerance: +0.005/-0.010
  • RPM Limits: 20000 RPM
  • Shaft Diameter: 1 Inch
  • Thickness: 0.042 Inch
  • Thickness Tolerance: +/-0.002
  • Type: Stamped Standard Duty
