Winzer

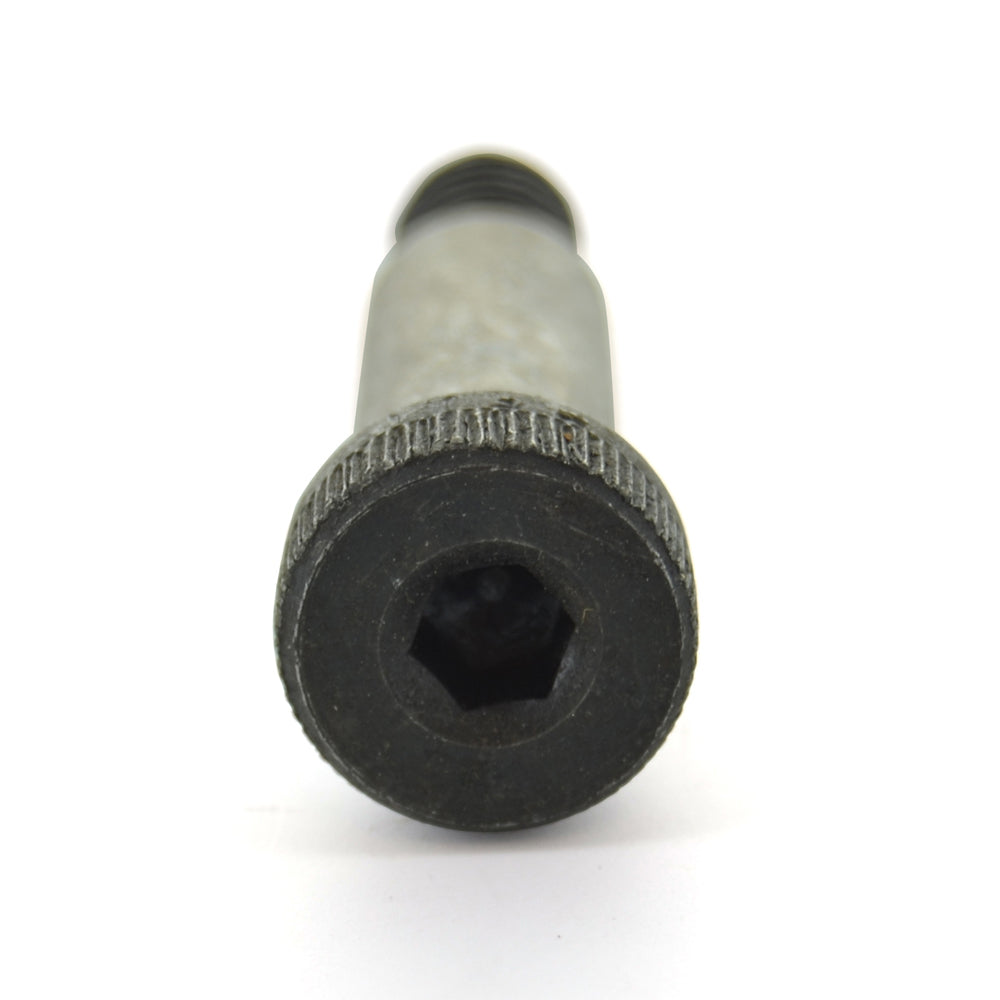

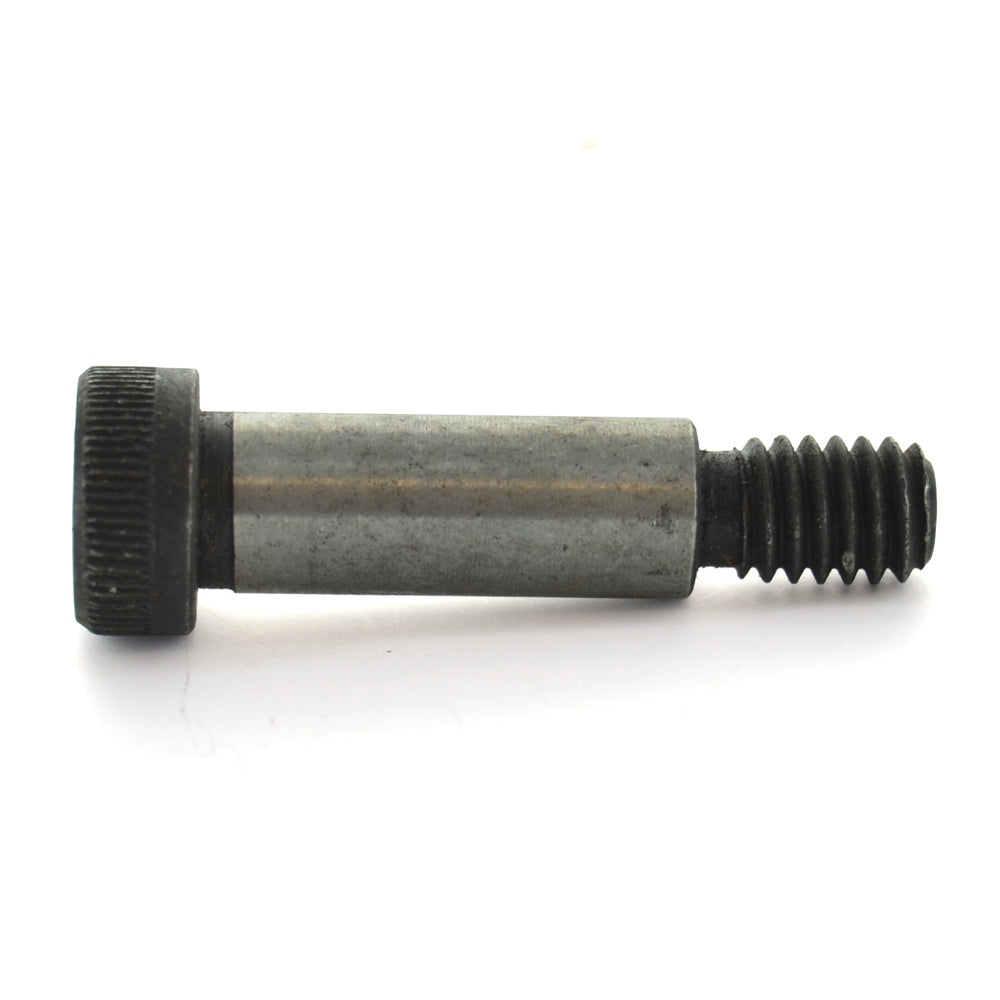

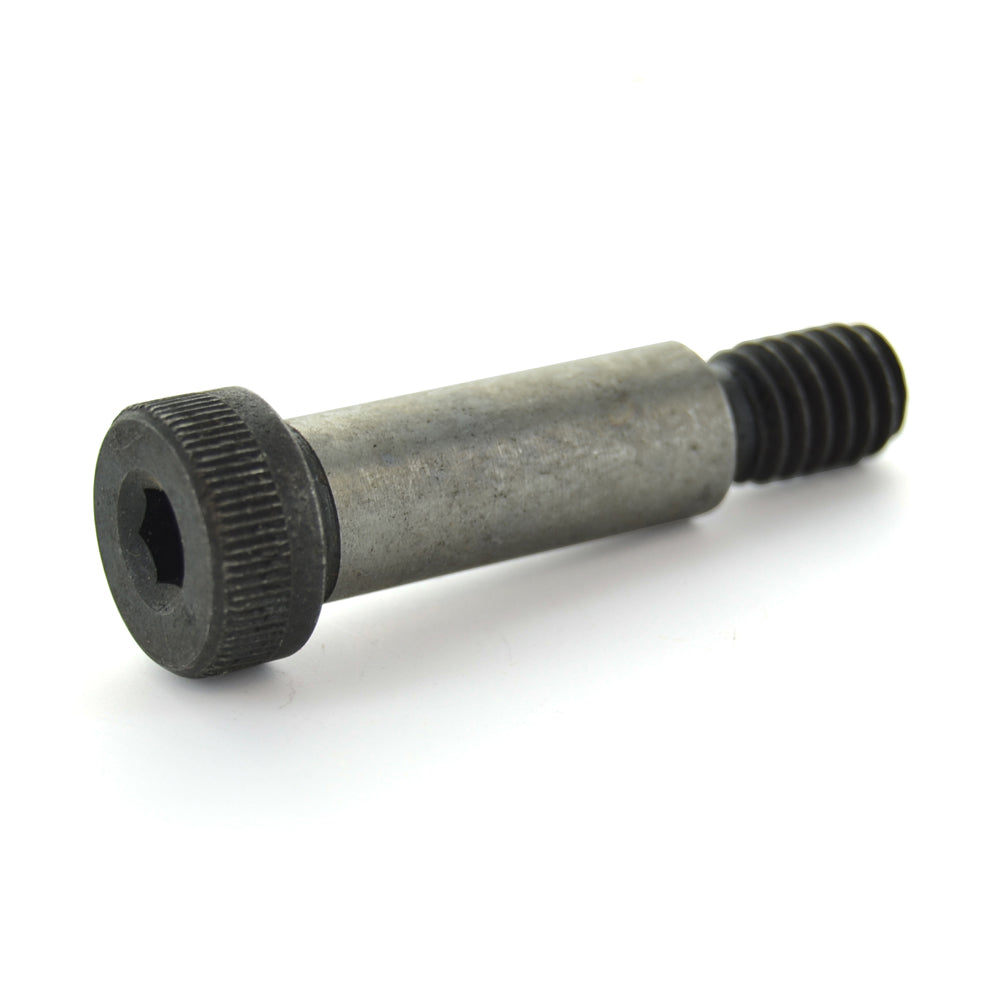

1 Inch X 4 Inch Black Oxide Astm A574 Socket Head Shoulder Screw

Item 150.1.4

We Stand Behind Our Products

If you are not satisfied, return within 90 days for a full refund.

Description

Shoulder screws also called shoulder bolts allow for rotation of pulleys linkages and other moving parts in engines and mechanical applications.

  • Diameter: 1
  • Drive Size: 1/2
  • Drive Type: Internal Hex
  • Finish: Black Oxide
  • Head Diameter: 1.287 - 1.312 Inch
  • Head Height: 0.610 - 0.625 Inch
  • Head Style: Socket
  • Industry Standard: ASME/ANSI B18.3
  • Item: Shoulder Screw
  • Key Size: 1/2 Inch
  • Length: 4
  • Material: Heat-Treated Alloy Steel
  • Measurement: Inch
  • Origin: Imported
  • Proof Load: 140000 psi
  • Shoulder Diameter: 1 Inch
  • Shoulder Length: 4 Inch
  • Specification: ASME/ANSI B18.3 ASTM A574
  • Tensile Strength : 180000 psi
  • Thread Diameter: 3/4 Inch
  • Thread Length: 1 Inch
  • Thread Type: Coarse
  • Threads Per Inch: 10

Photographs are representational and may not be size accurate.

Key Specifications
Drive Type Internal Hex
Finish Black Oxide
Head Style Socket
Length 1 Inch
Material Alloy Steel
Measurement Inch
Thread Type Coarse
