Winzer

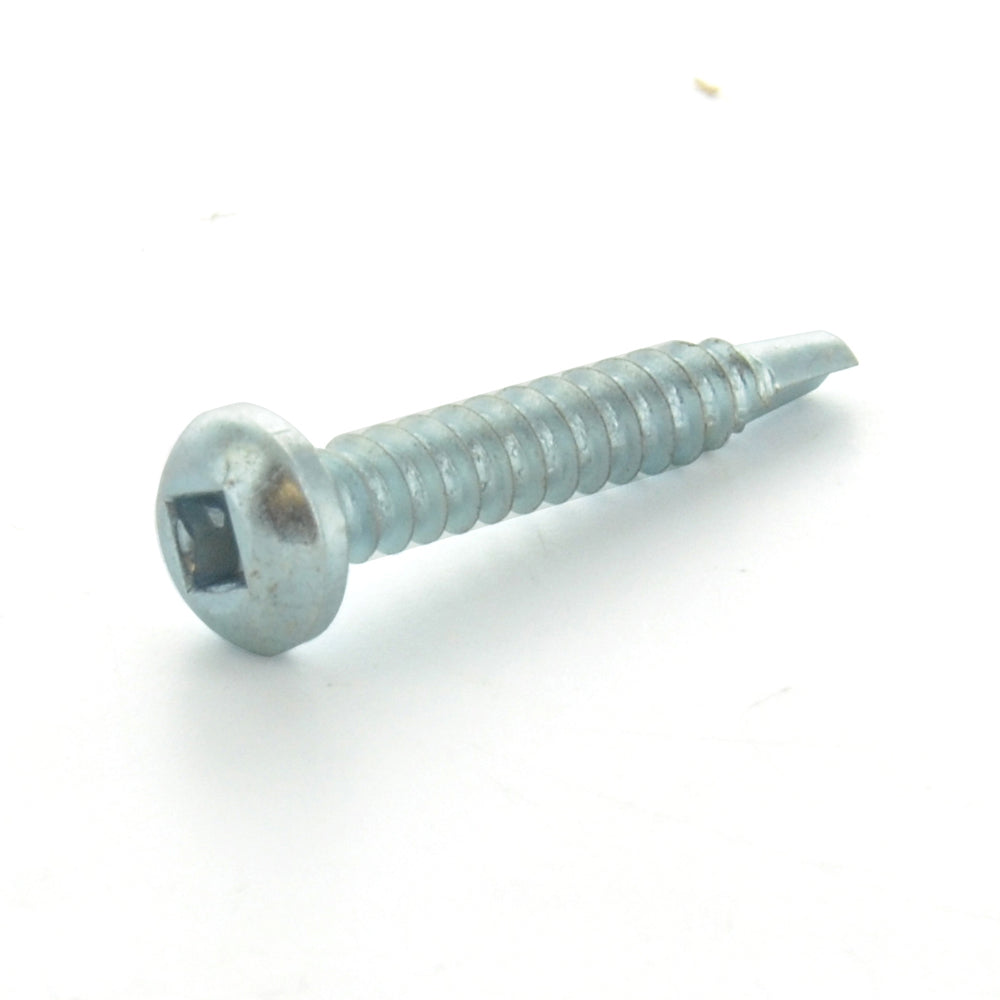

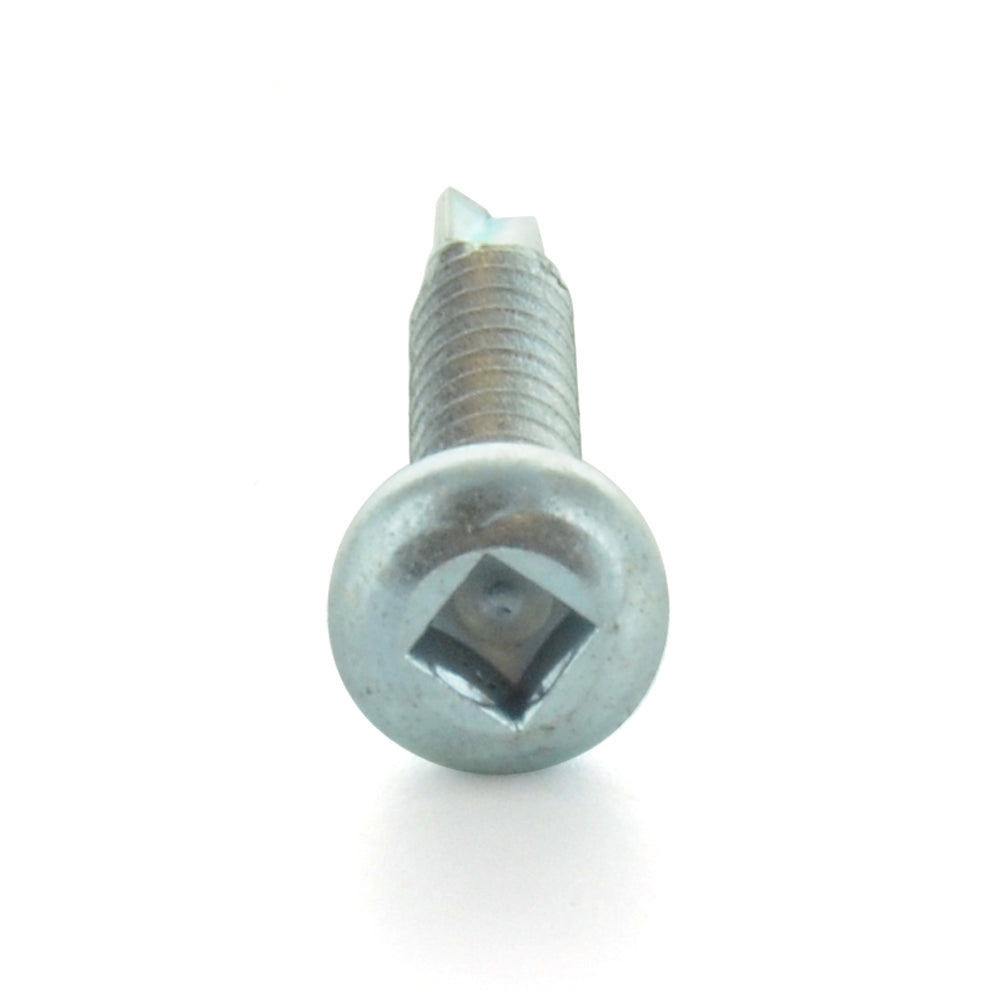

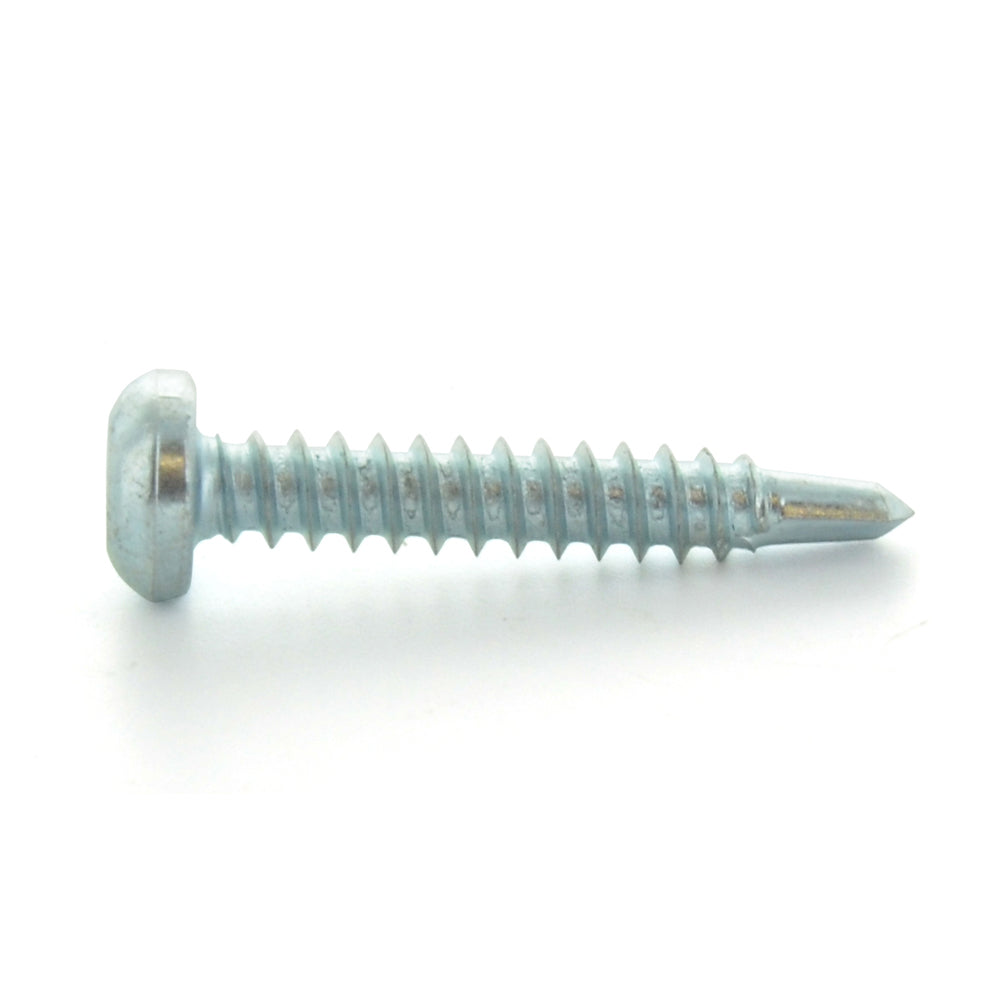

#10-16 x 1 Inch Zinc Plated Steel #3 Point Pan Head Self-Drilling Tek Screw

Item 124.01.10.1

We Stand Behind Our Products

If you are not satisfied, return within 90 days for a full refund.

Description

Self drilling screws also known as TEK screws have a tip to cut through material and eliminate the need to drill a pilot hole. An indented hex washer head offers advantages of hex head plus greater protection to mating surface. Stainless steel 400 gives these screws the added benefits of higher strength and wear resistance. The passivated finish makes them much more resistant to corrosion than the original finish. These screws are typically used in metal to metal applications.

  • Origin: Imported
  • Case Hardened to RC 52-58 (Core Hardness to RC 32-40)
  • Drive Type: Square
  • Finish: Zinc
  • Head Diameter: 0.357 - 0.373 Inch
  • Head Height: 0.099 - 0.110 Inch
  • Head Style: Pan
  • Industry Standard: ASME/ANSI B18.6.4 SAE J78
  • Item: Self-Drilling TEK Screw
  • Length: 1 Inch
  • Material: Steel
  • Measurement: Inch
  • Origin: Imported
  • Point Type: #3
  • Recess Across Flat: 0.112 Inch
  • Recess Penetration Gagging Depth: 0.060 - 0.075 Inch
  • Specification: ASME/ANSI B18.6.4 SAE J78 SAE J933
  • Threads Per Inch: 16

Photographs are representational and may not be size accurate.

Key Specifications
Diameter #10
Drive Type Square
Finish Zinc
Head Style Pan
Length 1 Inch
Material Steel
Measurement Inch
