Photographs are representational and may not be size accurate.

Winzer

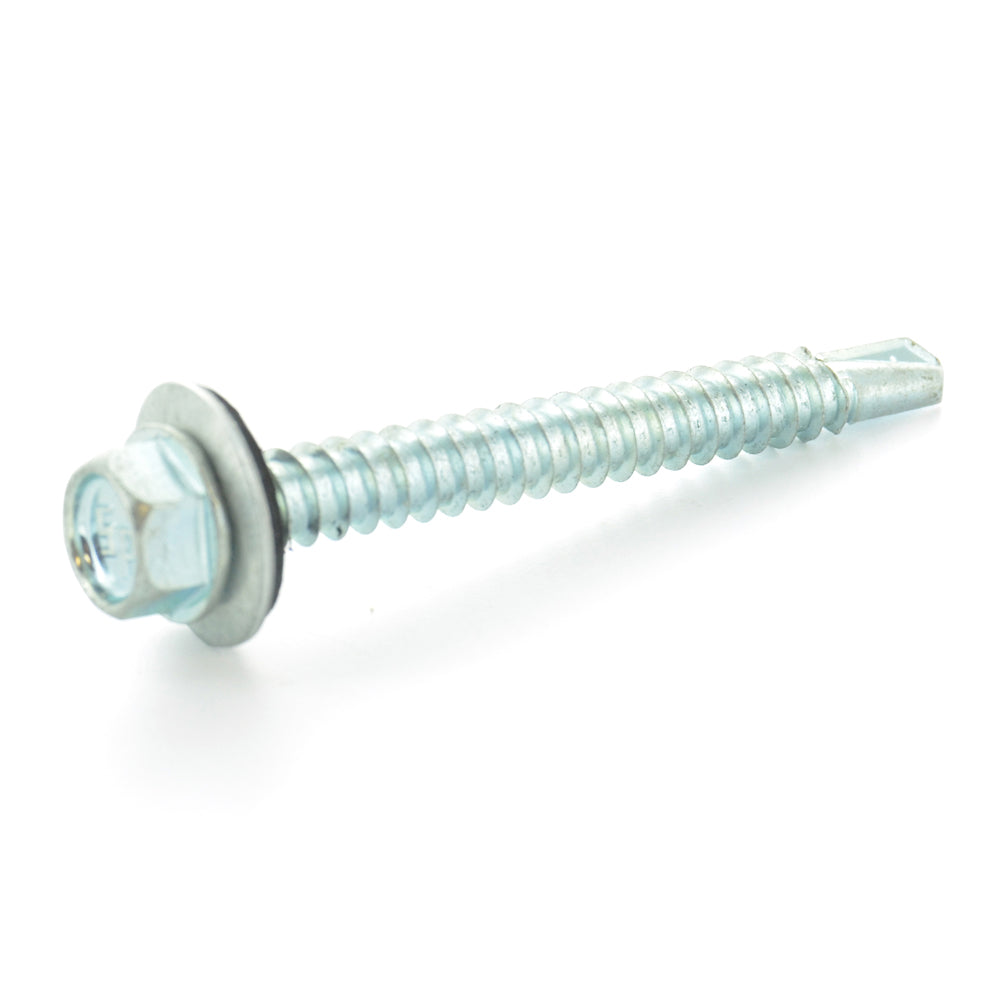

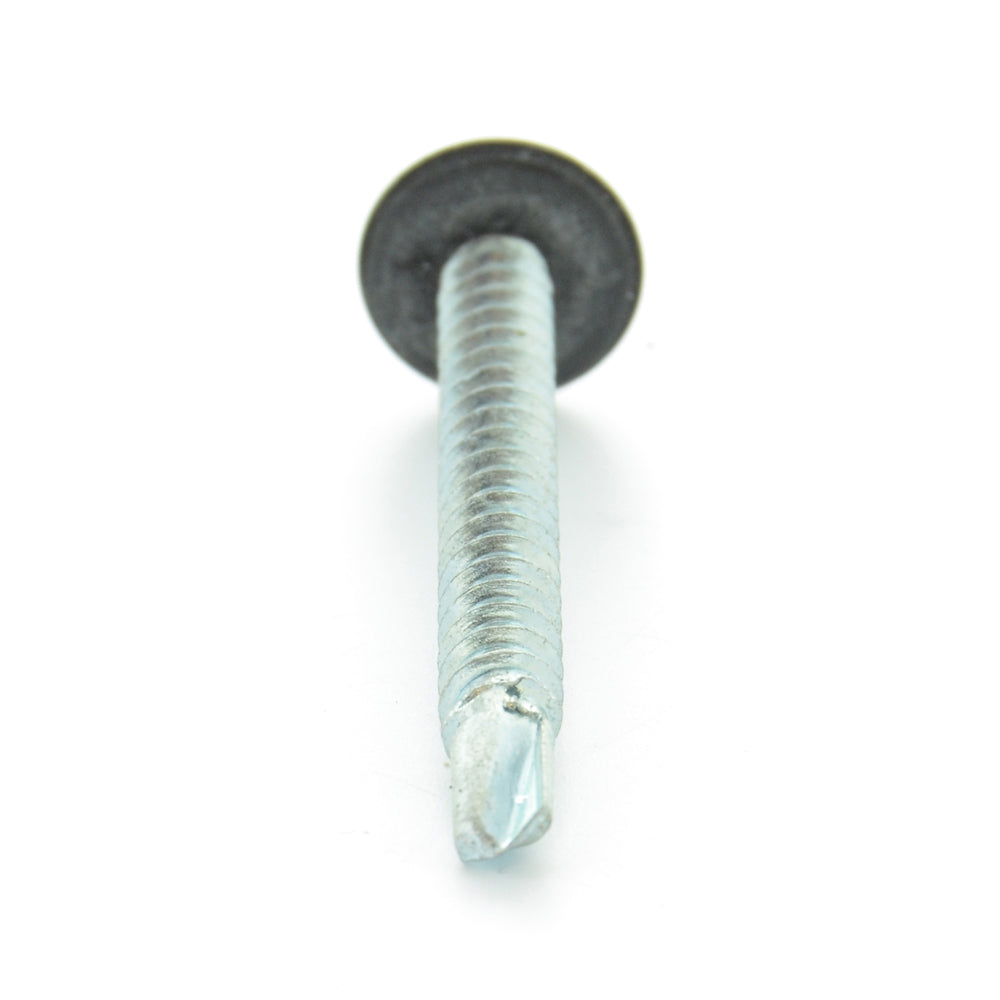

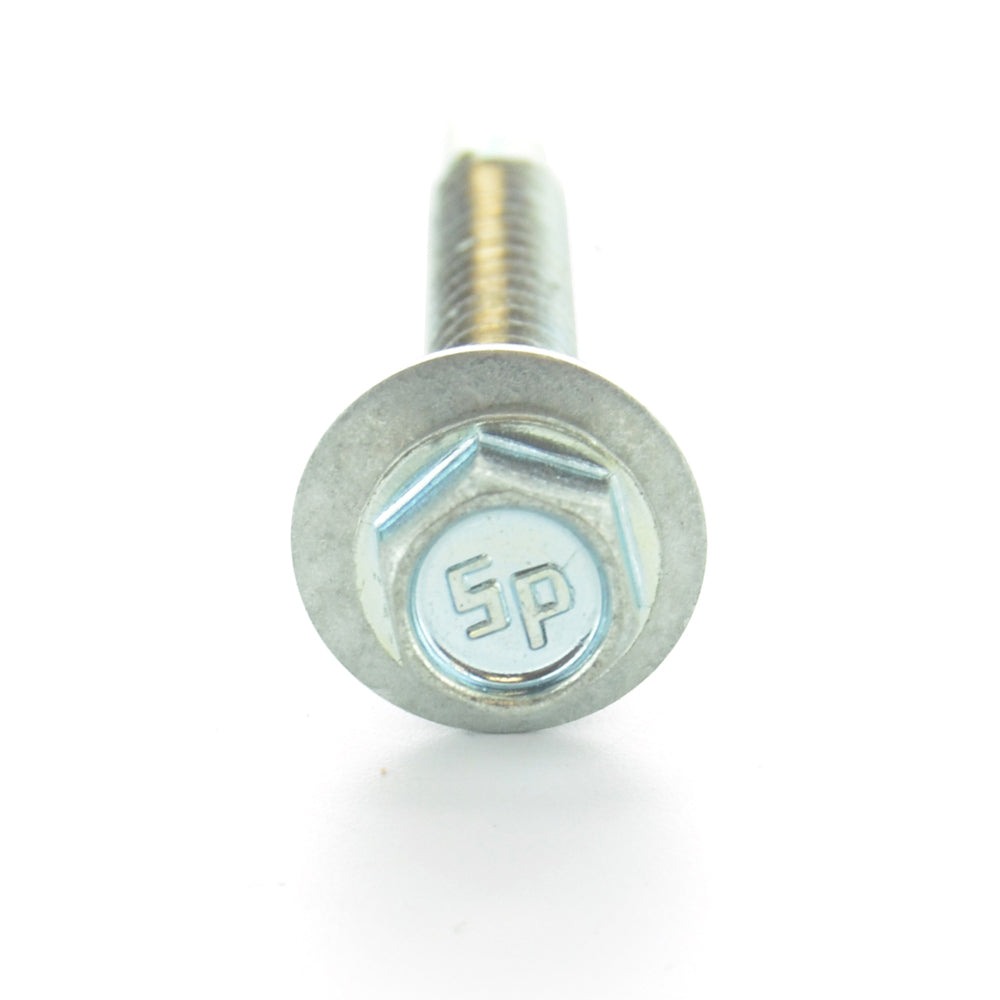

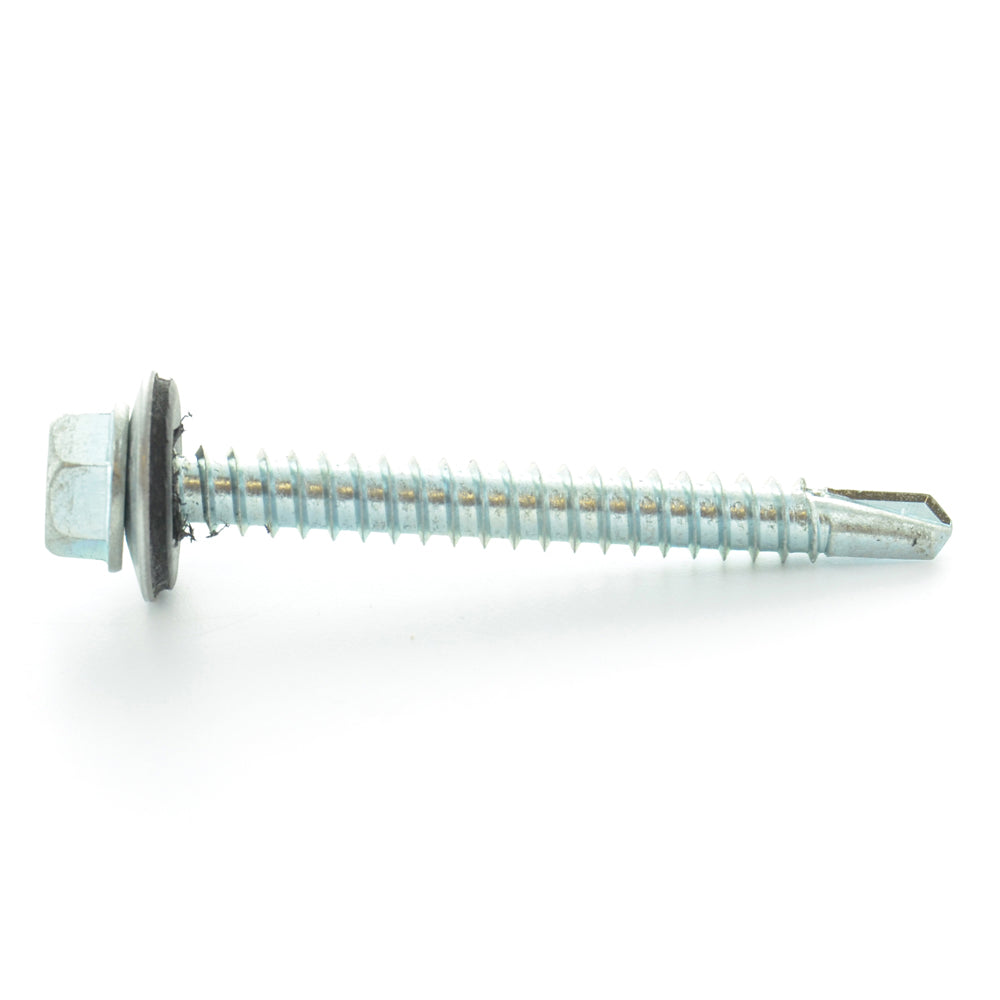

#10-16 x 2" 410 Stainless Steel #3 Point Indented Hex Washer Head Self-Drilling Tek Screw W Bonded Neoprene Washer

Item 123.0.010.2

We Stand Behind Our Products

If you are not satisfied, return within 90 days for a full refund.

Description

Self drilling screws also known as TEK screws have a tip to cut through material and eliminate the need to drill a pilot hole. An indented hex washer head offers advantages of hex head plus greater protection to mating surface. Stainless steel 400 gives these screws the added benefits of higher strength and wear resistance. The passivated finish makes them much more resistant to corrosion than the original finish. These screws are typically used in metal to metal applications.

  • Origin: Imported
  • Attaches metal to metal
  • 1/2 Inch O.D. Bonded Neoprene Washer
  • Drill Capacity: 0.035 - 0.176 Inch
  • Drive Type: 0.016 Inch
  • Finish: 410 SS
  • Head Height: 0.105 - 0.120 Inch
  • Head Height Max: .120
  • Head Style: Indented Hex Washer
  • Industry Standard: ASME/ANSI B18.6.4 SAE J78
  • Item: Self-Drilling TEK Screw with Bonded Neoprene Washer
  • Length: 2 Inch
  • Material: Steel
  • Measurement: Inch
  • Origin: Imported
  • Point Type: #3
  • Specification: ASME/ANSI B18.6.4 SAE J78 SAE J933
  • Threads Per Inch: 16
  • Washer Diameter: 0.384 - 0.414 Inch
  • Washer Thickness: 0.019 - 0.031 Inch
  • Width Across Corner: 0.340 Inch

WARNING: Cancer and Reproductive Harm — www.P65Warnings.ca.gov

Photographs are representational and may not be size accurate.

Key Specifications
Diameter #10
Finish Zinc
Head Style Hex Washer
Length 2 Inch
Material Steel
Measurement Inch
