Winzer

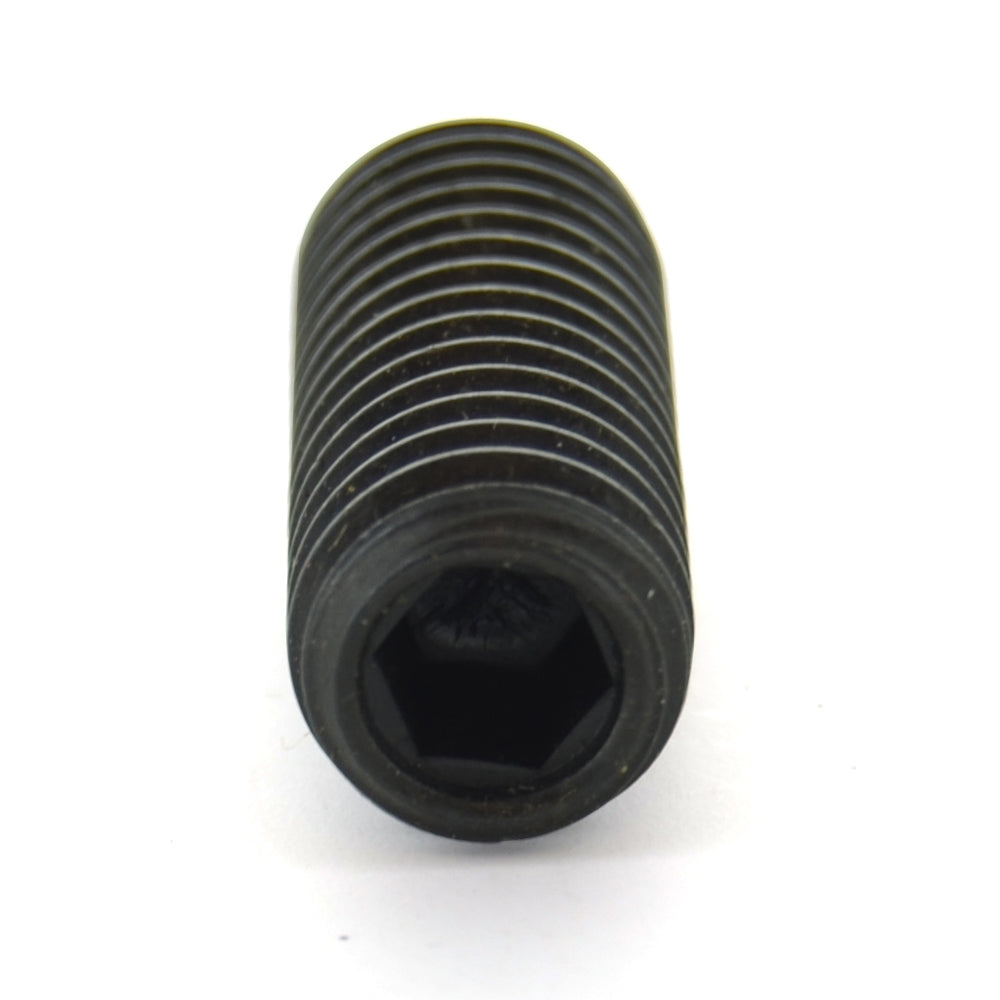

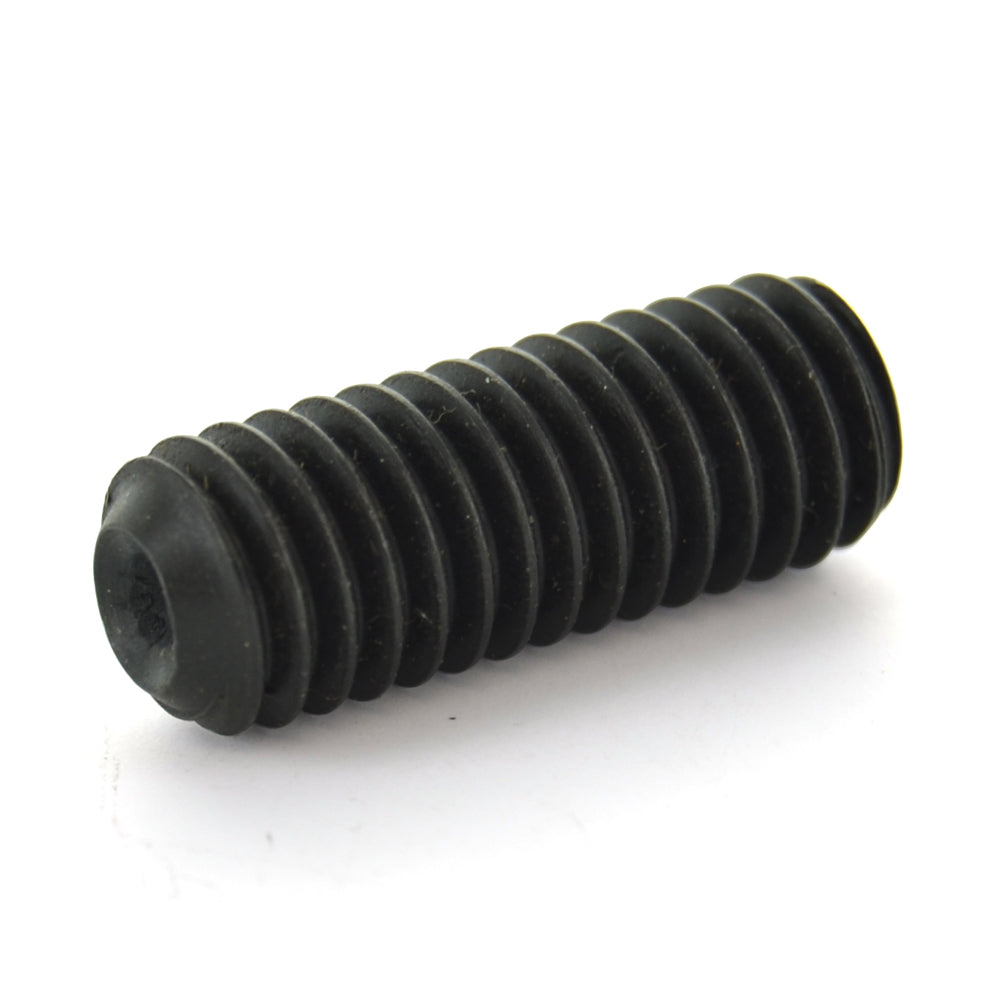

#10-24 x 3/16 Inch Coarse Black Oxide Heat-Treated Alloy Steel Cup Point Socket Head Set Screw USA

Item 161.10.316

We Stand Behind Our Products

If you are not satisfied, return within 90 days for a full refund.

Description

Cup point set screws feature a hex drive at one end and a cup-shaped indentation at the other. The most commonly used set screw head style the thin edge of the cup end digs into the contact surface for high holding power. It is useful for fast permanent and semi-permanent placement in applications where some indentation left by the cup end is acceptable.

  • Made in USA
  • DFAR Compliant
  • Drive Type: Internal Hex
  • Finish: Black Oxide
  • Head Style: Socket
  • Industry Standard: ASME/ANSI B18.3
  • Item: Set Screw
  • Key Engagement: 0.100 Inch
  • Length: 3/16 Inch
  • Material: Heat-Treated Alloy Steel
  • Measurement: Inch
  • Origin: USA
  • Point Diameter: 0.088 - 0.102 Inch
  • Point Type: Cup
  • Specification: ASME/ANSI B18.3
  • Tensile Strength : 180000 psi
  • Thread Type: Coarse
  • Threads Per Inch: 24
  • Type: Full Threaded

Photographs are representational and may not be size accurate.

Key Specifications
Diameter #10
Drive Type Internal Hex
Finish Black Oxide
Length 3/16 Inch
Measurement Inch
Origin USA
Point Type Cup Point
Thread Type Coarse
