Winzer

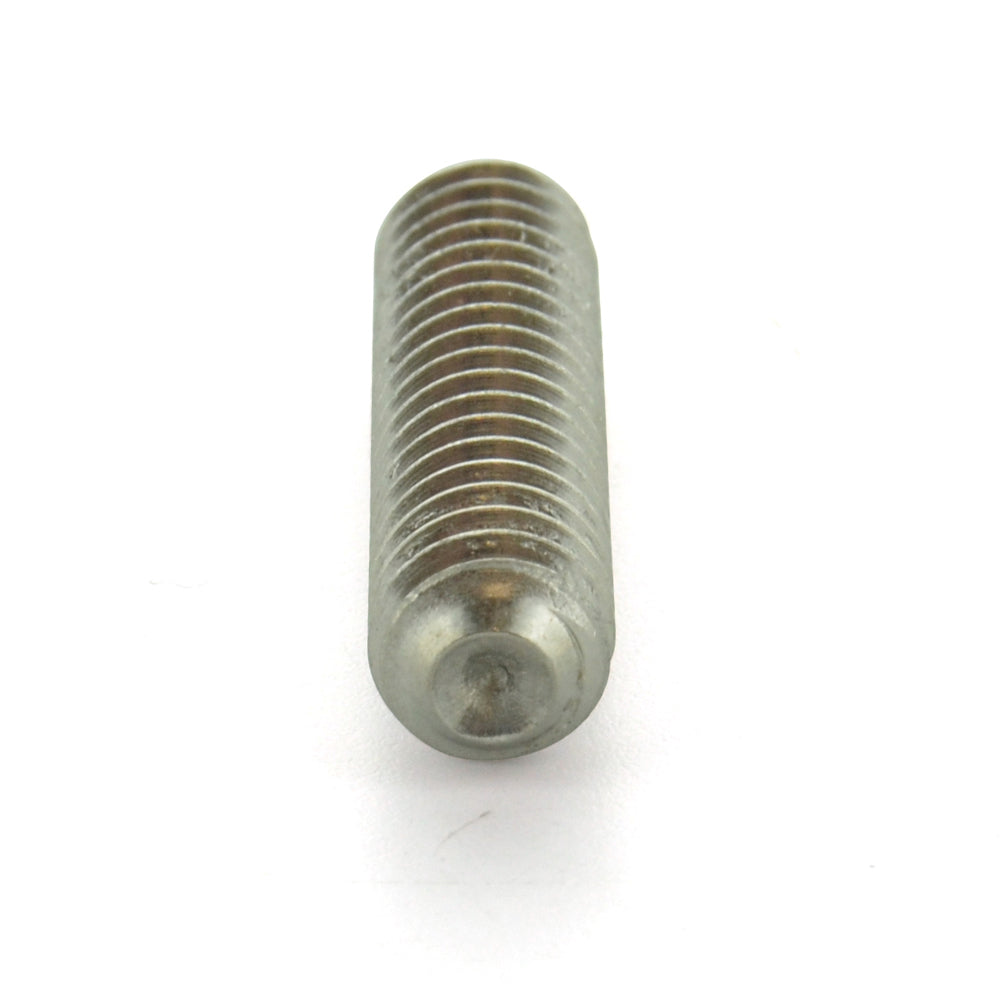

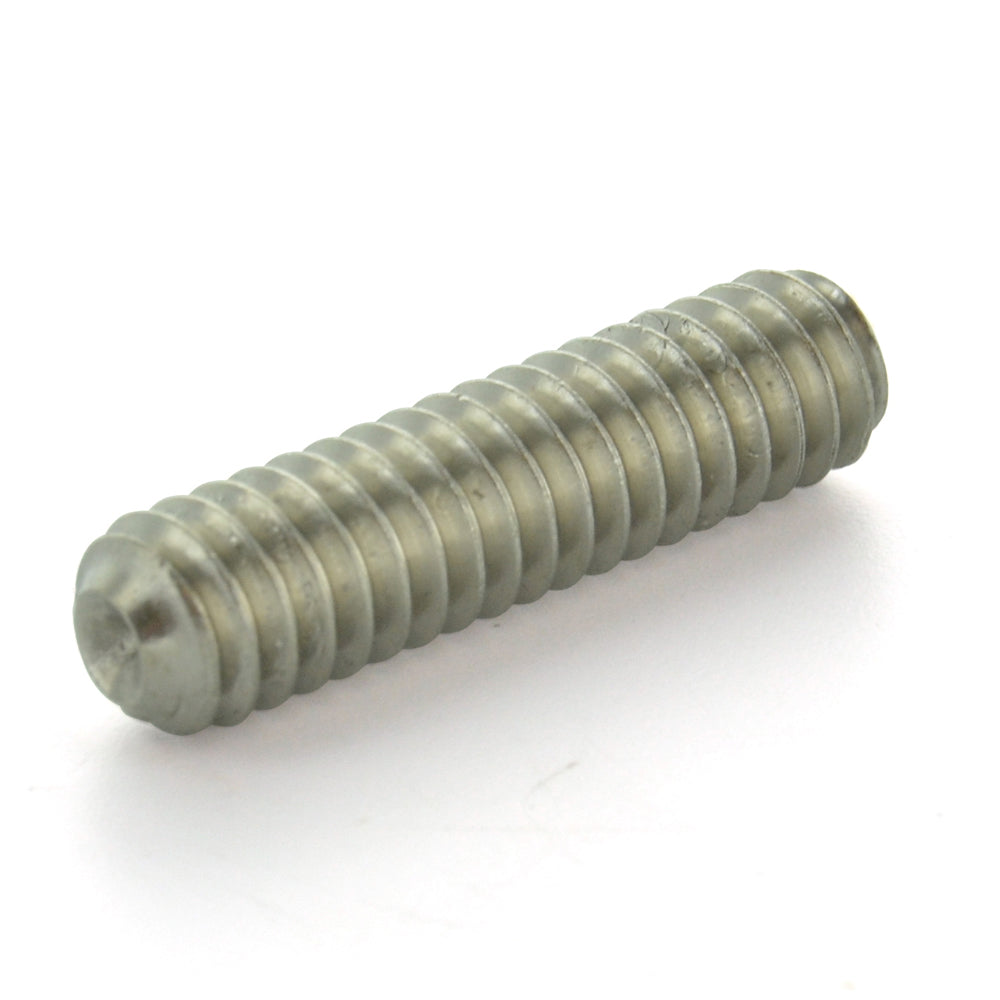

#10-32 x 5/8 Inch Fine Plain 18-8 (A2) Stainless Steel Cup Point Socket Head Set Screw

Item 128.1032.58

We Stand Behind Our Products

If you are not satisfied, return within 90 days for a full refund.

Description

Cup point set screws feature a hex drive at one end and a cup-shaped indentation at the other. The most commonly used set screw head style the thin edge of the cup end digs into the contact surface for high holding power. It is useful for fast permanent and semi-permanent placement in applications where some indentation left by the cup end is acceptable.

  • Origin: Imported
  • Drive Type: Internal Hex
  • Finish: Plain
  • Head Style: Socket
  • Industry Standard: ASME/ANSI B18.3
  • Item: Set Screw
  • Key Engagement: 0.100 Inch
  • Length: 5/8 Inch
  • Material: 18-8 (A2) Stainless Steel
  • Measurement: Inch
  • Origin: Imported
  • Point Diameter: 0.088 - 0.102 Inch
  • Point Type: Cup
  • Specification: ASME/ANSI B18.3 ASTM F880
  • Tensile Strength : 145000 psi
  • Thread Type: Fine
  • Threads Per Inch: 32
  • Type: Full Threaded

Photographs are representational and may not be size accurate.

Key Specifications
Diameter #10
Drive Type Internal Hex
Length 5/8 Inch
Material 18-8 Stainless Steel
Measurement Inch
Point Type Cup
Thread Type Fine
