Winzer

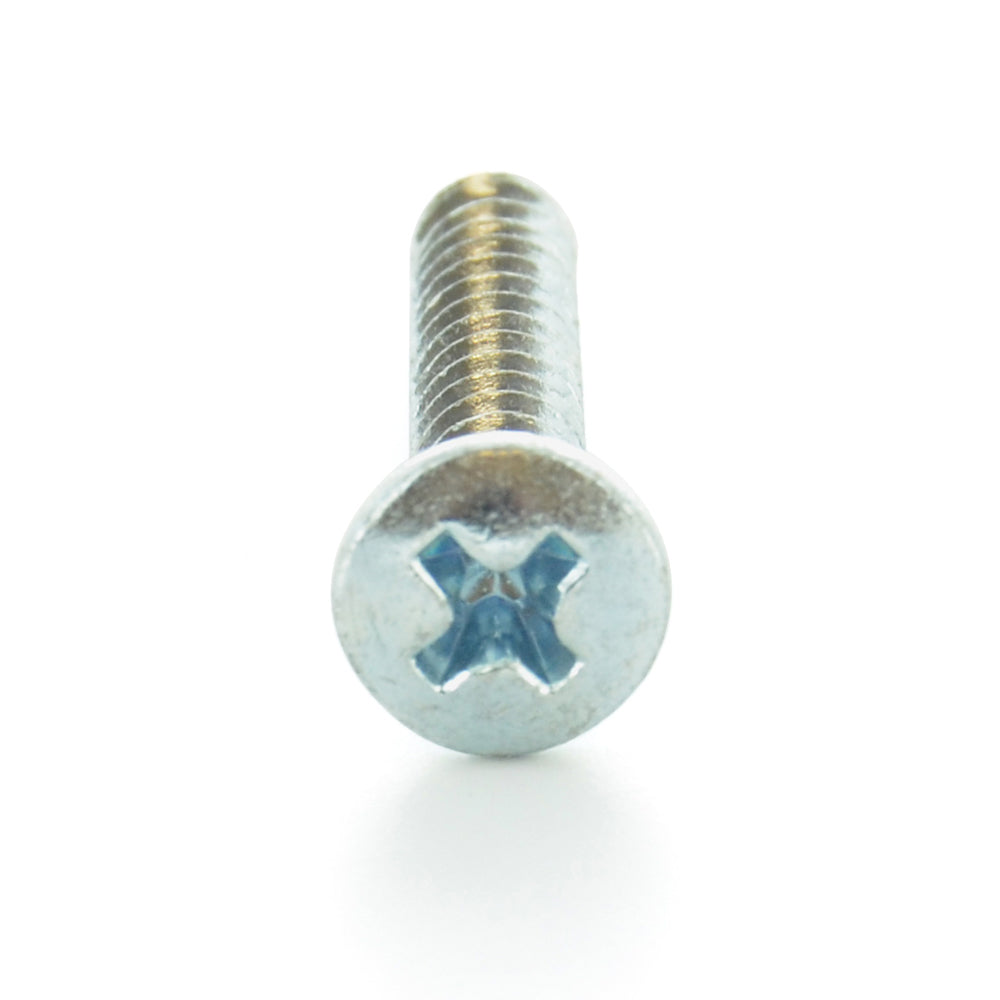

#10 x 1-3/4 Inch Zinc Plated Low Carbon Steel Oval Head Type-Ab Self-Tapping Sheet Metal Screw

Item 117.48.45

We Stand Behind Our Products

If you are not satisfied, return within 90 days for a full refund.

Description

Oval-head sheet metal screws are self-tapping with a rounded top and are partly countersunk with about half of the screw head above the surface. Used on thin materials like sheet metal or wood veneer their coarse threads allow them to be continually fastened and unfastened for maintenance tasks.

  • Origin: Imported
  • Drive Type: Phillips
  • Finish: Zinc
  • Head Diameter: 0.333 - 0.362 Inch
  • Head Height: 0.176 Inch
  • Head Style: Oval
  • Industry Standard: ASME/ANSI B18.6.4 SAE J78
  • Item: Self-Tapping Sheet Metal Screw
  • Length: 1-3/4 Inch
  • Material: Low Carbon Steel
  • Measurement: Inch
  • Origin: Imported
  • Point Type: Type-AB
  • Recess Diameter: 0.202 Inch
  • Recess Penetration Gagging Depth: 0.102 - 0.126 Inch
  • Specification: ASME/ANSI B18.6.4 SAE J78 SAE J933
