Winzer

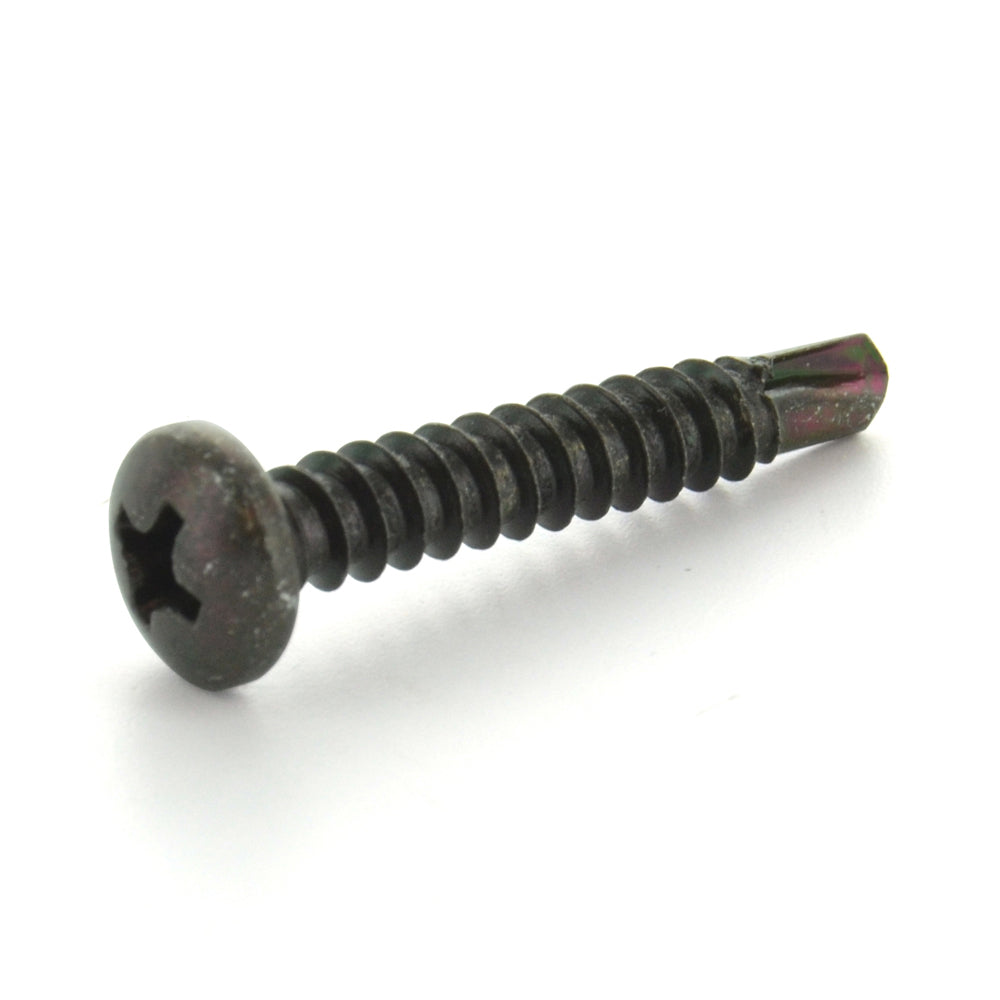

#10 x 1 Inch Black Oxide Hardened Steel #2 Point Pan Head Self-Drilling Tek Screw

Item 125.10.1

We Stand Behind Our Products

If you are not satisfied, return within 90 days for a full refund.

Description

Square Drive Pan head self drilling screws have a self driller cutting (TEK) point to pierce through 20 to 14 gauge metals. The heads use a square bit #1 through #3 driver depending on the size of the screw. These screws are used in the exterior elements. Square Drive screws are preferred by some over traditional Phillips Drives because the Square Drive allows for a higher torque installation reduces cam out and reduces screw stripping when compared to Phillips.

  • Origin: Imported
  • Drive Type: Phillips
  • Finish: Black Oxide
  • Head Diameter: 0.357 - 0.373 Inch
  • Head Height: 0.099 - 0.110 Inch
  • Head Height Max: .110
  • Head Style: Pan
  • Industry Standard: ASME/ANSI B18.6.4 SAE J78
  • Item: Self-Drilling TEK Screw
  • Length: 1 Inch
  • Material: Hardened Steel
  • Measurement: Inch
  • Origin: Imported
  • Point Type: 3.2 mm
  • Recess Diameter: 0.192 Inch
  • Recess Penetration Gagging Depth: 0.089 - 0.113 Inch
  • Specification: ASME/ANSI B18.6.4 SAE J78 SAE J933

Photographs are representational and may not be size accurate.

Key Specifications
Diameter #10
Drive Type Square
Finish Black Oxide
Head Style Pan
Length 1 Inch
Material Hardened Steel
Measurement Inch
