Photographs are representational and may not be size accurate.

Winzer

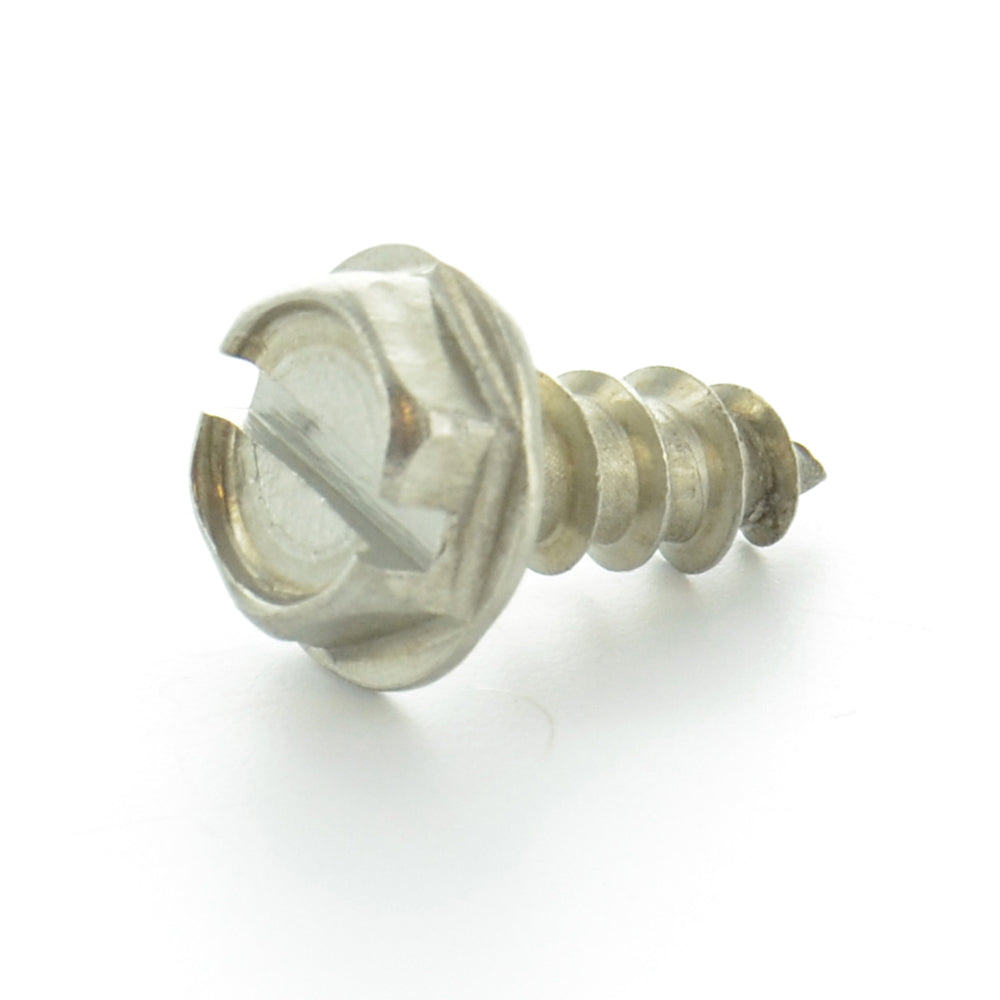

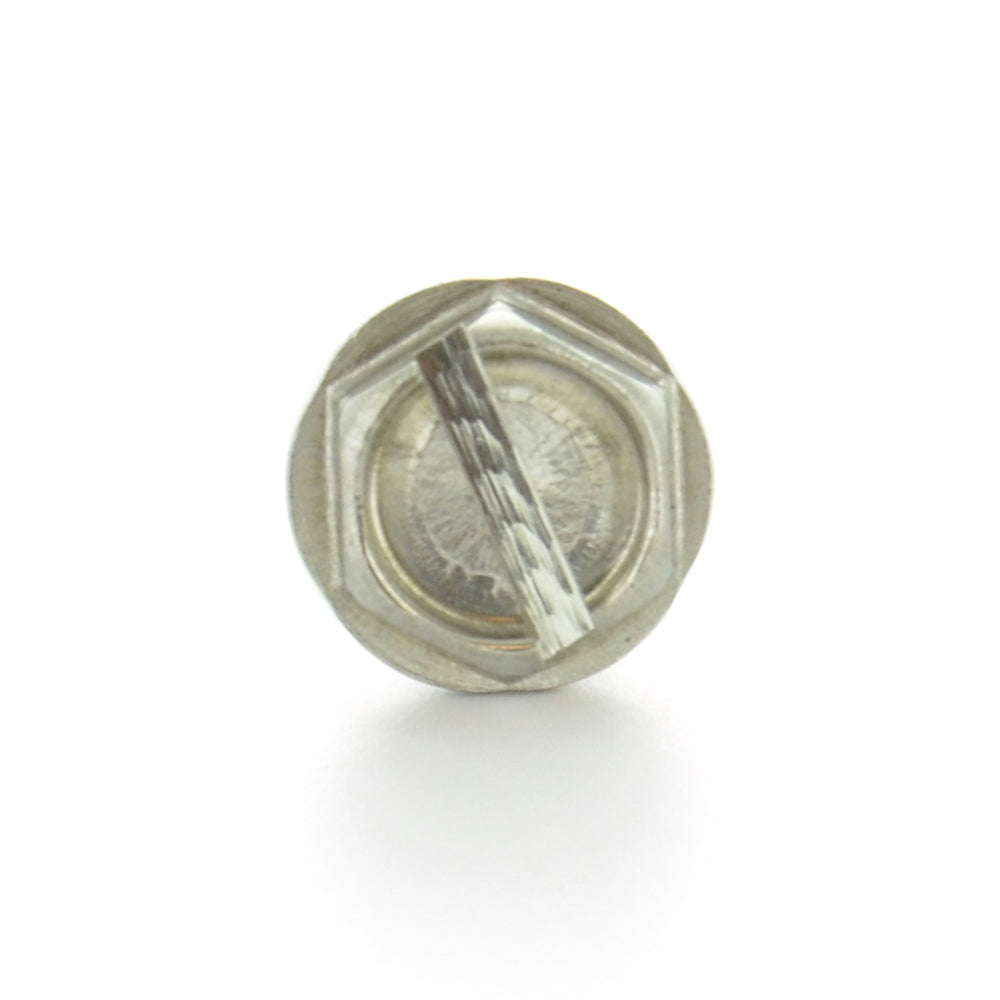

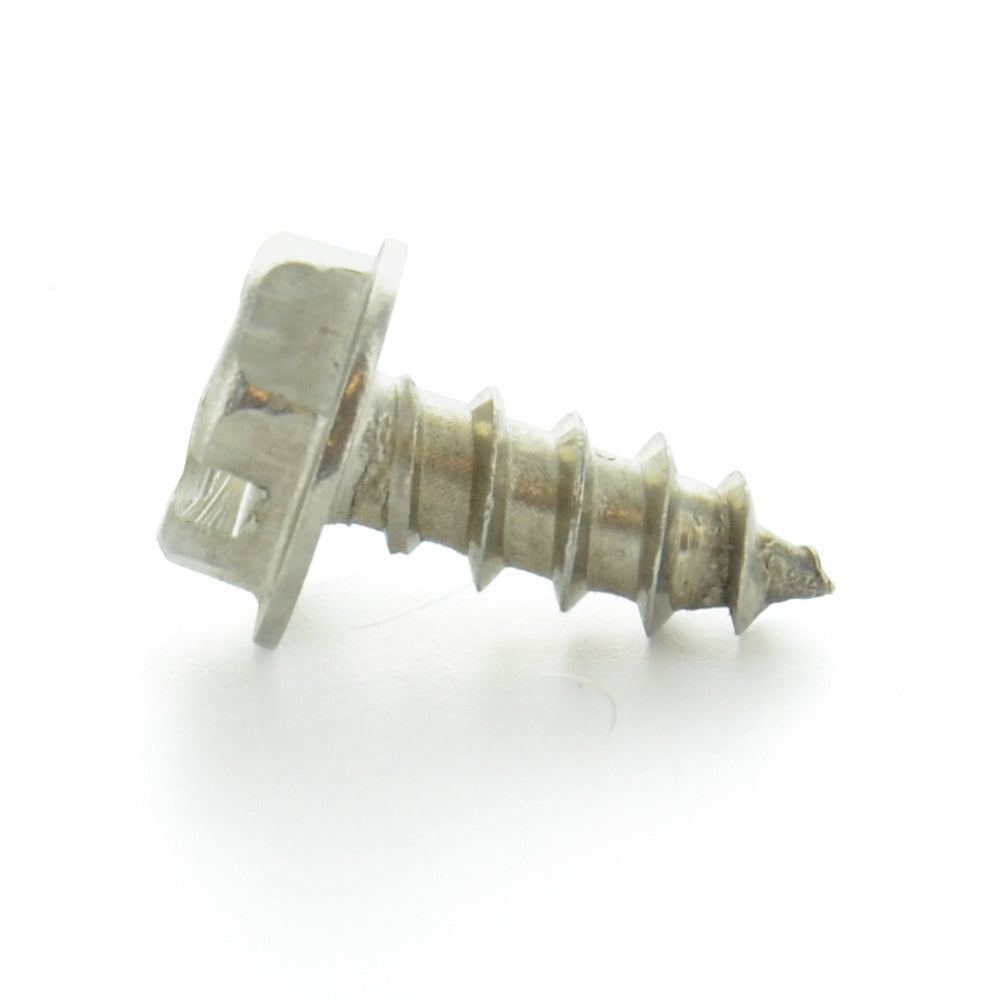

#10 x 3/4 Inch Plain 316 (A4) Stainless Steel Indented Hex Washer Head Type-Ab Self-Tapping Sheet Metal Screw

Item 225.09.10.34

We Stand Behind Our Products

If you are not satisfied, return within 90 days for a full refund.

Description

A/AB Sheet Metal Screws- Sheet metal screws are engineered for connecting thinner metal objects to one another or connecting metal to wood plastic and other materials. Many sheet metal screws can start their own hole. Type A sheet metal screws have wider spaced threads for self-starting in thinner metal or plywood.Type AB sheet metal screws have more threads per inch and are more effective in brittle materials than Type A.

  • Origin: Imported
  • Finish: Plain
  • Head Height: 0.105 - 0.120 Inch
  • Head Style: Indented Hex Washer
  • Industry Standard: ASME/ANSI B18.6.4 SAE J78
  • Item: Self-Tapping Sheet Metal Screw
  • Length: 3/4 Inch
  • Material: 316 (A4) Stainless Steel
  • Measurement: Inch
  • Origin: Imported
  • Point Type: Type-AB
  • Slot Depth: 0.057 - 0.080 Inch
  • Slot Width: 0.050 - 0.060 Inch
  • Specification: ASME/ANSI B18.6.4 SAE J78
  • Washer Diameter: 0.384 - 0.414 Inch
  • Washer Thickness: 0.019 - 0.031 Inch
  • Width Across Corner: 0.340 Inch

Photographs are representational and may not be size accurate.

Key Specifications
Diameter #10
Drive Type Slotted Hex
Head Style Hex Washer
Length 3/4 Inch
Material 18-8 Stainless Steel
Measurement Inch
Origin IMPORT
Point Type Drill Point
