Photographs are representational and may not be size accurate.

Winzer

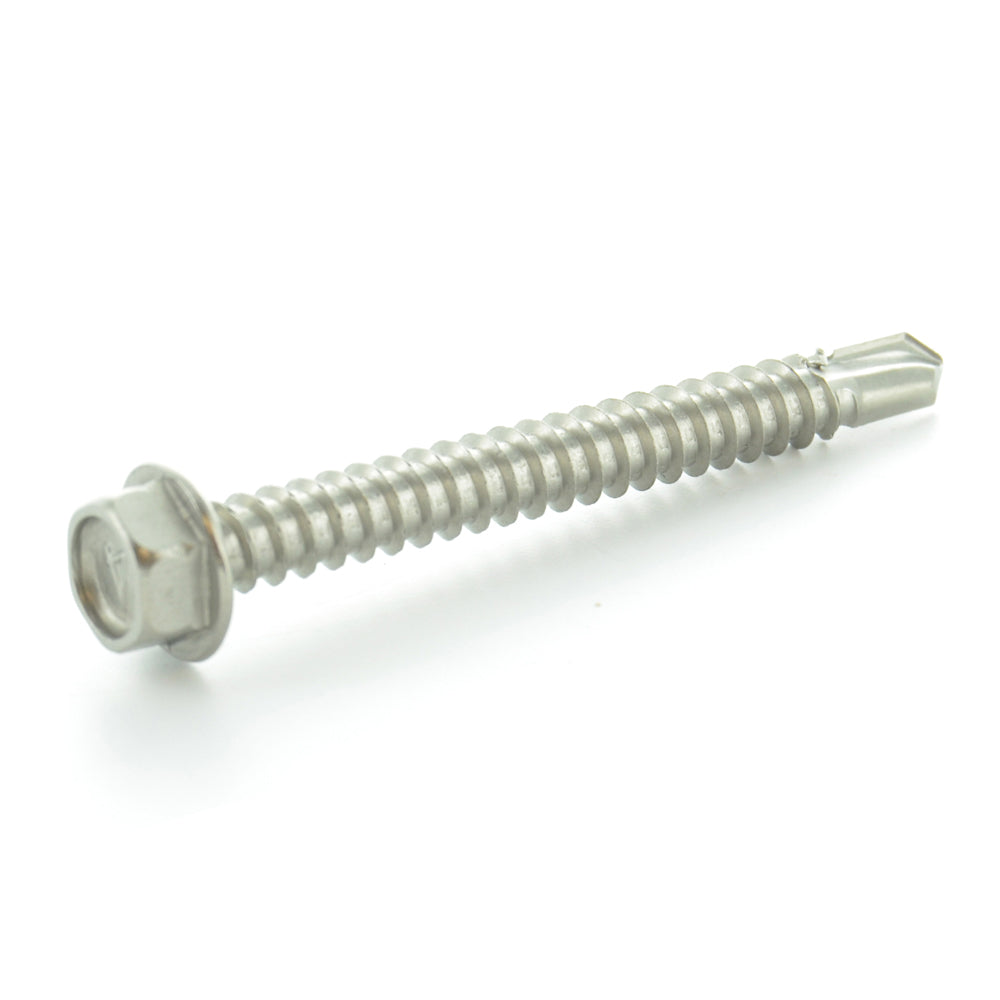

#12-14 x 4 Inch Climaseal Steel #3 Point Indented Hex Washer Head Self-Drilling Tek Screw

Item 123.02.12.4

We Stand Behind Our Products

If you are not satisfied, return within 90 days for a full refund.

Description

Self drilling screws also known as TEK screws have a tip to cut through material and eliminate the need to drill a pilot hole. An indented hex washer head offers advantages of hex head plus greater protection to mating surface. Stainless steel 400 gives these screws the added benefits of higher strength and wear resistance. The passivated finish makes them much more resistant to corrosion than the original finish. These screws are typically used in metal to metal applications.

  • Made in USA
  • Teks Drill Point - Non walking cutting edges pigtail reduction Engages material faster drills with less effort safer installation
  • Climaseal? - Coating provides long life protection
  • Drill & Tap Capacity: 0.036 - 0.210 Inch
  • Tensile Strength: 2778 lb.
  • ICC Approved - ESR-1976
  • Drive Type: 0.016 Inch
  • Finish: Climaseal
  • Head Height: 0.139 - 0.155 Inch
  • Head Height Max: .155
  • Head Style: Indented Hex Washer
  • Industry Standard: ASME/ANSI B18.6.4 SAE J78
  • Item: Self-Drilling TEK Screw
  • Length: 4 Inch
  • Material: Steel
  • Measurement: Inch
  • Origin: USA
  • Point Type: #3
  • Specification: ASME/ANSI B18.6.4 SAE J78 SAE J933
  • Threads Per Inch: 14
  • Washer Diameter: 0.398 - 0.432 Inch
  • Washer Thickness: 0.022 - 0.039 Inch
  • Width Across Corner: 0.340 Inch

Photographs are representational and may not be size accurate.
