Winzer

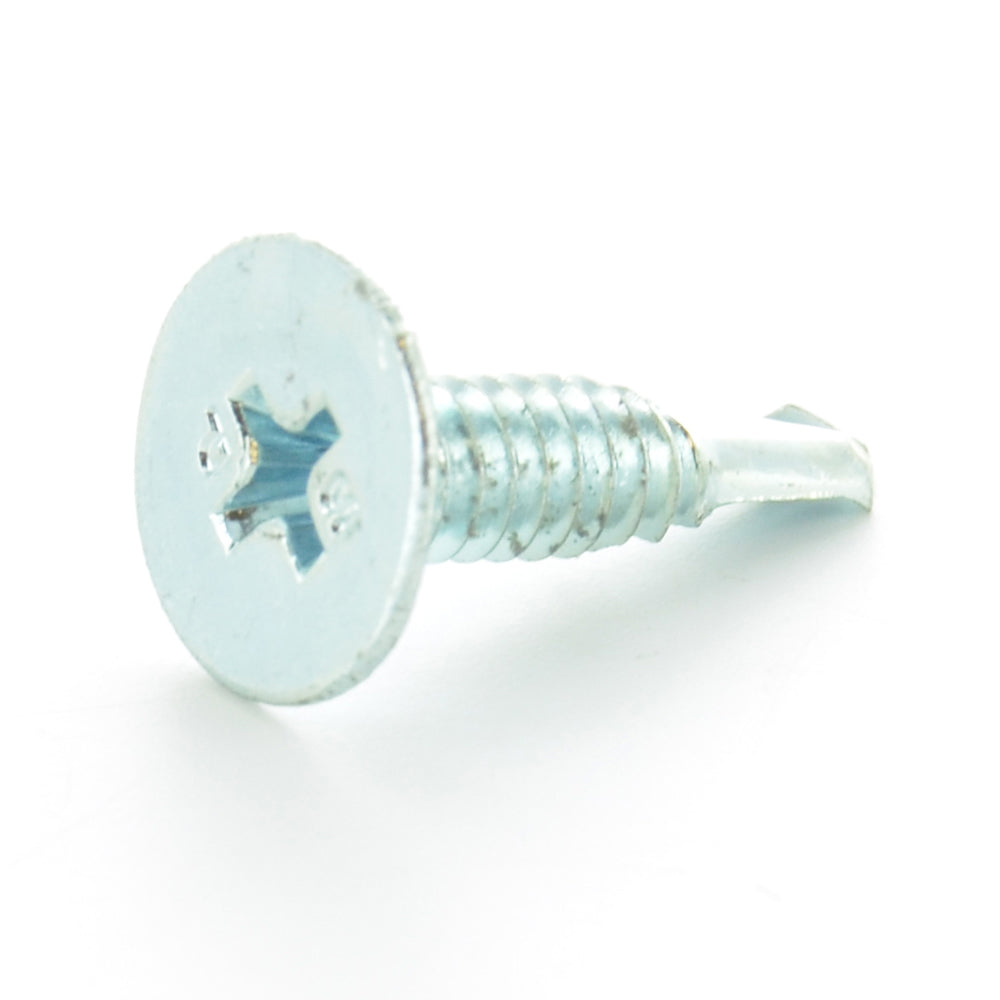

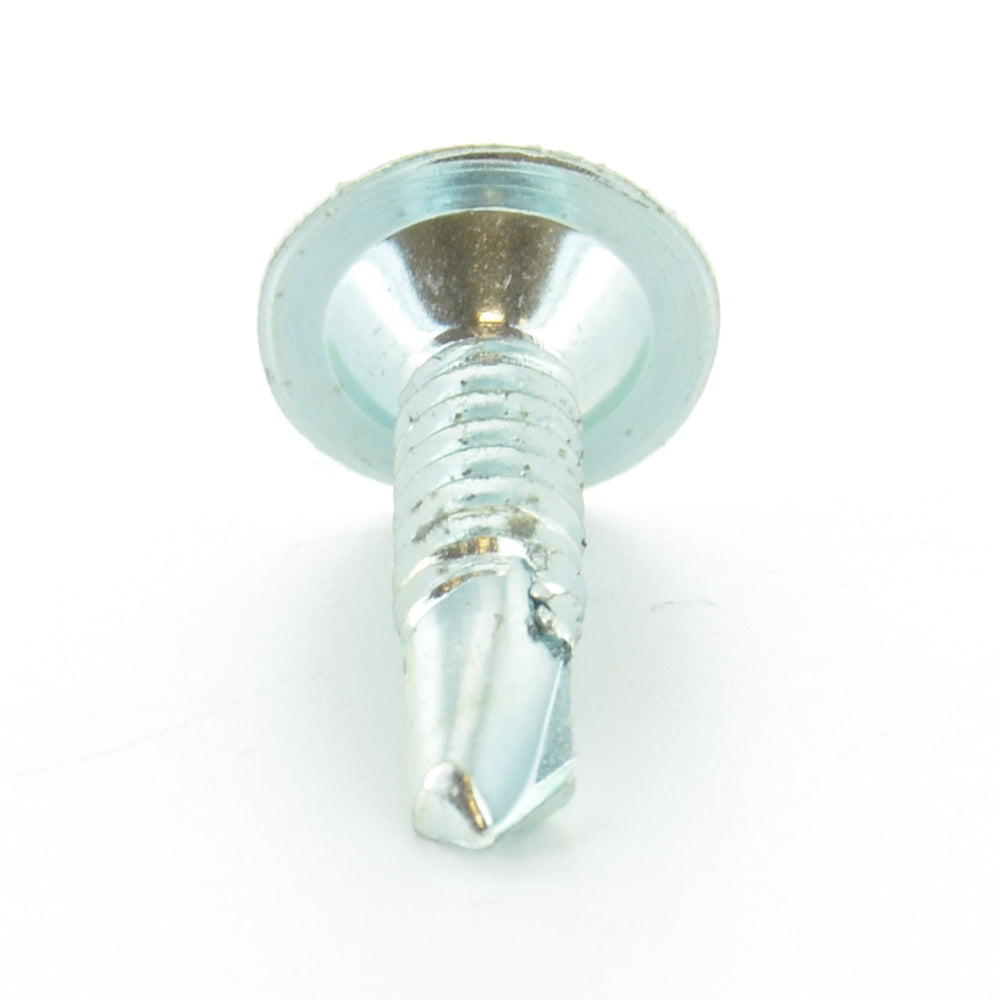

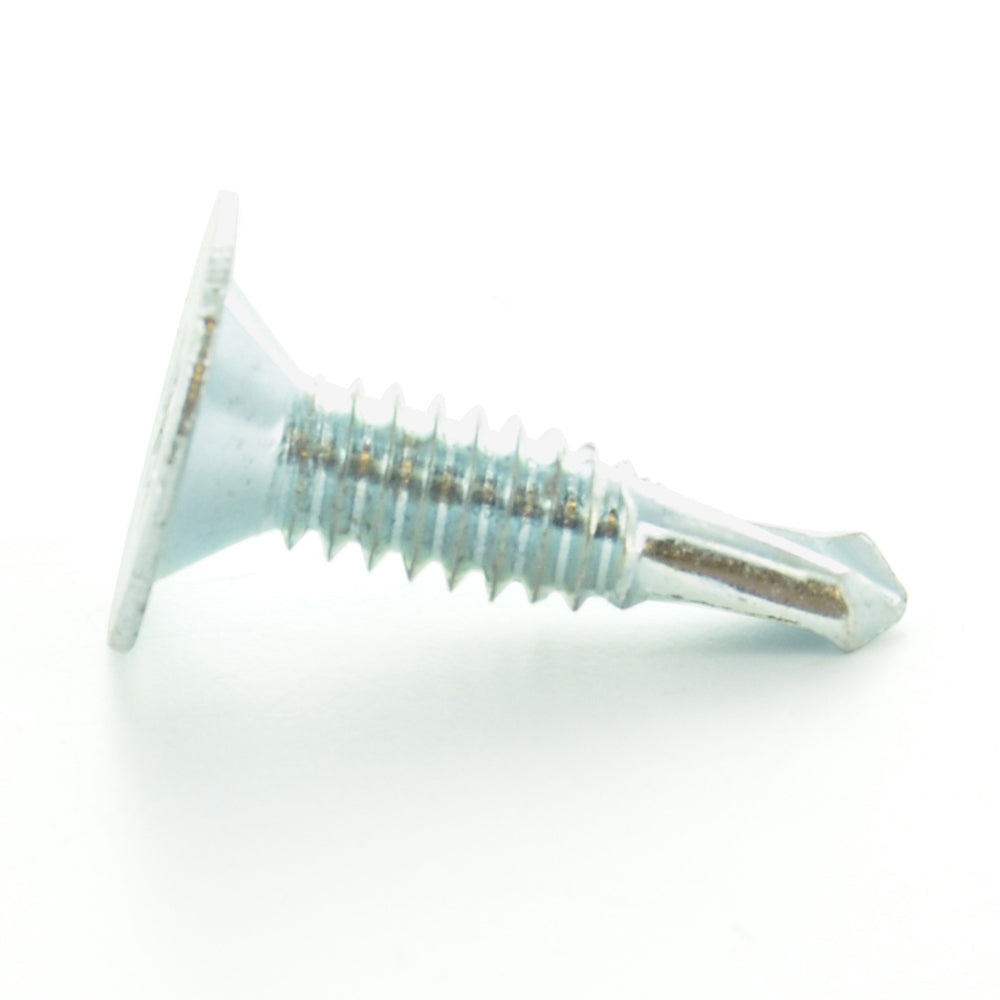

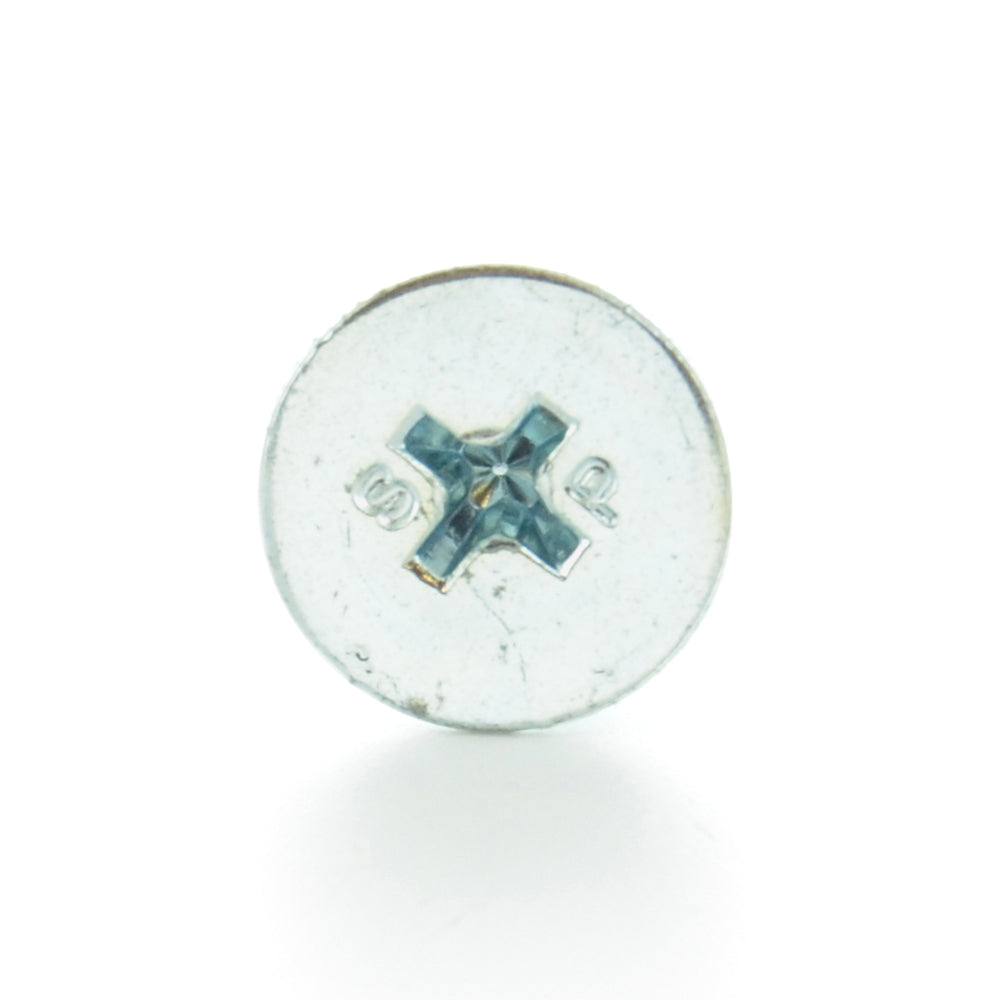

#12-24 x 2-1/2 Inch Zinc Plated Steel #4 Point Flat - Countersunk Head Self-Drilling Tek Screw With Wings

Item 121.12.212

We Stand Behind Our Products

If you are not satisfied, return within 90 days for a full refund.

Description

These machine screws have deeply sunk heads with flat top surfaces for fastening flatly against sides of metal joints and equipment. These screws sit flush against the surface of panels and electrical components for a finished look.

  • Origin: Imported
  • Zinc Plating Meets ASTM B-117 for Salt Spray Corrosion
  • Attaches wood to metal
  • Drill Capacity: 0.110 - 0.250 Inch
  • Drive Size: #3
  • Drive Type: Phillips
  • Finish: Zinc
  • Head Diameter: 0.380 - 0.412 Inch
  • Head Height: 0.132 Inch
  • Head Style: Flat - Countersunk
  • Industry Standard: ASME/ANSI B18.6.4 SAE J78
  • Item: Self-Drilling TEK Screw with Wings
  • Length: 2-1/2 Inch
  • Material: Steel
  • Measurement: Inch
  • Origin: Imported
  • Point Type: #4
  • Recess Diameter: 0.262 Inch
  • Recess Penetration Gagging Depth: 0.116 - 0.139 Inch
  • Specification: ASME/ANSI B18.6.4 SAE J78 SAE J933
  • Threads Per Inch: 24

Photographs are representational and may not be size accurate.

Key Specifications
Diameter #12
Drive Type Phillips
Finish Zinc
Head Style Flat
Length 2-1/2 Inch
Material Steel
Measurement Inch
