Winzer

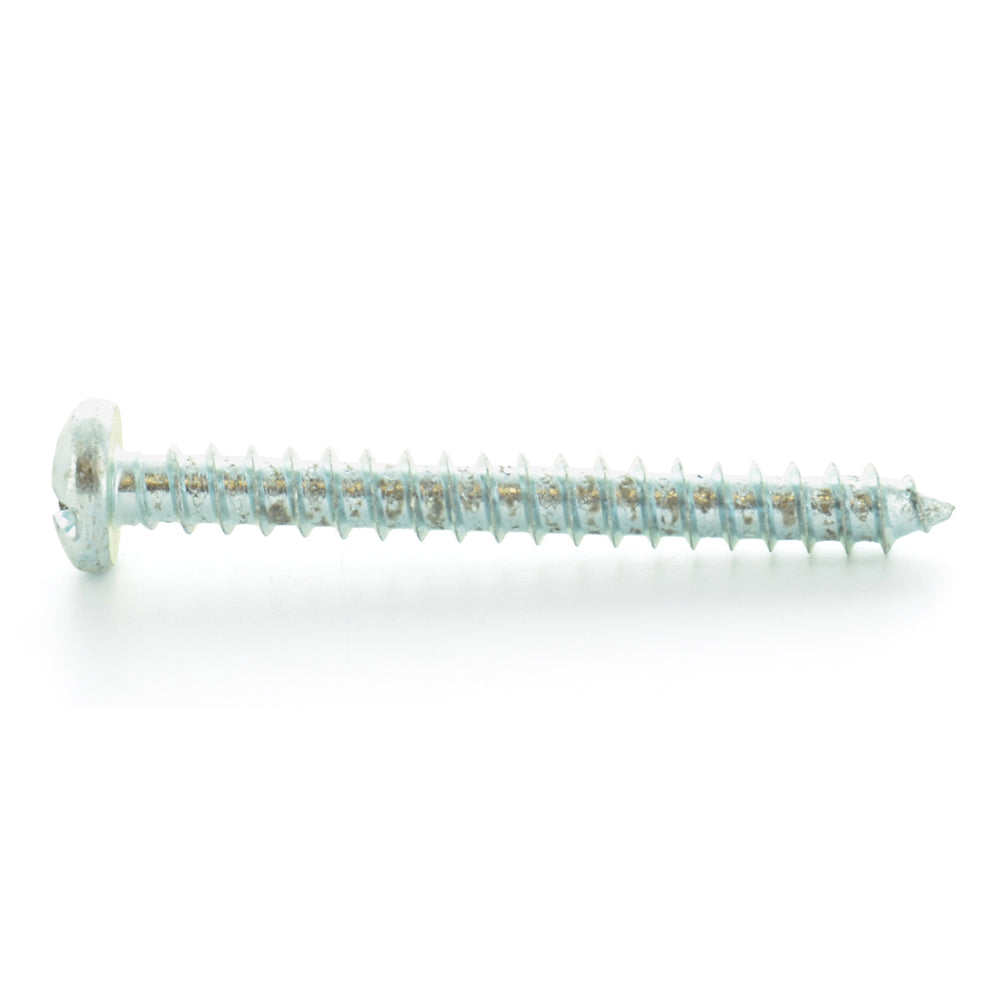

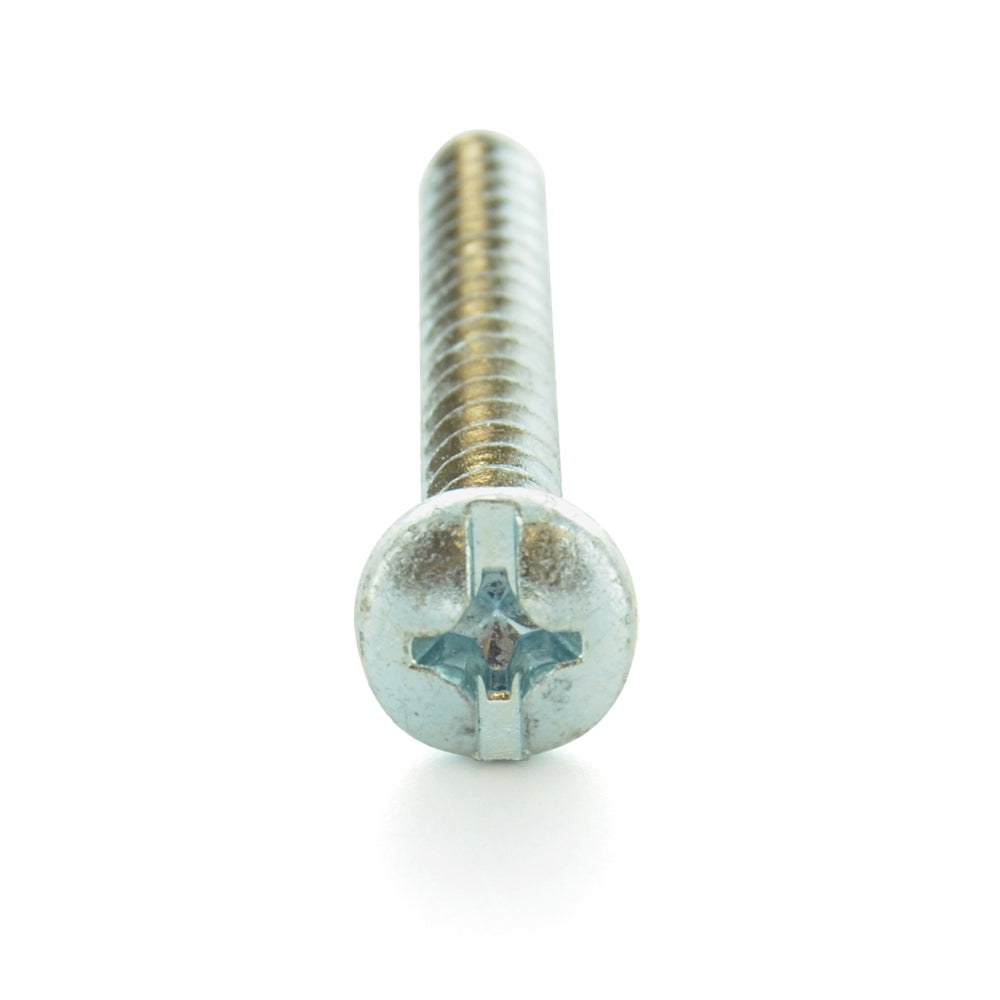

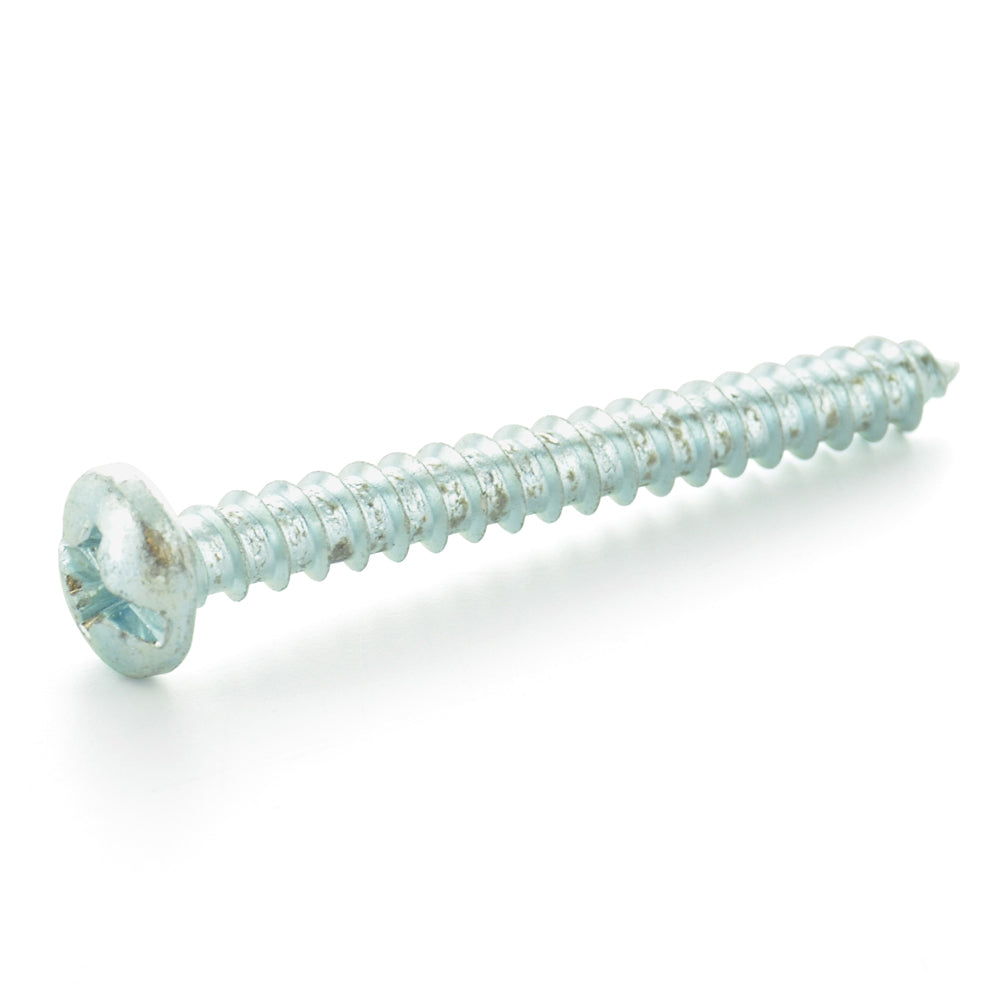

#14-14 x 2 Inch Zinc Plated Low Carbon Steel Pan Head Type-A Self-Tapping Sheet Metal Screw

Item 115.0.14.2

We Stand Behind Our Products

If you are not satisfied, return within 90 days for a full refund.

Description

Pan head design is slightly rounded with minimal vertical sides. Square drive is designed to reduce the risk of stripping and allow single-handed installation. Additionally reduces the ability to tamper with the fastener once installed.

  • Origin: Imported
  • Pan Head Style: For general applications
  • Can be substituted in most applications for round truss or binding heads
  • Phillips/Slotted Combination Drive: Accepts phillips and standard blade screwdrivers
  • Often used when fastener is expected to be driven and backed-out several times
  • Drive Size: #3
  • Drive Type: Combination - Phillips/Slotted
  • Finish: Zinc
  • Head Diameter: 0.457 - 0.476 Inch
  • Head Height: 0.126 - 0.139 Inch
  • Head Style: Pan
  • Industry Standard: ASME/ANSI B18.6.4 SAE J78
  • Item: Self-Tapping Sheet Metal Screw
  • Length: 2 Inch
  • Material: Low Carbon Steel
  • Measurement: Inch
  • Origin: Imported
  • Point Type: Type-A
  • Recess Diameter: 0.274 Inch
  • Recess Penetration Gagging Depth: 0.118 - 0.144 Inch
  • Slot Depth: 0.060 - 0.085 Inch
  • Slot Width: 0.064 - 0.075 Inch
  • Specification: ASME/ANSI B18.6.4 SAE J78 SAE J933
  • Threads Per Inch: 14

Photographs are representational and may not be size accurate.

Key Specifications
Diameter #14
Drive Type Combination
Finish Zinc
Head Style Pan
Length 2 Inch
Measurement Inch
Origin IMPORT
Point Type Type A
