Winzer

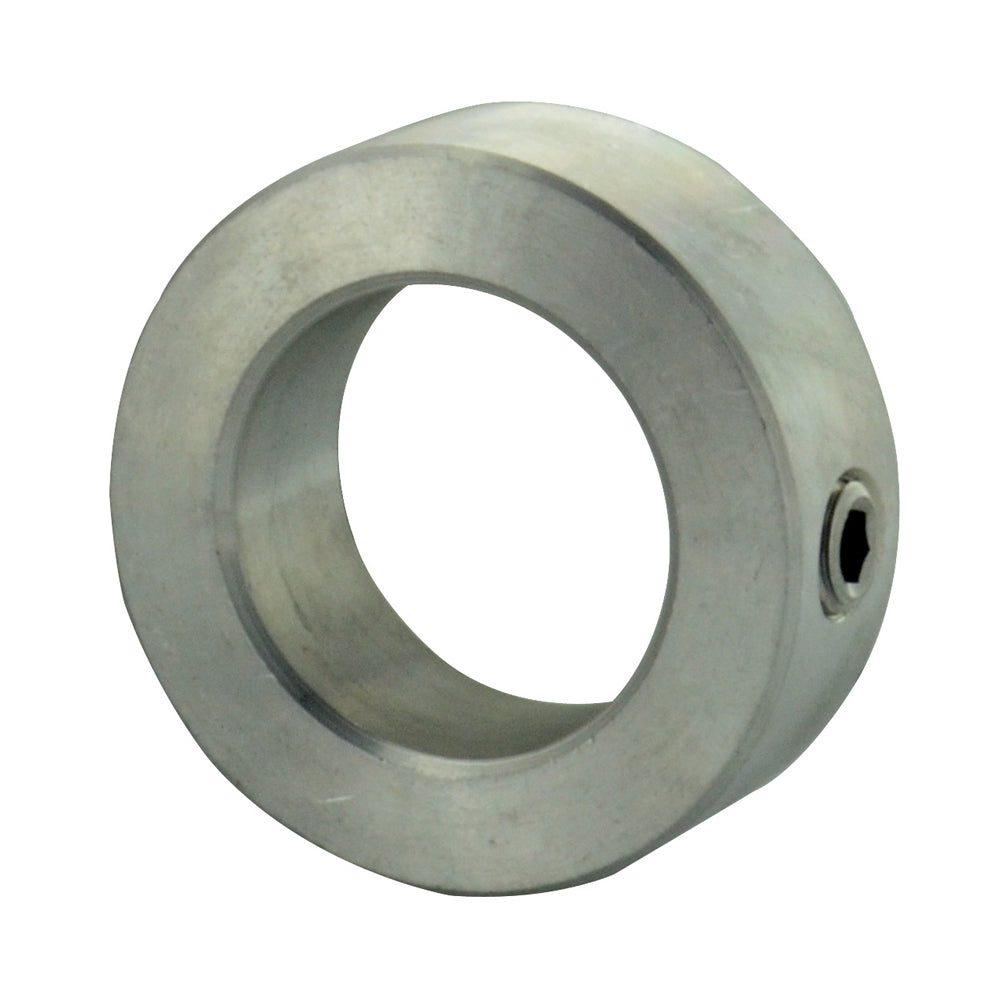

15/16 Inch Zinc Clear Low Carbon Steel Solid Shaft Collar

Item 496.01.1516

We Stand Behind Our Products

If you are not satisfied, return within 90 days for a full refund.

Description

Finish: Zinc

  • Standard style (SC) shaft collars use a hardened set screw to penetrate the shaft so as to achieve grip
  • This penetration yeilds light-duty benefits for applications like thrust collars abor spacers sprockets hubs bearing holders and shaft protectors
  • SC collars do not work well when th shaft is harder than set screw or when penetration marks on the shaft are not desirable
  • Black oxide coating will slightly increase friction and holding power in some applications
  • Inside Diameter: 15/16 Inch
  • Inside Diameter Maximum: 0.9415 Inch
  • Inside Diameter Minimum: 0.9385 Inch
  • Item: Shaft Collar
  • Material: Low Carbon Steel
  • Measurement: Inch
  • Origin: Imported
  • Outside Diameter: 1-5/8 Inch
  • Outside Diameter Maximum: 1.6330 Inch
  • Outside Diameter Minimum: 1.6170 Inch
  • Set Screw Size: 5/16-18
  • Style: Solid Set
  • Thickness: 9/16 Inch
  • Thickness Maximum: 0.5675 Inch
  • Thickness Minimum: 0.5575 Inch
  • Type: Round Bore

Photographs are representational and may not be size accurate.

Key Specifications
Finish Zinc
Material Low Carbon Steel
Measurement Inch
Retainer Type Solid Shaft Collar
