Winzer

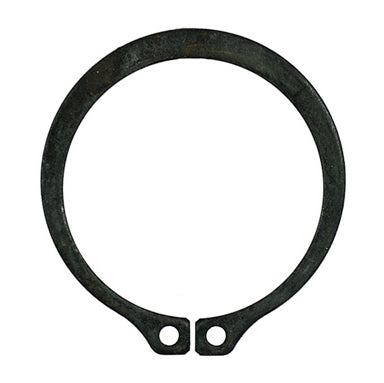

3/4 Inch Black Phosphate Carbon Spring Steel External Snap Ring

Item 436.34

We Stand Behind Our Products

If you are not satisfied, return within 90 days for a full refund.

Description

From cap screws to hitch pins we are a master distributor for fasteners of all types. Available in inch and metric sizes we are your single source solution. Additionally we offer both domestic and imported options for most fastener types.

  • Plating; Phosphate
  • Material: Carbon Spring SteelAllowable Corner Chamfers: 0.028 Inch
  • Allowable Corner Radii: 0.046 Inch
  • Clearance Diameter Released in Groove: 1.050 Inch
  • Edge Margin: 0.069 Inch
  • Finish: Black Phosphate
  • Gaging Diameter: 0.850 Inch
  • Groove Depth: 0.023 Inch
  • Groove Diameter: 0.704 Inch
  • Groove Diameter to Shaft Concentricity: 0.004 Inch
  • Groove Diameter Tolerance: +/-0.003
  • Groove Width: 0.046 Inch
  • Groove Width Tolerance: +0.003/-0.000
  • Hardness: HR30N 66-71
  • Hole Diameter: 0.052 Inch
  • Hole Diameter Tolerance: +0.010/-0.002
  • Item: External Snap Ring
  • Lug Height: 0.136 Inch
  • Lug Height Tolerance: +/-0.004
  • Material: Carbon Spring Steel
  • Maximum Section: 0.092 Inch
  • Maximum Section Tolerance: +/-0.005
  • Measurement: Inch
  • Minimum Section: 0.051 Inch
  • Minimum Section Tolerance: +/-0.005
  • Radial Wall Thickness: 0.051 - 0.092 Inch
  • Ring Free Diameter: 0.693 Inch
  • Ring Free Diameter Tolerance: +0.005/-0.010
  • RPM Limits: 26500 RPM
  • Shaft Diameter: 3/4 Inch
  • Thickness: 0.042 Inch
  • Thickness Tolerance: +/-0.002
  • Type: Stamped Standard Duty

Photographs are representational and may not be size accurate.
