Winzer

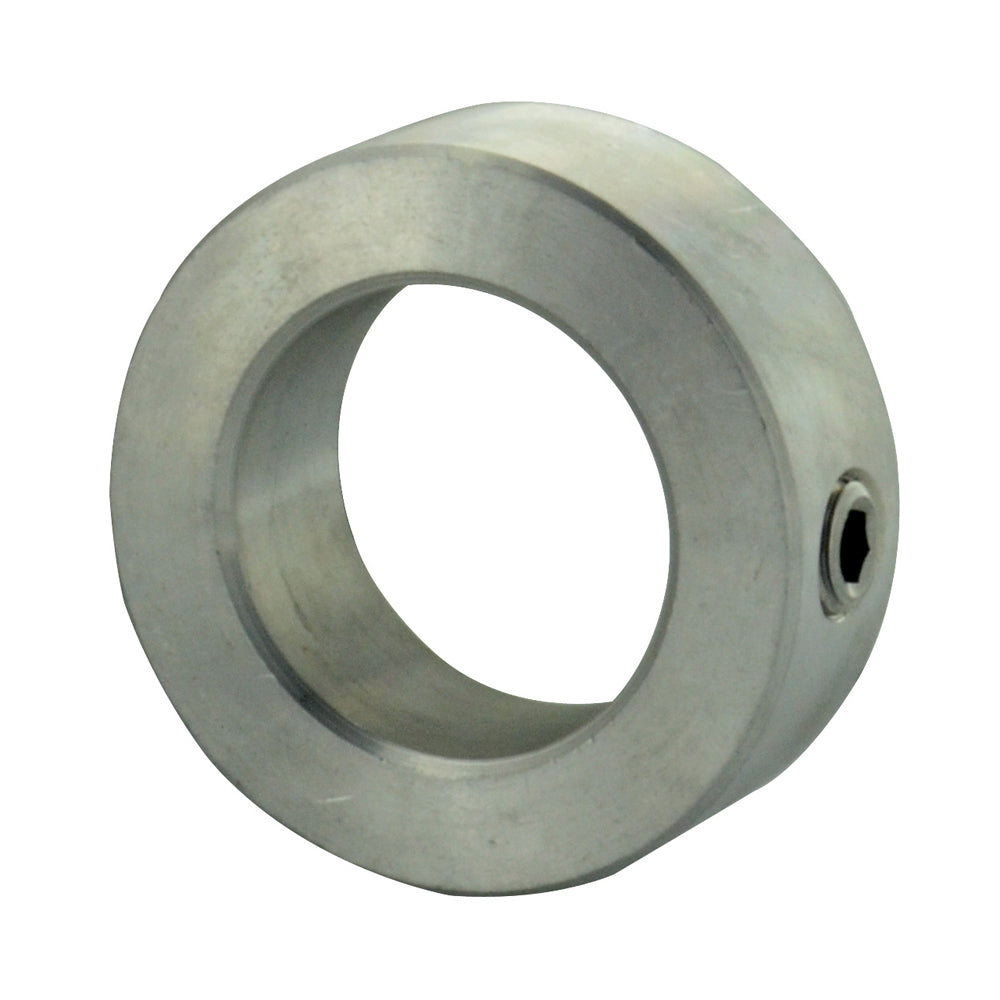

3/4 Inch Zinc Clear Low Carbon Steel Solid Shaft Collar

Item 496.01.34

We Stand Behind Our Products

If you are not satisfied, return within 90 days for a full refund.

Description

Standard style (SC) shaft collars use a hardened set screw to penetrate the shaft so as to achieve grip This penetration yeilds light-duty benefits for applications like thrust collars abor spacers sprockets hubs bearing holders and shaft protectors SC collars do not work well when th shaft is harder than set screw or when penetration marks on the shaft are not desirable Black oxide coating will slightly increase friction and holding power in some applications Finish: Zinc Inside Diameter: 3/4 Inch Inside Diameter Maximum: 0.7540 Inch Inside Diameter Minimum: 0.7510 Inch Item: Shaft Collar Material: Low Carbon Steel Measurement: Inch Origin: Imported Outside Diameter: 1-1/4 Inch Outside Diameter Maximum: 1.2580 Inch Outside Diameter Minimum: 1.2420 Inch Set Screw Size: 5/16-18 Style: Solid Set Thickness: 9/16 Inch Thickness Maximum: 0.5675 Inch Thickness Minimum: 0.5575 Inch Type: Round Bore

  • Standard style (SC) shaft collars use a hardened set screw to penetrate the shaft so as to achieve grip
  • This penetration yeilds light-duty benefits for applications like thrust collars abor spacers sprockets hubs bearing holders and shaft protectors
  • SC collars do not work well when th shaft is harder than set screw or when penetration marks on the shaft are not desirable
  • Black oxide coating will slightly increase friction and holding power in some applications
  • Inside Diameter: 3/4 Inch
  • Inside Diameter Maximum: 0.7540 Inch
  • Inside Diameter Minimum: 0.7510 Inch
  • Item: Shaft Collar
  • Material: Low Carbon Steel
  • Measurement: Inch
  • Origin: Imported
  • Outside Diameter: 1-1/4 Inch
  • Outside Diameter Maximum: 1.2580 Inch
  • Outside Diameter Minimum: 1.2420 Inch
  • Set Screw Size: 5/16-18
  • Style: Solid Set
  • Thickness: 9/16 Inch
  • Thickness Maximum: 0.5675 Inch
  • Thickness Minimum: 0.5575 Inch
  • Type: Round Bore

Photographs are representational and may not be size accurate.

Key Specifications
Diameter 3/4 Inch
Finish Zinc
Material Low Carbon Steel
Measurement Inch
Retainer Type Solid Shaft Collar
