Winzer

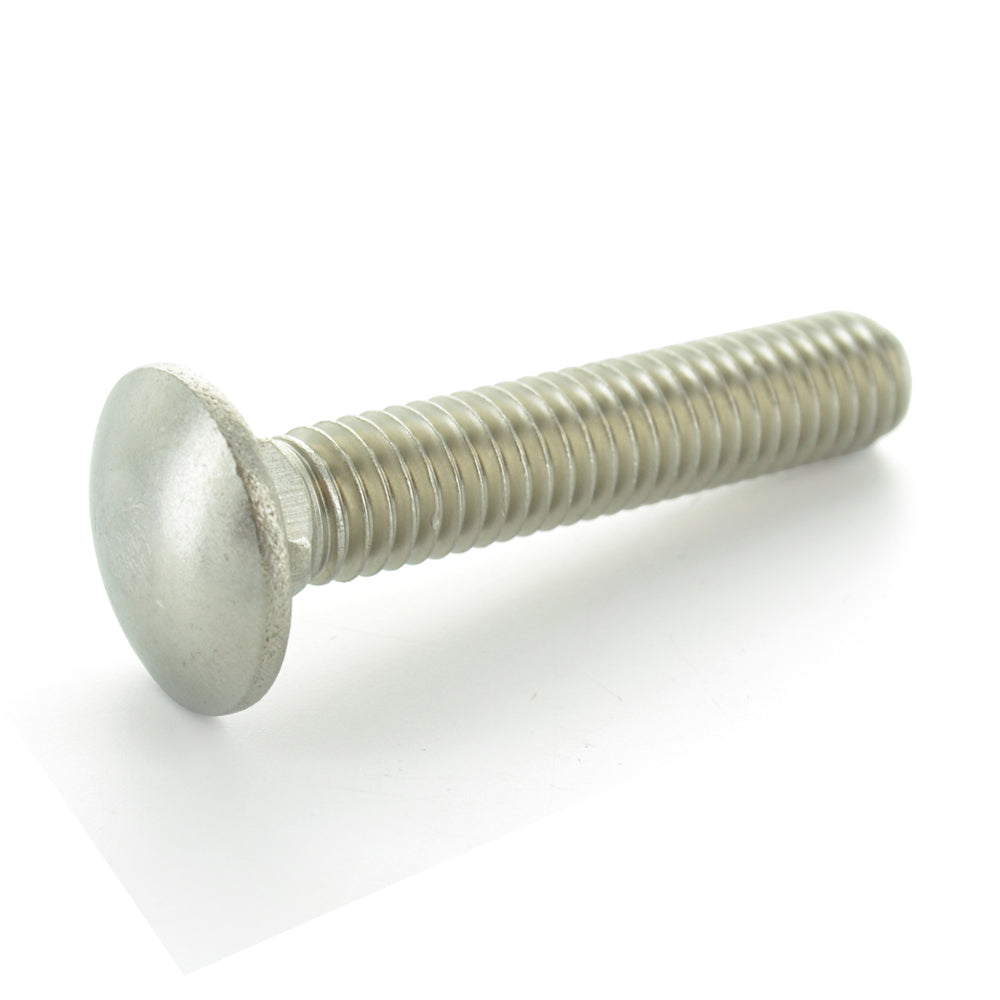

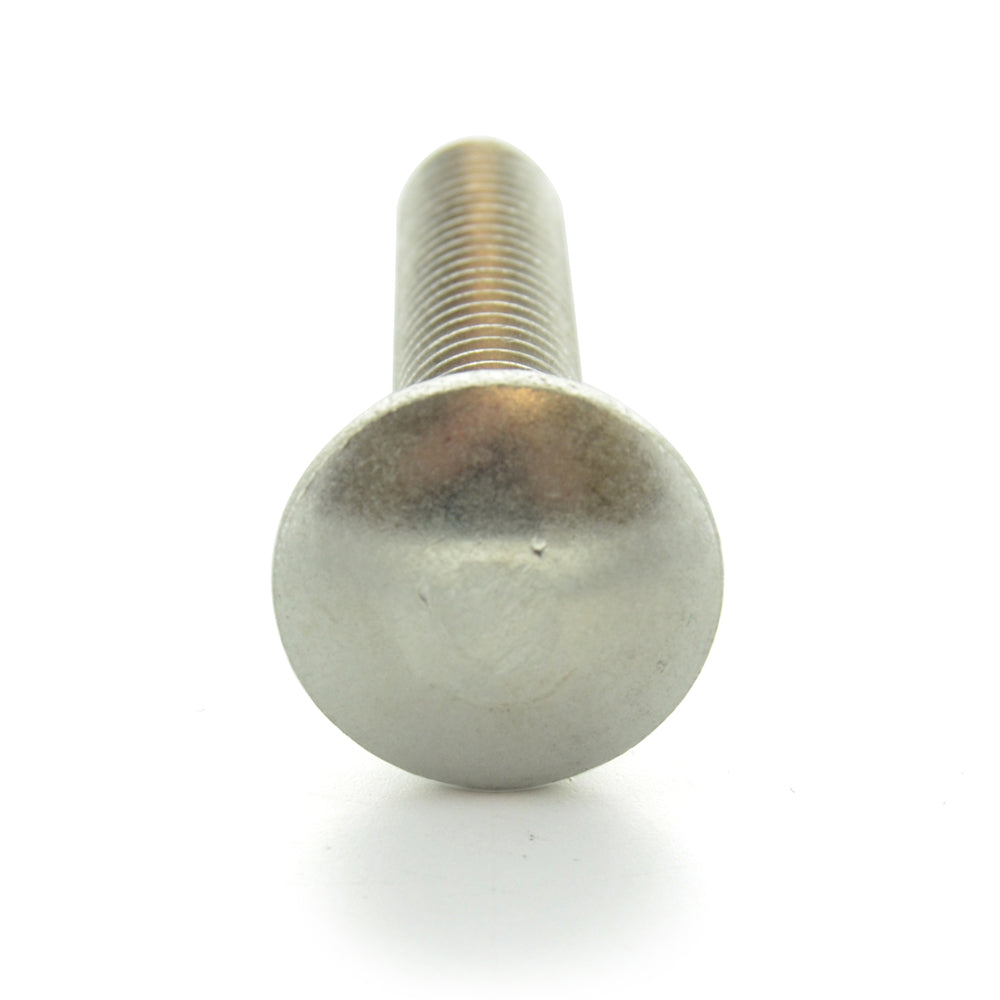

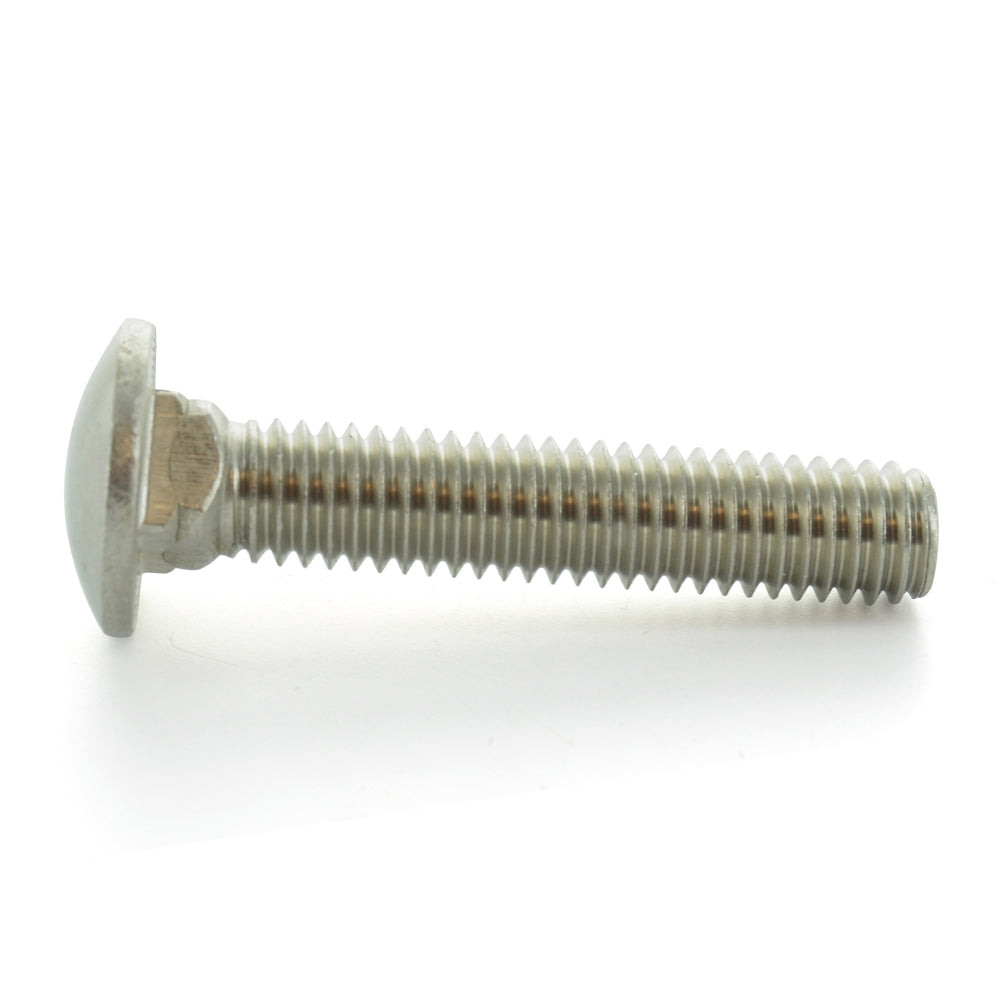

3/8-16 x 4 Inch Coarse Plain 18-8 Stainless Steel Round Head Carriage Bolt

Item 239.38.4

We Stand Behind Our Products

If you are not satisfied, return within 90 days for a full refund.

Description

  • Origin: Imported
  • Also know as a coach bolt or round head square neck bolt, carriage bolts are intended for use through iron strengthening plates on either side of a wooden beam
  • It is commonplace to use them into bare timber
  • Carriage bolts have a squared section under their round head that grip to prevent rotation
  • Body Diameter: 0.329 - 0.388 Inch
  • Diameter: 3/8 Inch
  • Finish: Plain
  • Grade: 18-8
  • Head Diameter: 0.782 - 0.844 Inch
  • Head Height: 0.188 - 0.208 Inch
  • Head Height Max: .2080Square Width Max
  • Head Style: Round
  • Item: Carriage Bolt
  • Length: 4 Inch
  • Material: 18-8 (A2) Stainless Steel
  • Measurement: Inch
  • Origin: Imported
  • Specification: ASME/ANSI B18.5,ASTM F593
  • Square Depth: 0.188 - 0.219 Inch
  • Square Width: 0.368 - 0.388 Inch
  • Tensile Strength : 100000 psi
  • Thread Length: 4 Inch
  • Thread Type: Coarse
  • Threads Per Inch: 16
  • Type: Full Threaded
  • Photographs are representational and may not be size accurate.
