Winzer

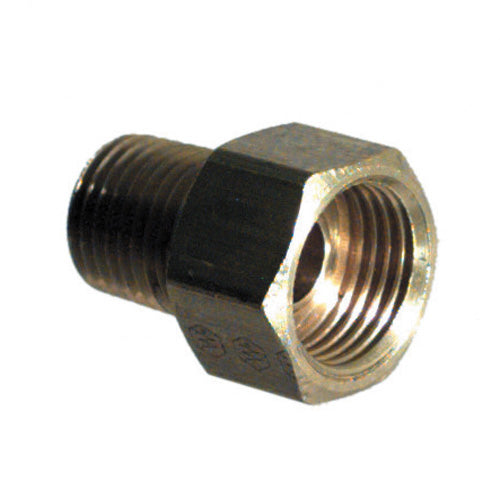

3/8 Inch X 1/2 Inch Standard Brass Inverted Flare Tube Male Connector

Item 670.05.86

We Stand Behind Our Products

If you are not satisfied, return within 90 days for a full refund.

Description

The male connector tube is made out of pure steel and designed to have excellent vibration resistance.

  • Typical Applications: Hydraulic Brake power steering fuel lines transmission cooler lines LP and natural gas
  • Pressure: Up to 2000 PSI depending on tube size
  • Sealing Method: 2-Piece Flare
  • Vibration Rating: Excellent
  • Temperature: -65°F to +250°F
  • Material: CA360 brass
  • Used with: Copper steel brass aluminum and bundy tubing
  • Low cost and reusable
  • Seats and threads are internal and protected
  • Compact excellent vibration life
  • Brass or steel nut
  • Listed by Underwriters Laboratories (Available on Special Order)
  • Meets Specifications and standards of ASA ASME SAE and MS (Military Standards)
  • Similar in shape to the threaded sleeve but with a thicker nut
  • Look for a 45° flared seat inside the body

Photographs are representational and may not be size accurate.

Key Specifications
Pipe Size 3/8 Inch
Tube Size 1/2 Inch
Material Brass
