Winzer

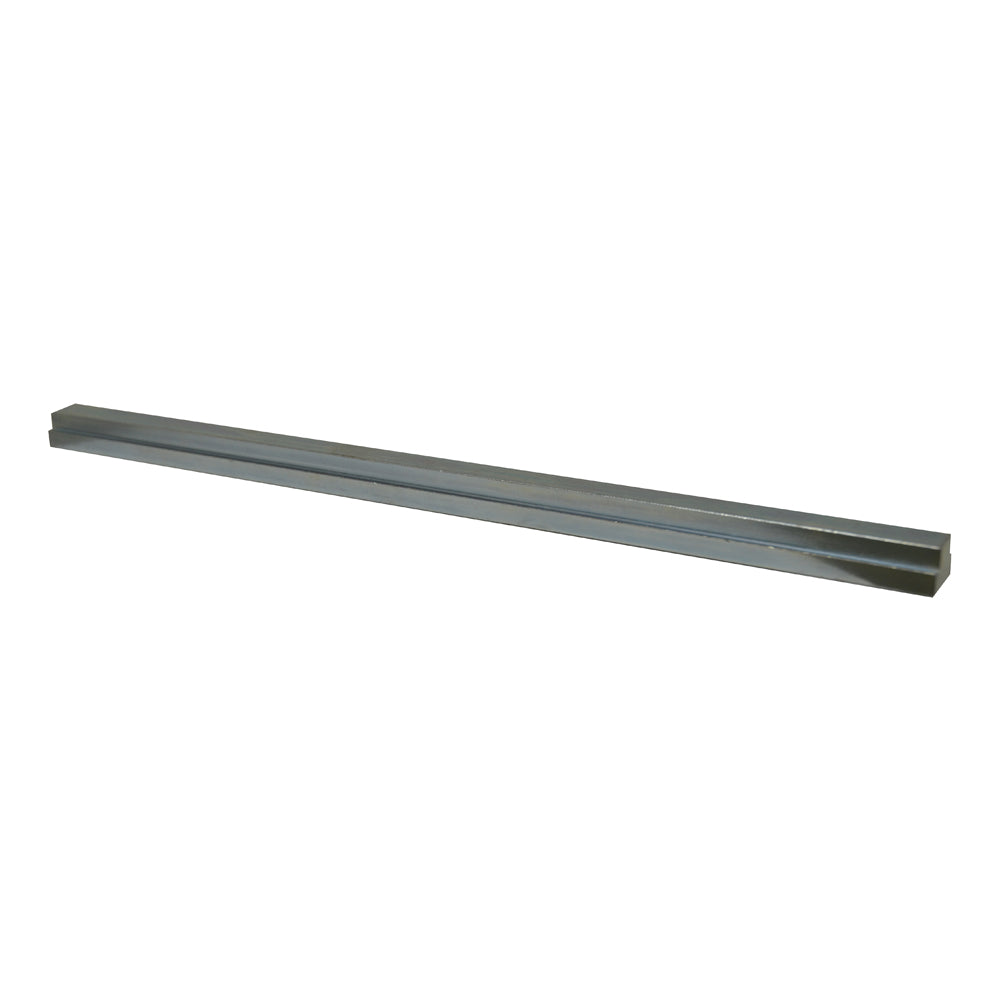

3/8 Inch X 3/4 Inch X 12 Inch Zinc Clear Carbon Steel Type-2 Step Keystock

Item 478.2.17

We Stand Behind Our Products

If you are not satisfied, return within 90 days for a full refund.

Description

Key stock is a small metal block or wedge inserted between a shaft and the hub of a pulley gear sprocket or other rotating power device. It provides driving torque and prevents movement. One part of the key fits into a precut slot in the shaft known as a key seat. The remainder slides into a groove in the hub called a keyway. Woodruff keys are flat semicircular keys that rock into place and adjust to an angular spine without coming unseated. Machine keys are elongated with either rounded ends square ends or tapered gib heads. Step keys also known as offset keys are precision-milled with steps notched at regular intervals for repairing sprockets gears and pulleys.

  • Step Key also known as "offset" keystock
  • Used on couplings gears sheaves sprockets and pulleys
  • Type 2 is useful when mating mismarked keyways gears and shafts
  • Height: 3/8 Inch
  • Height Maximum: 0.3800 Inch
  • Height Minimum: 0.3700 Inch
  • Item: Step Keystock
  • Length: 12 inch
  • Material: Carbon Steel
  • Measurement: Inch
  • Origin: Imported
  • Step Height: 0.4375 Inch
  • Step Height Maximum: 0.4425 Inch
  • Step Height Minimum: 0.4325 Inch
  • Step Width: 0.8750 Inch
  • Step Width Maximum: 0.8750 Inch
  • Step Width Minimum: 0.8720 Inch
  • Type: Type-2
  • Width: 3/4 Inch
  • Width Maximum: 0.7500 Inch
  • Width Minimum: 0.7470 Inch

Photographs are representational and may not be size accurate.

Key Specifications
Finish Zinc
Height 3/8 Inch
Length 12 Inch
Material Steel
Measurement Inch
Retainer Type Step Key Stock
