Photographs are representational and may not be size accurate.

Winzer

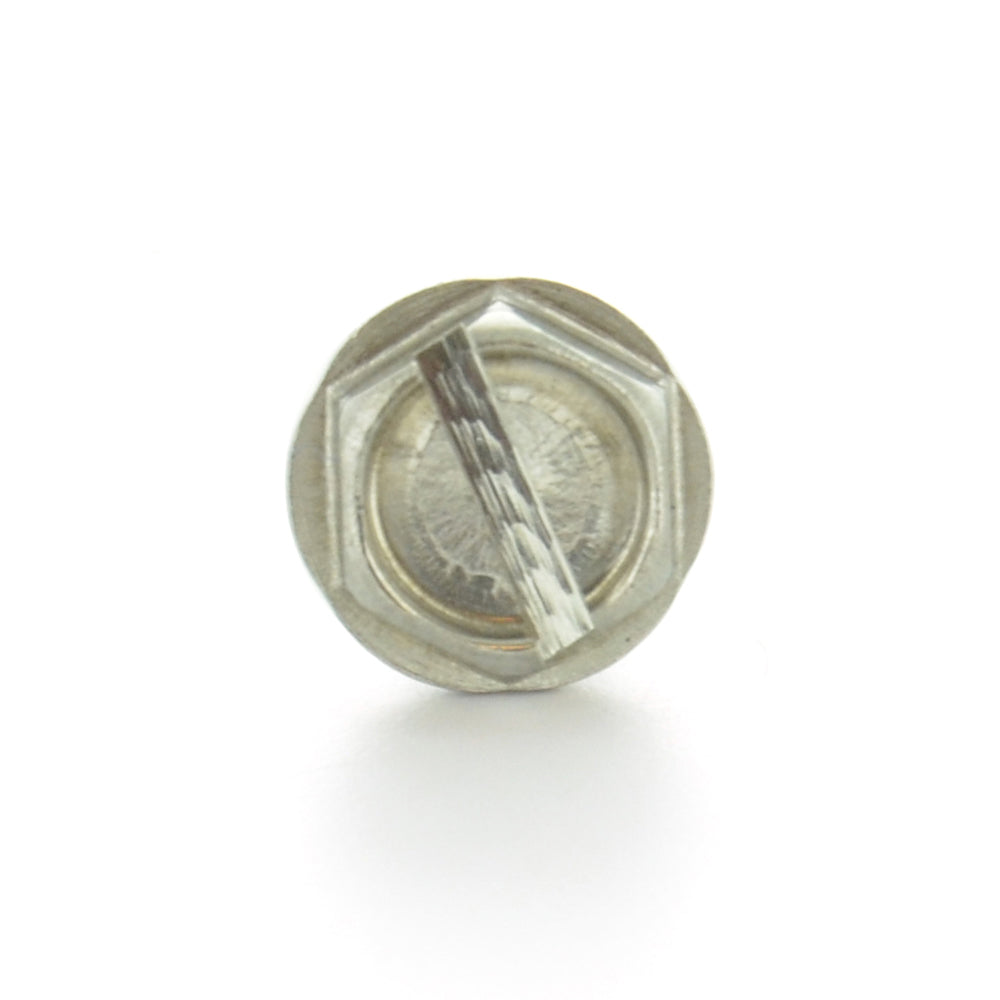

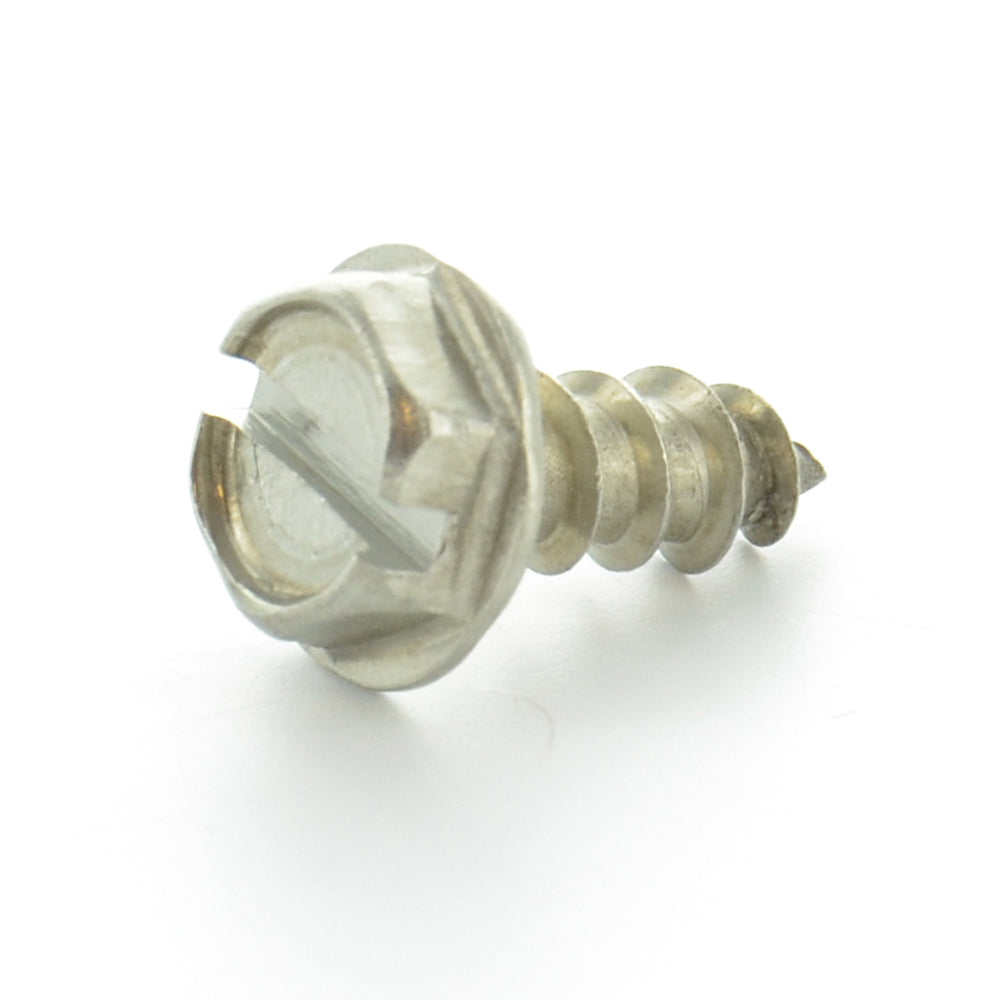

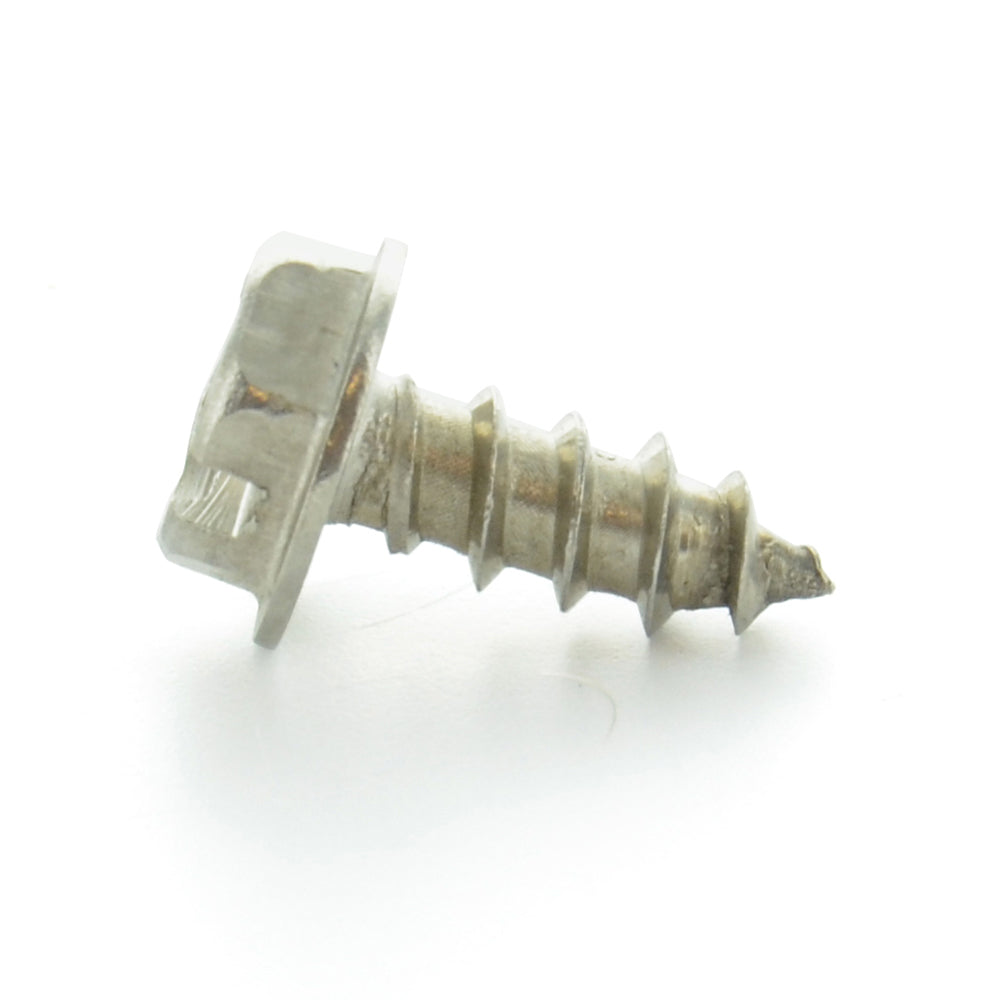

3/8 x 1 Inch 18-8 (A2) Stainless Steel Type Ab Indented Hex Washer Head Self-Tapping Sheet Metal Screw

Item 111.015.38.1

We Stand Behind Our Products

If you are not satisfied, return within 90 days for a full refund.

Description

A/AB Sheet Metal Screws- Sheet metal screws are engineered for connecting thinner metal objects to one another or connecting metal to wood plastic and other materials. Many sheet metal screws can start their own hole. Type A sheet metal screws have wider spaced threads for self-starting in thinner metal or plywood.Type AB sheet metal screws have more threads per inch and are more effective in brittle materials than Type A.

  • Origin: Imported
  • Drive Type: Hex - Slotted
  • Finish: Plain
  • Grade: 18-8
  • Head Height: 0.270 - 0.295 Inch
  • Head Style: Indented Hex Washer
  • Industry Standard: ASME/ANSI B18.6.4
  • Item: Self-Tapping Sheet Metal Screw
  • Length: 1 Inch
  • Material: 18-8 (A2) Stainless Steel
  • Measurement: Inch
  • Point Type: Type AB
  • Slot Depth: 0.131 - 0.168 Inch
  • Slot Width: 0.081 - 0.094 Inch
  • Washer Diameter: 0.720 - 0.780 Inch
  • Washer Thickness: 0.037 - 0.063 Inch

Photographs are representational and may not be size accurate.

Key Specifications
Diameter 3/8 Inch
Drive Type Slotted Hex
Head Style Hex Washer
Length 1 Inch
Material 18-8 Stainless Steel
Measurement Inch
Origin IMPORT
Point Type Type AB
