Winzer

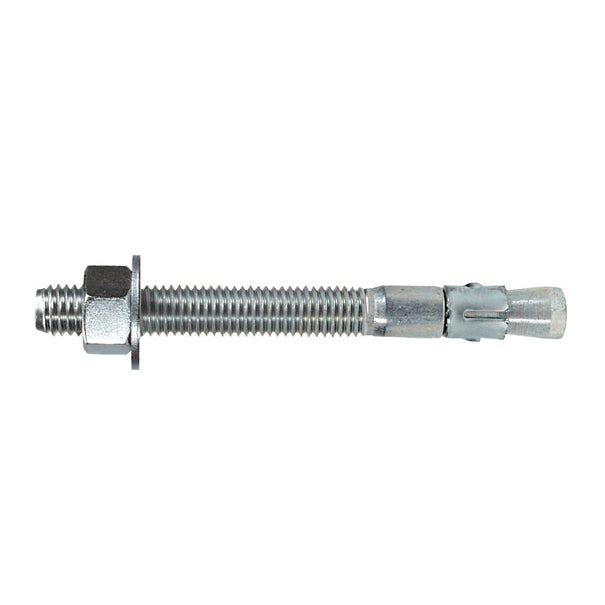

3/8 x 2-3/4 Wedge-All Wedge Style Concrete Expansion Anchor

Item 900.02.38.234

We Stand Behind Our Products

If you are not satisfied, return within 90 days for a full refund.

Description

The Wedge-All wedge anchors are a non-bottom bearing wedge-style expansion anchor for use in solid concrete or grout-filled concrete masonry. A one-piece clip ensures uniform holding capacity that increases as tension is applied. the threaded stud version is available in eight diameters and multiple lengths. A single size tie-wire version is available for wire supported fixtures. Threaded studs are set by tightening the nut. Tie-wire anchors are set with the claw end of a hammer.

  • One piece wrap around clip
  • Threaded end is chamfered for ease of starting nut
  • Most sizes feature full thread for added versatility
  • Interior environment low level of corrosion resistance
  • Drill Size: 3/8 Inch
  • Finish: Zinc
  • Item: Wedge-All? Wedge Concrete Expansion Anchor
  • Length: 2-3/4 Inch
  • Material: Carbon Steel
  • Minimum Embedment Depth: 1-3/4 Inch
  • Thread Length: 1-5/8 Inch
