Winzer

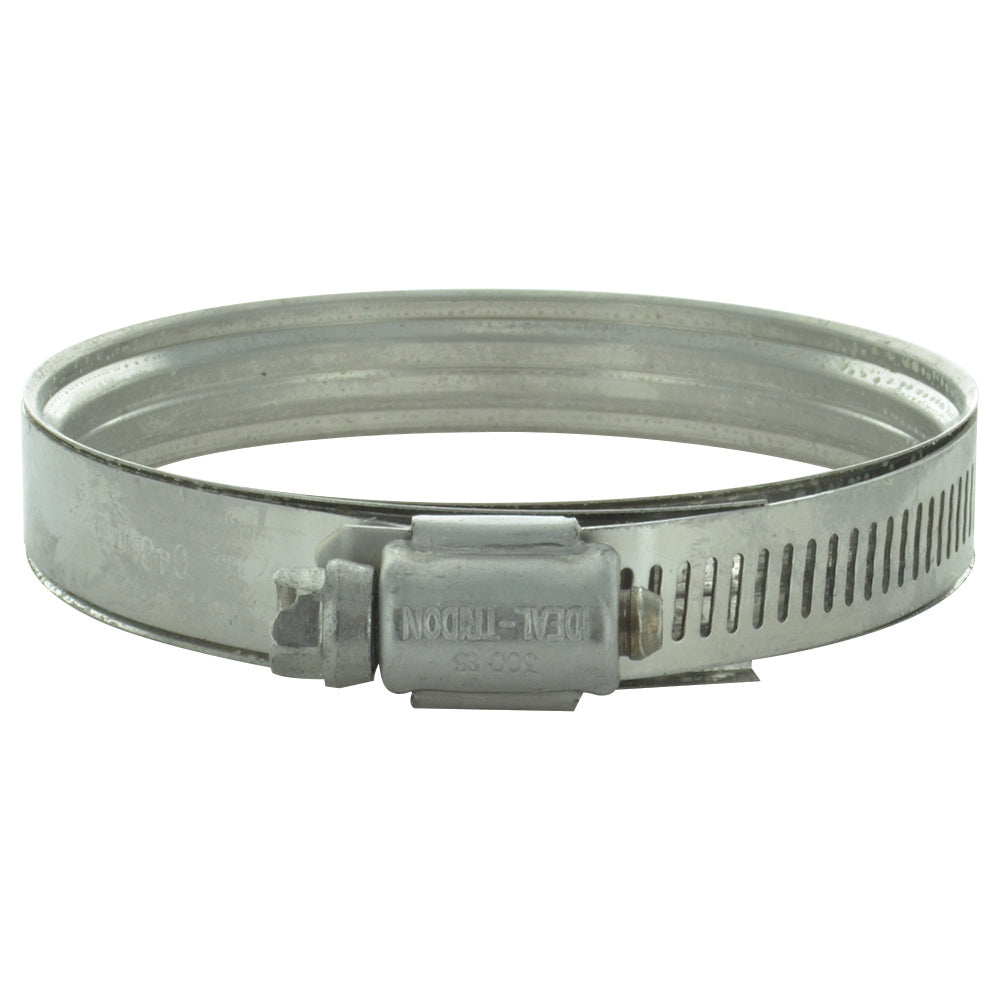

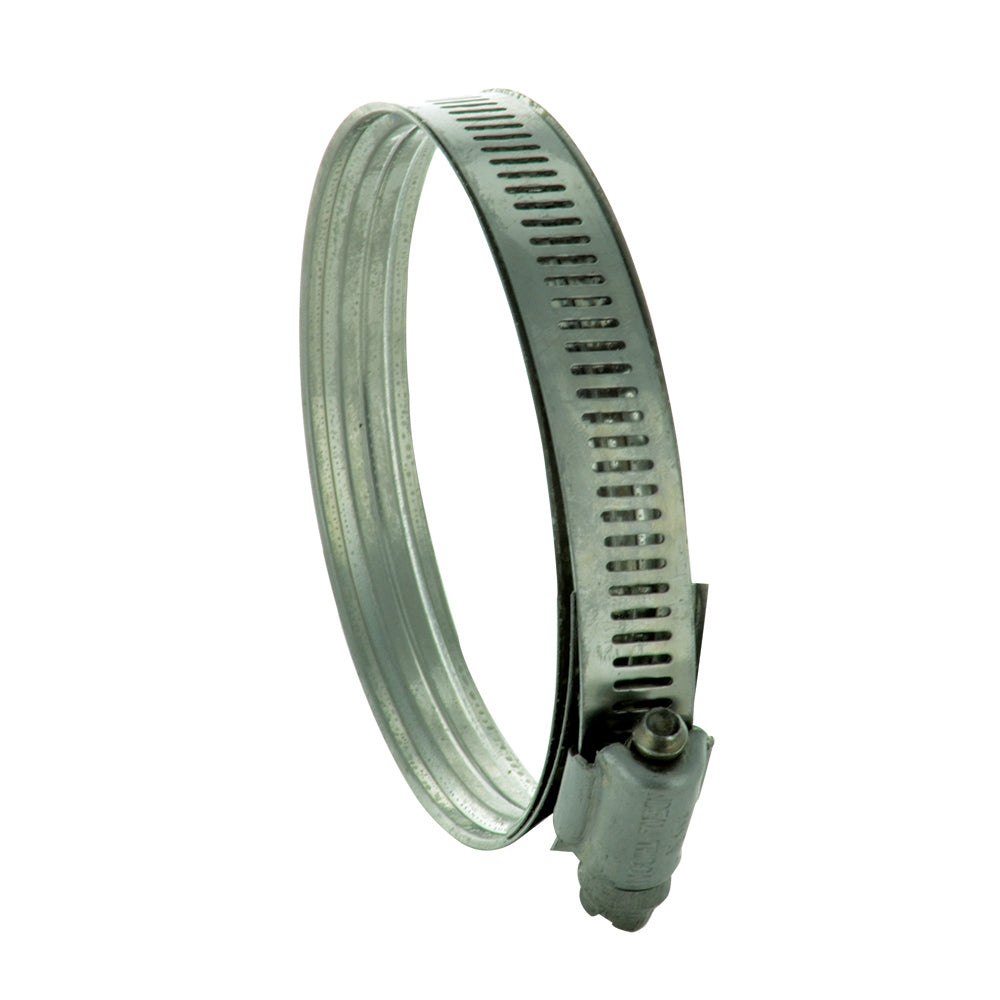

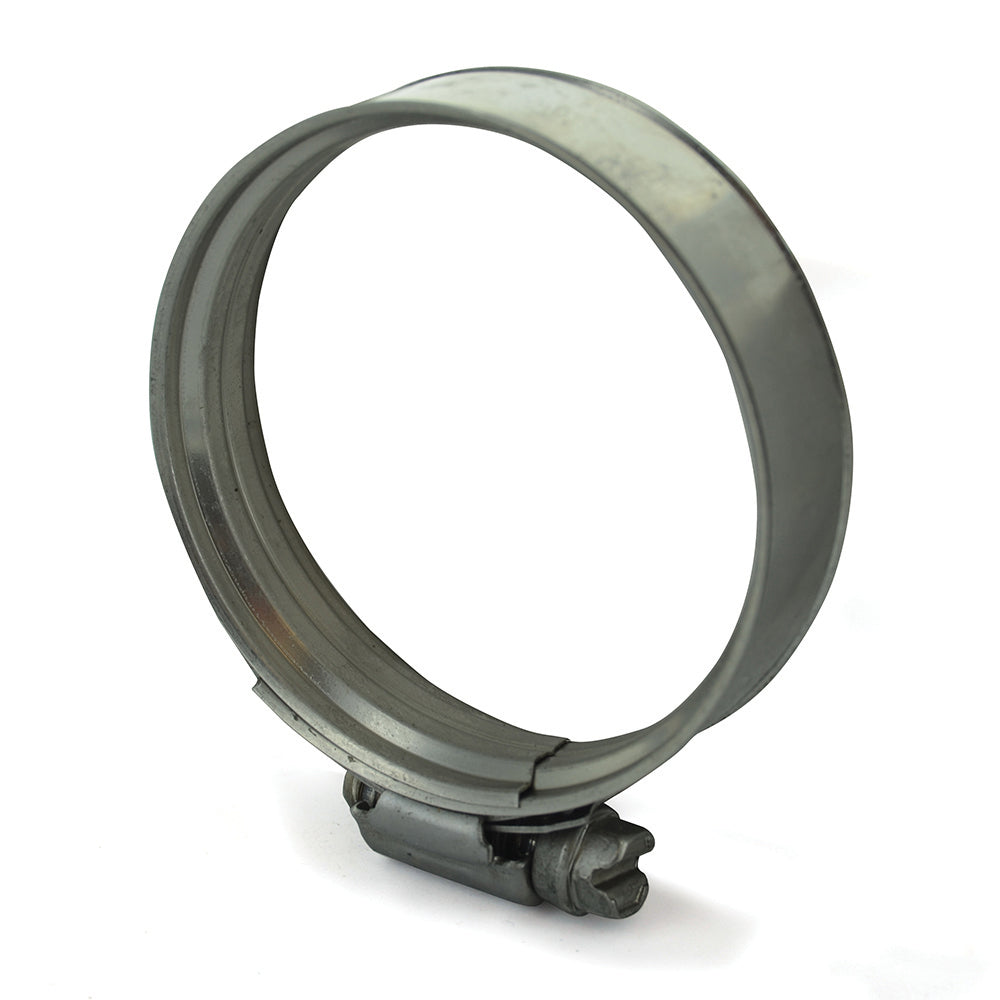

#32 Ideal-Tridon Smartseal Clamp System - Stainless Steel Spring Liner & Clamp

Item 534.01.32

We Stand Behind Our Products

If you are not satisfied, return within 90 days for a full refund.

Description

SmartSeal Clamps are comprised of two main parts the clamp assembly and the SmartLiner. the SmartLiner is a spring liner made of high quality stainless steel integrated inside the clamp. Designed to be smart the thin gauge steel expands and contracts around the hose with temperature changes. Clamp rides on top of lubricated liner distributing pressure more evenly around hose.

  • Min: 1-15/16 Inch (48mm) / Max: 2-5/16 Inch (59mm)
  • 1/2 Inch Band
  • 1/2 Inch Spring Liner
  • 5/16 Inch Slotted Hex Head
  • Spring compensation more than 360º
  • Improved clamp roundness eliminates leak paths at housing juncture
  • Trough-shaped design created higher pressure loading compared to conventional worm gear increasing resistance against potential leaks
  • Trough shape helps clamp “grip” by penetrating deeper into the hose wall over a narrower cross-section (footprint)
  • Applications include: radiators turbo charged applications solar panels vehicle HVAC pipe fluid connectors soft hose applications generators home appliances tractors/trucks and most vehicle fluid applications
