Winzer

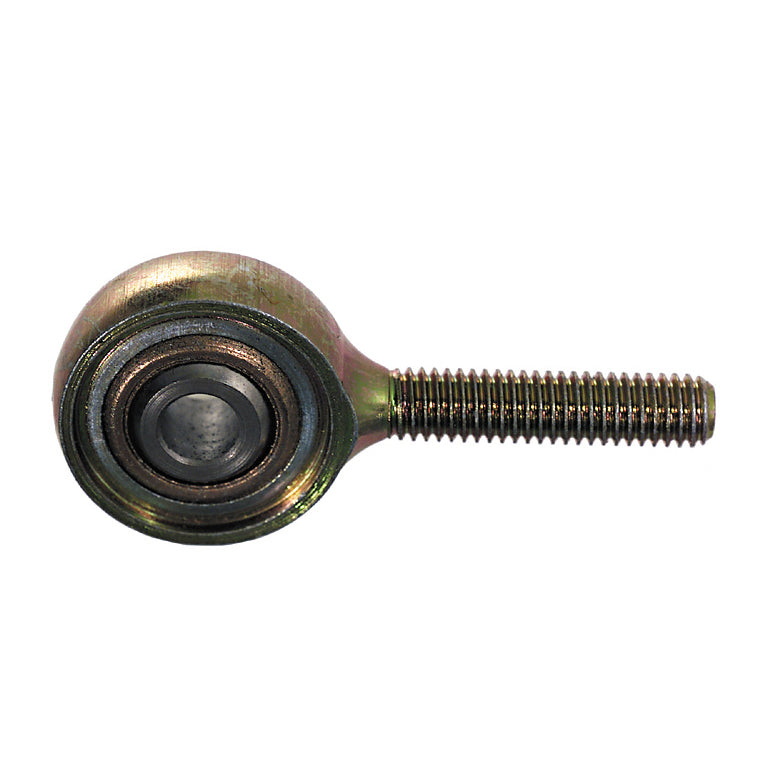

5/16-24 Male Right Hand V Series Spherical Bearing Rod End

Item 483.4.516

We Stand Behind Our Products

If you are not satisfied, return within 90 days for a full refund.

Description

Rod ends are designed for securing and suspending objects from high anchor points. Hex nuts may be added to the rod end to add extra security. Rod ends are threaded swing bolts that can be cut to any length required. They connect and support loads and allow motion control and hinge movements. They work in a multitude of applications: steering tensioning and controlling movement at pivot points.

  • Plated case hardened steel ball with self-lubricating centered oil impregnated phosphor bronze race permanently secured in a mild steel plated housing
  • Four piece construction
  • Ball Diameter: 0.618 Inch
  • Ball Material: Steel-Case Hardened
  • Ball Width: 0.437 Inch
  • Base To Center: 1.875 Inch
  • Diameter: 5/16-24 Inch
  • Finish: Plated
  • Head Diameter: 0.875 Inch
  • Item: Spherical Bearing Rod End
  • Load Rating: 2850 lb Ultimate (Radial) Static
  • Material: Case Hardened Steel Ball Sintered Bronze Race Steel Housing
  • Thread Size: 5/16-24
  • Thread Type: Male Right Hand
  • Type: V Series

Photographs are representational and may not be size accurate.

Key Specifications
Thread Size 5/16-24
Diameter 5/16 Inch
Material Steel
