Winzer

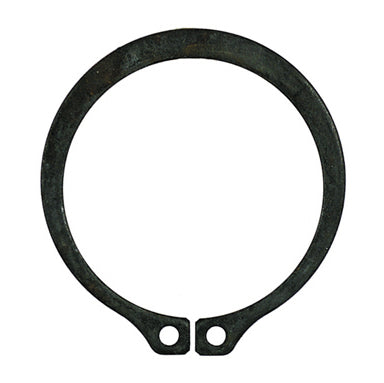

5/16 Inch Black Phosphate Carbon Spring Steel External Snap Ring

Item 436.516

We Stand Behind Our Products

If you are not satisfied, return within 90 days for a full refund.

Description

From cap screws to hitch pins we are a master distributor for fasteners of all types. Available in inch and metric sizes we are your single source solution. Additionally we offer both domestic and imported options for most fastener types.

  • Plating; Phosphate
  • Material: Carbon Spring SteelAllowable Corner Chamfers: 0.012 Inch
  • Allowable Corner Radii: 0.020 Inch
  • Clearance Diameter Released in Groove: 0.520 Inch
  • Edge Margin: 0.033 Inch
  • Finish: Black Phosphate
  • Gaging Diameter: 0.357 Inch
  • Groove Depth: 0.011 Inch
  • Groove Diameter: 0.290 Inch
  • Groove Diameter to Shaft Concentricity: 0.002 Inch
  • Groove Diameter Tolerance: +/-0.002
  • Groove Width: 0.029 Inch
  • Groove Width Tolerance: +0.003/-0.000
  • Hardness: HR30N 69.5-73
  • Hole Diameter: 0.041 Inch
  • Hole Diameter Tolerance: +0.010/-0.002
  • Item: External Snap Ring
  • Lug Height: 0.087 Inch
  • Lug Height Tolerance: +/-0.003
  • Material: Carbon Spring Steel
  • Maximum Section: 0.040 Inch
  • Maximum Section Tolerance: +/-0.003
  • Measurement: Inch
  • Minimum Section: 0.026 Inch
  • Minimum Section Tolerance: +/-0.003
  • Radial Wall Thickness: 0.026 - 0.040 Inch
  • Ring Free Diameter: 0.281 Inch
  • Ring Free Diameter Tolerance: +0.002/-0.005
  • RPM Limits: 70000 RPM
  • Shaft Diameter: 5/16 Inch
  • Thickness: 0.025 Inch
  • Thickness Tolerance: +/-0.002
  • Type: Stamped Standard Duty

Photographs are representational and may not be size accurate.

Key Specifications
Material Spring Steel
Measurement Inch
