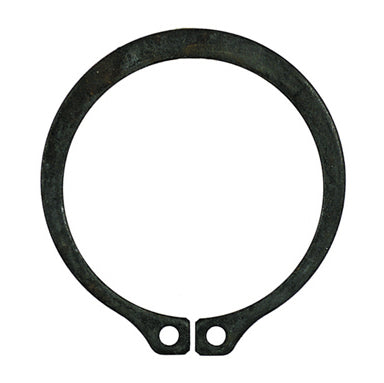

5/8 Inch Black Phosphate Carbon Spring Steel External Snap Ring

Item 436.58

We Stand Behind Our Products

If you are not satisfied, return within 90 days for a full refund.

Description

From cap screws to hitch pins we are a master distributor for fasteners of all types. Available in inch and metric sizes we are your single source solution. Additionally we offer both domestic and imported options for most fastener types.

  • Plating; Phosphate
  • Material: Carbon Spring SteelAllowable Corner Chamfers: 0.025 Inch
  • Allowable Corner Radii: 0.042 Inch
  • Clearance Diameter Released in Groove: 0.870 Inch
  • Edge Margin: 0.055 Inch
  • Finish: Black Phosphate
  • Gaging Diameter: 0.715 Inch
  • Groove Depth: 0.018 Inch
  • Groove Diameter: 0.588 Inch
  • Groove Diameter to Shaft Concentricity: 0.004 Inch
  • Groove Diameter Tolerance: +/-0.003
  • Groove Width: 0.039 Inch
  • Groove Width Tolerance: +0.003/-0.000
  • Hardness: HR30N 66-71
  • Hole Diameter: 0.047 Inch
  • Hole Diameter Tolerance: +0.010/-0.002
  • Item: External Snap Ring
  • Lug Height: 0.110 Inch
  • Lug Height Tolerance: +/-0.003
  • Material: Carbon Spring Steel
  • Maximum Section: 0.080 Inch
  • Maximum Section Tolerance: +/-0.004
  • Measurement: Inch
  • Minimum Section: 0.045 Inch
  • Minimum Section Tolerance: +/-0.004
  • Radial Wall Thickness: 0.045 - 0.080 Inch
  • Ring Free Diameter: 0.579 Inch
  • Ring Free Diameter Tolerance: +0.005/-0.010
  • RPM Limits: 30000 RPM
  • Shaft Diameter: 5/8 Inch
  • Thickness: 0.035 Inch
  • Thickness Tolerance: +/-0.002
  • Type: Stamped Standard Duty

Photographs are representational and may not be size accurate.

Key Specifications
Diameter 5/8 Inch
Material Spring Steel
Measurement Inch
