Winzer

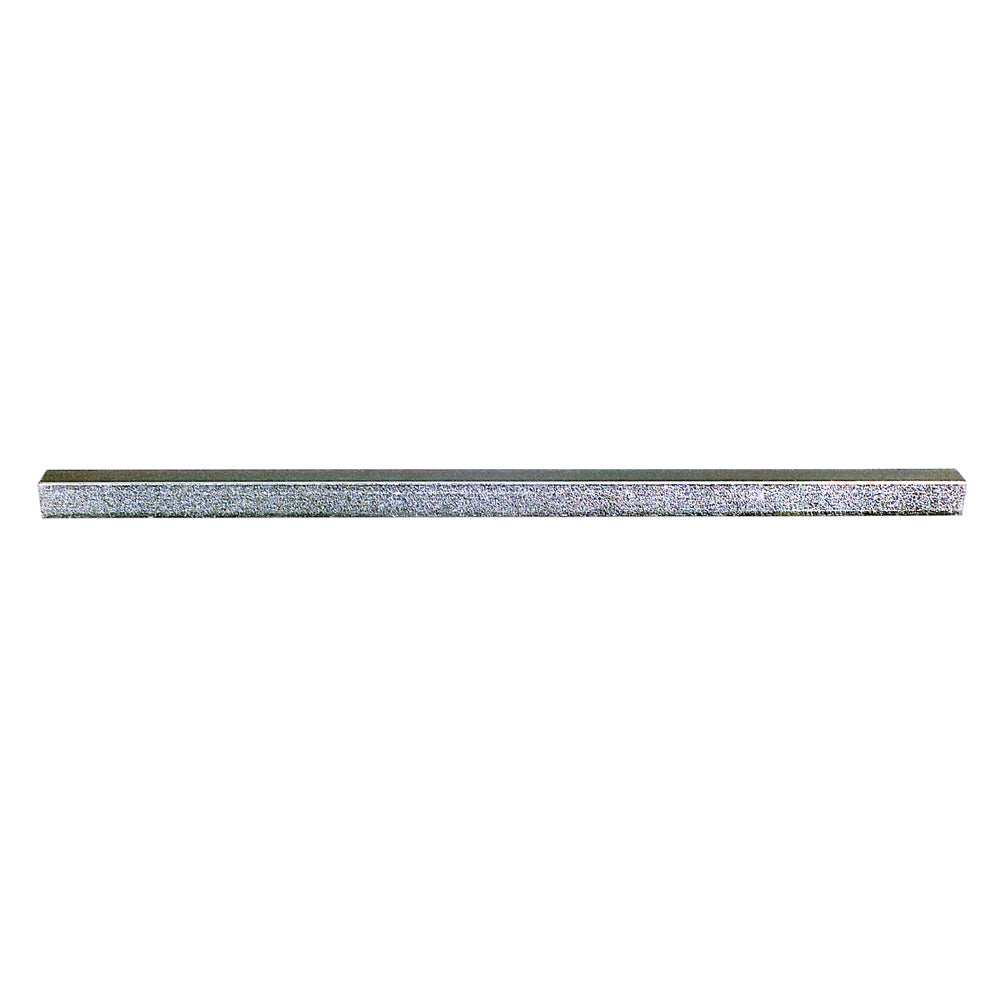

5/8 Inch X 5/8 Inch X 12 Inch Zinc Clear Cold Finished Carbon Steel Undersize Square Keystock

Item 478.58

We Stand Behind Our Products

If you are not satisfied, return within 90 days for a full refund.

Description

Key stock is a small metal block or wedge inserted between a shaft and the hub of a pulley gear sprocket or other rotating power device. It provides driving torque and prevents movement. One part of the key fits into a precut slot in the shaft known as a key seat. The remainder slides into a groove in the hub called a keyway. Woodruff keys are flat semicircular keys that rock into place and adjust to an angular spine without coming unseated. Machine keys are elongated with either rounded ends square ends or tapered gib heads. Step keys also known as offset keys are precision-milled with steps notched at regular intervals for repairing sprockets gears and pulleys.

  • Hardness RB 50 min.
  • A stock of material that is one foot or greater in length and from which shaft keys are made
  • Height: 5/8 Inch
  • Height Maximum: 0.6250 Inch
  • Height Minimum: 0.6230 Inch
  • Industry Standard: ASME/ANSI B17.1
  • Item: Square Keystock
  • Length: 12 inch
  • Material: Cold Finished Carbon Steel
  • Measurement: Inch
  • Origin: Imported
  • Specification: ASME/ANSI B17.1
  • Type: Undersize
  • Width: 5/8 Inch
  • Width Maximum: 0.6250 Inch
  • Width Minimum: 0.6230 Inch

Photographs are representational and may not be size accurate.

Key Specifications
Finish Zinc
Height 5/8 Inch
Length 12 Inch
Material Steel
Measurement Inch
Retainer Type Square Key Stock
