Winzer

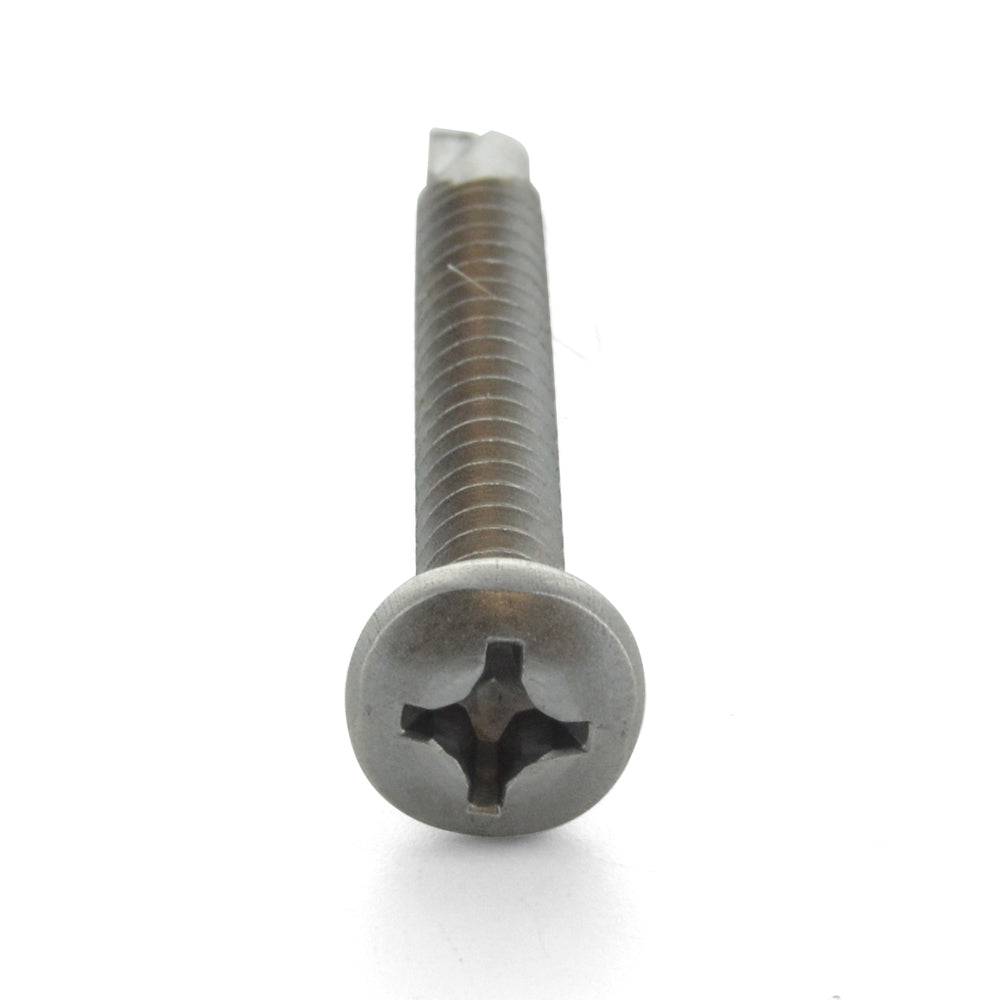

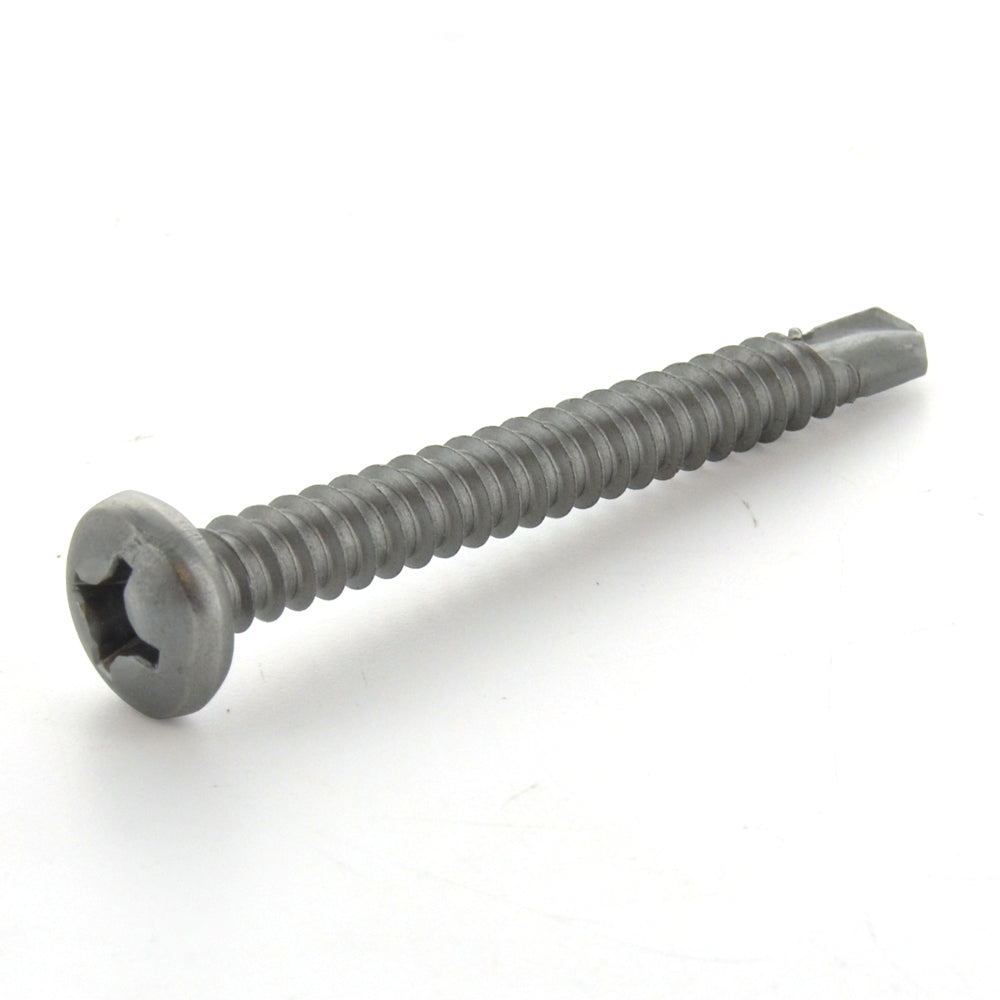

#6 x 1-1/2 Inch Plain 410 Stainless Steel #2 Point Pan Head Self-Drilling Tek Screw

Item 124.0.6.112

We Stand Behind Our Products

If you are not satisfied, return within 90 days for a full refund.

Description

Self drilling screws also known as TEK screws have a tip to cut through material and eliminate the need to drill a pilot hole. An indented hex washer head offers advantages of hex head plus greater protection to mating surface. Stainless steel 400 gives these screws the added benefits of higher strength and wear resistance. The passivated finish makes them much more resistant to corrosion than the original finish. These screws are typically used in metal to metal applications.

  • Origin: Imported
  • Drive Size: #2
  • Drive Type: Phillips
  • Finish: Plain
  • Head Diameter: 0.256 - 0.270 Inch
  • Head Height: 0.072 - 0.082 Inch
  • Head Height Max: .082
  • Head Style: Pan
  • Industry Standard: ASME/ANSI B18.6.4 SAE J78
  • Item: Self-Drilling TEK Screw
  • Length: 1-1/2 Inch
  • Material: 410 Stainless Steel
  • Measurement: Inch
  • Origin: Imported
  • Point Type: 3.2 mm
  • Recess Diameter: 0.159 Inch
  • Recess Penetration Gagging Depth: 0.055 - 0.080 Inch
  • Specification: ASME/ANSI B18.6.4 SAE J78

Photographs are representational and may not be size accurate.

Key Specifications
Diameter #6
Drive Type Phillips
Head Style Pan
Length 1-1/2 Inch
Material 410 Stainless Steel
Measurement Inch
