Winzer

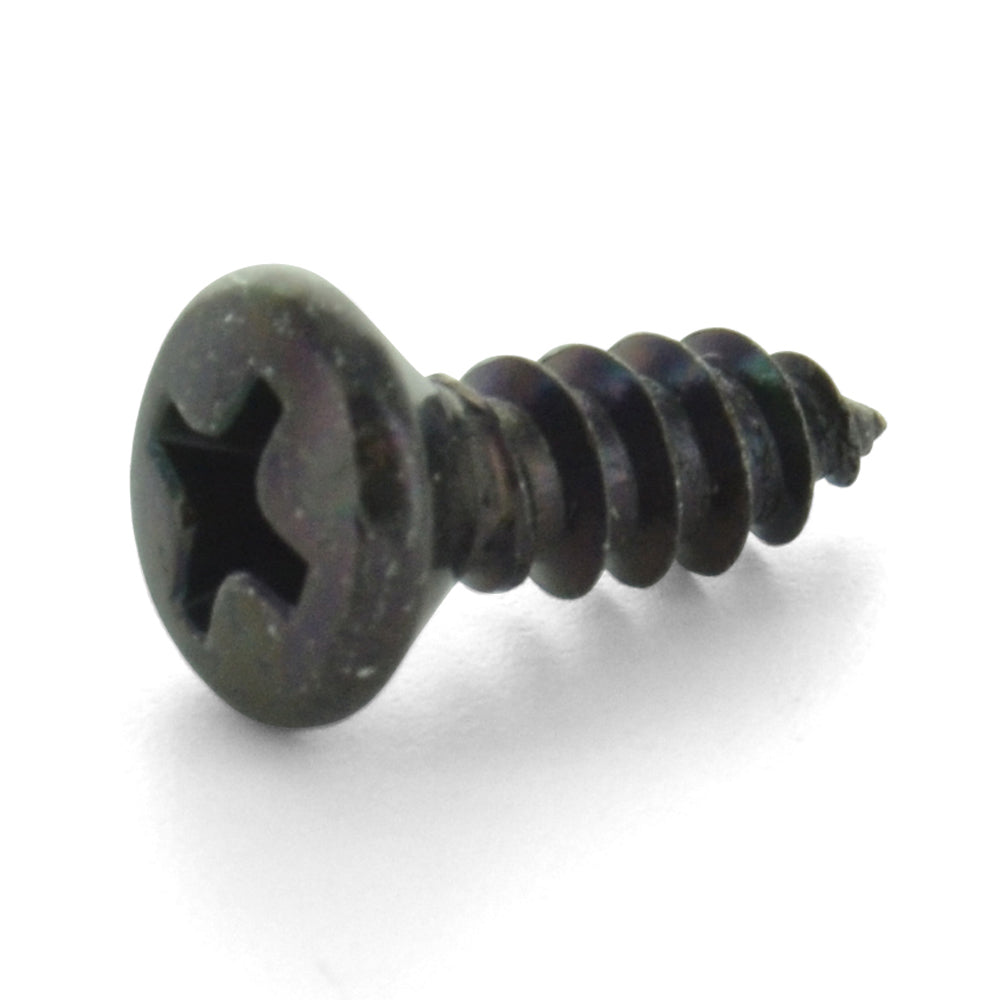

#6 x 1-1/4 Inch Black Oxide Alloy Steel Oval Head Type-Ab Self-Tapping Sheet Metal Screw

Item 137.35.32

We Stand Behind Our Products

If you are not satisfied, return within 90 days for a full refund.

Description

Oval-head sheet metal screws are self-tapping with a rounded top and are partly countersunk with about half of the screw head above the surface. Used on thin materials like sheet metal or wood veneer their coarse threads allow them to be continually fastened and unfastened for maintenance tasks.

  • Origin: Imported
  • Drive Size: #2
  • Drive Type: Phillips
  • Finish: Black Oxide
  • Head Diameter: 0.238 - 0.262 Inch
  • Head Height: 0.128 Inch
  • Head Style: Oval
  • Industry Standard: ASME/ANSI B18.6.4 SAE J78
  • Item: Self-Tapping Sheet Metal Screw
  • Length: 1-1/4 Inch
  • Material: Alloy Steel
  • Measurement: Inch
  • Origin: Imported
  • Point Type: Type-AB
  • Recess Diameter: 0.172 Inch
  • Recess Penetration Gagging Depth: 0.069 - 0.094 Inch
  • Specification: ASME/ANSI B18.6.4 SAE J78 SAE J933

Photographs are representational and may not be size accurate.

Key Specifications
Diameter #6
Finish Black Oxide
Head Style Oval
Length 1-1/4 Inch
Material Steel
Measurement Inch
Point Type Drill Point
