Winzer

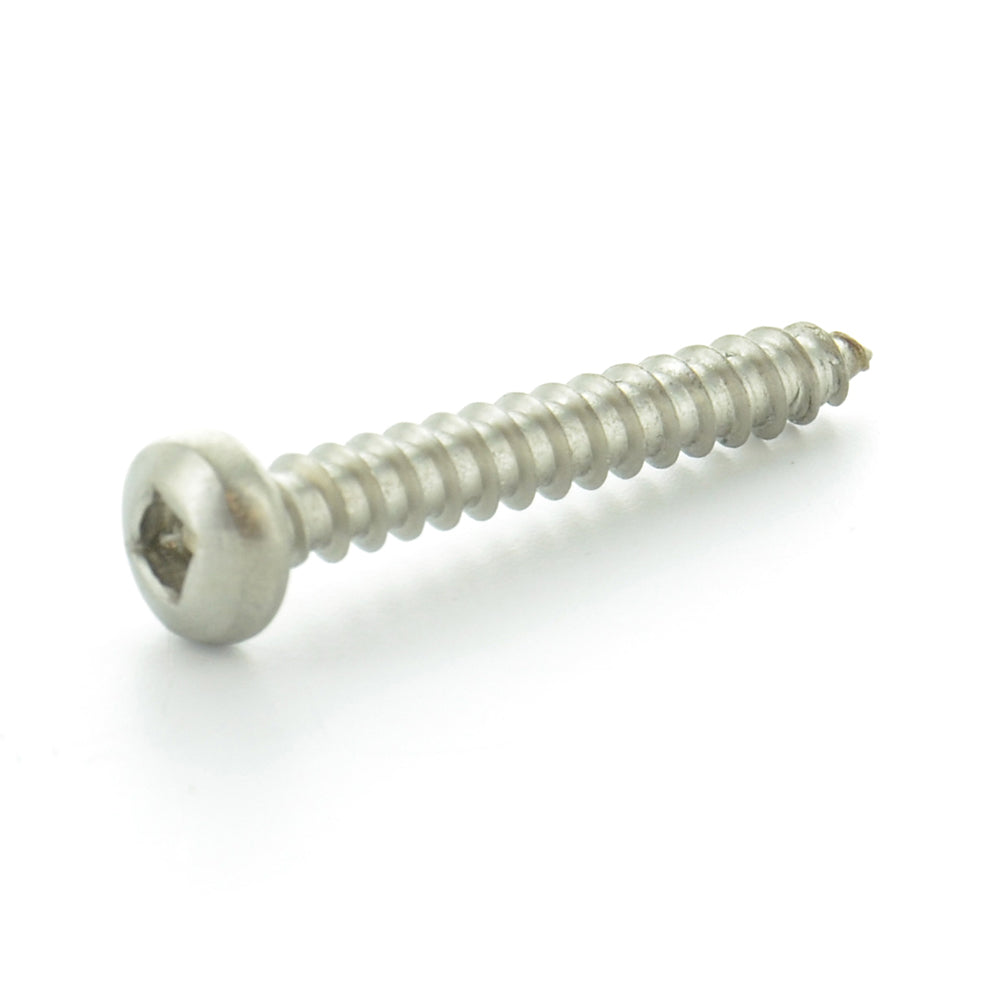

#6 x 1/2 Inch Plain 18-8 (A2) Stainless Steel Pan Head Type-Ab Self-Tapping Sheet Metal Screw

Item 118.0.6.12

We Stand Behind Our Products

If you are not satisfied, return within 90 days for a full refund.

Description

Pan head design is slightly rounded with minimal vertical sides. Square drive is designed to reduce the risk of stripping and allow single-handed installation. Additionally reduces the ability to tamper with the fastener once installed.

  • Origin: Imported
  • Pan Head Style: For general applications
  • Can be substituted in most applications for round truss or binding heads
  • Drive Size: #1R
  • Drive Type: Square
  • Finish: Plain
  • Head Diameter: 0.256 - 0.270 Inch
  • Head Height: 0.072 - 0.082 Inch
  • Head Style: Pan
  • Industry Standard: ASME/ANSI B18.6.4 SAE J78
  • Item: Self-Tapping Sheet Metal Screw
  • Length: 1/2 Inch
  • Material: 18-8 (A2) Stainless Steel
  • Measurement: Inch
  • Origin: Imported
  • Point Type: Type-AB
  • Recess Across Flat: 0.091 Inch
  • Recess Penetration Gagging Depth: 0.050 - 0.065 Inch
  • Specification: ASME/ANSI B18.6.4 SAE J78

Photographs are representational and may not be size accurate.

Key Specifications
Diameter #6
Drive Type Square
Head Style Pan
Length 1/2 Inch
Material 18-8 Stainless Steel
Measurement Inch
Point Type Drill Point
