Winzer

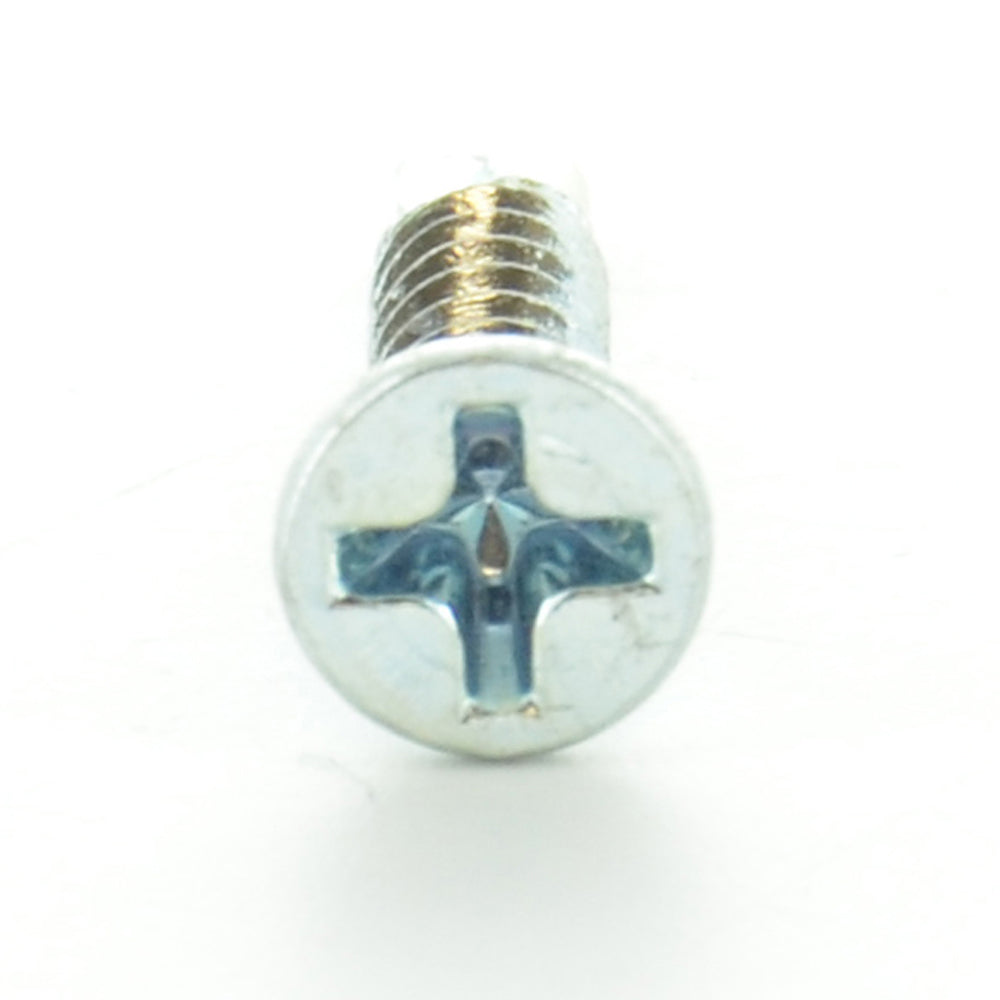

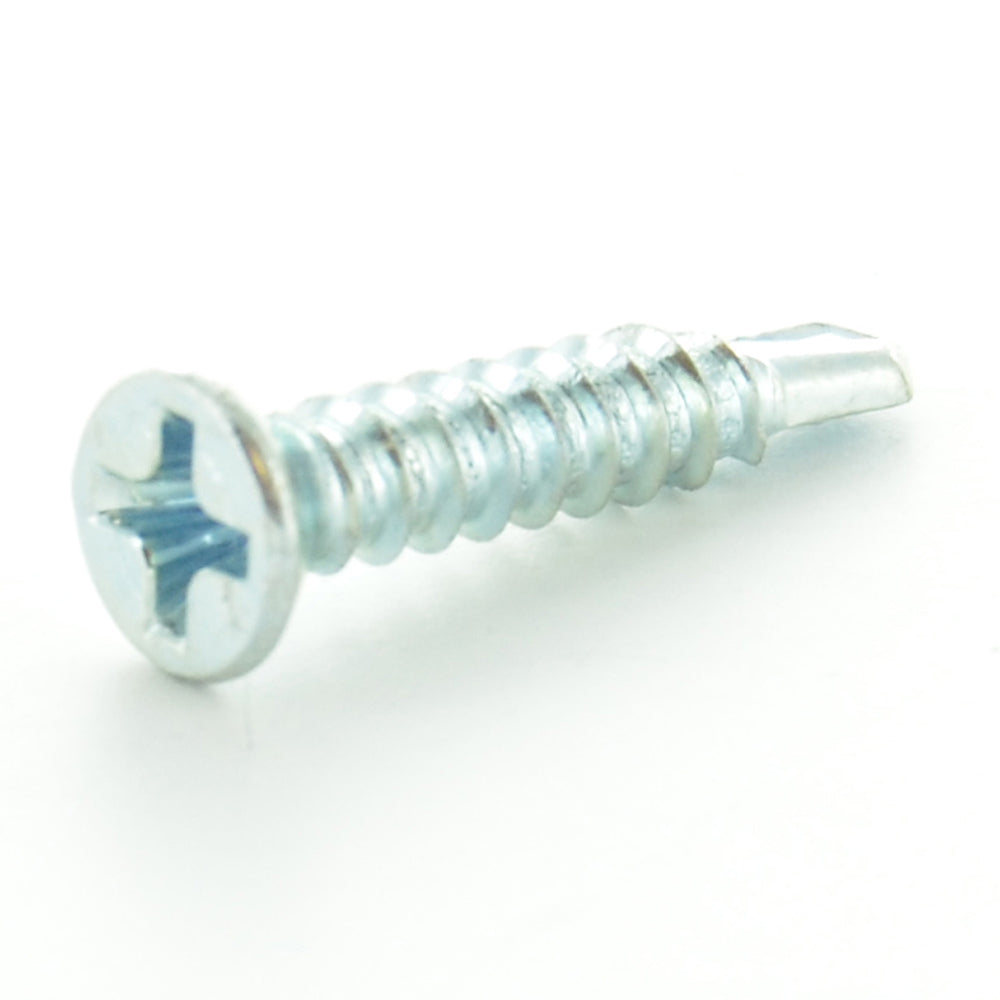

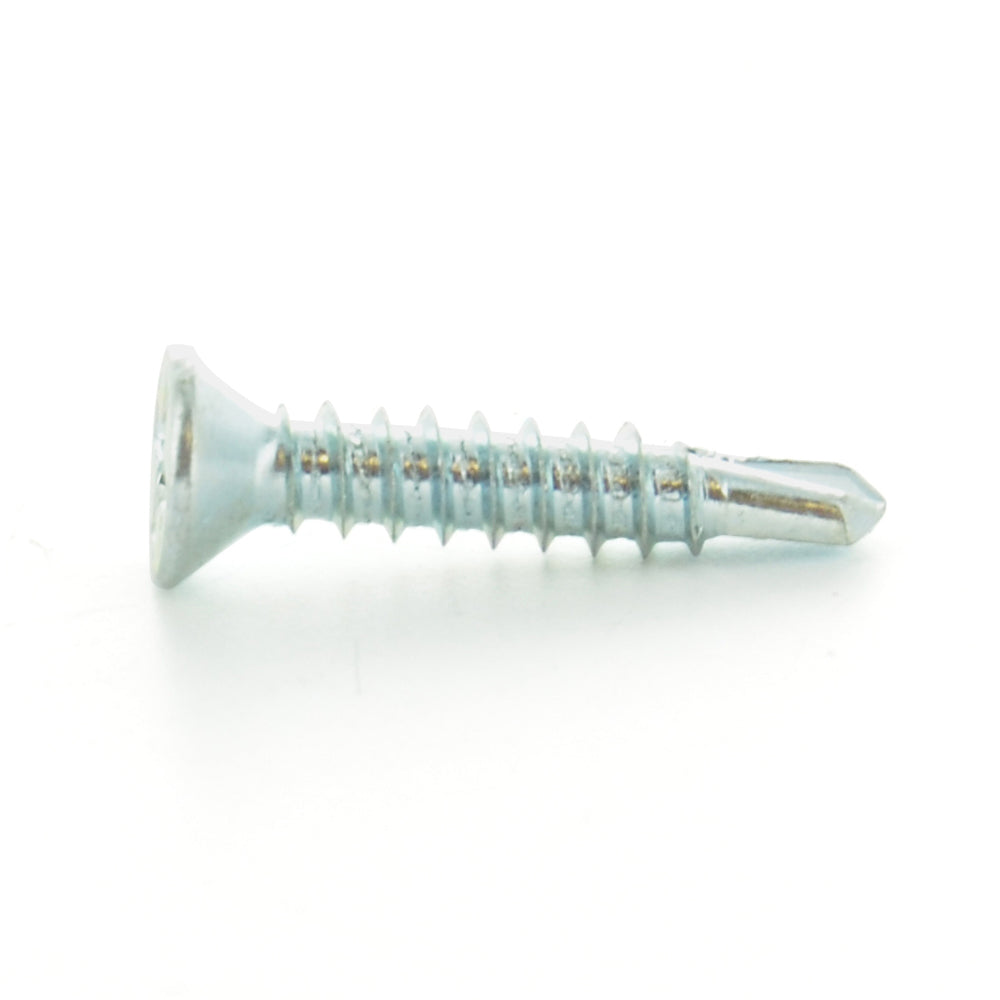

#6 x 1/2 Inch Zinc Plated Low Carbon Steel #2 Point Flat - Countersunk Head Self-Drilling Tek Screw

Item 121.12.6.12

We Stand Behind Our Products

If you are not satisfied, return within 90 days for a full refund.

Description

These machine screws have deeply sunk heads with flat top surfaces for fastening flatly against sides of metal joints and equipment. These screws sit flush against the surface of panels and electrical components for a finished look.

  • Origin: Imported
  • Case Hardened to RC 52-58 (Core Hardness to RC 32-40)
  • Drive Size: #2
  • Drive Type: Phillips
  • Finish: Zinc
  • Head Diameter: 0.235 - 0.262 Inch
  • Head Height: 0.060 Inch
  • Head Style: Flat - Countersunk
  • Industry Standard: ASME/ANSI B18.6.4 SAE J78
  • Item: Self-Drilling TEK Screw
  • Length: 1/2 Inch
  • Material: Low Carbon Steel
  • Measurement: Inch
  • Origin: Imported
  • Point Type: 3.2 mm
  • Recess Diameter: 0.168 Inch
  • Recess Penetration Gagging Depth: 0.072 - 0.095 Inch
  • Specification: ASME/ANSI B18.6.4 SAE J78 SAE J933

Photographs are representational and may not be size accurate.

Key Specifications
Diameter #6
Drive Type Phillips
Finish Zinc
Head Style Flat
Length 1/2 Inch
Material Low Carbon Steel
Measurement Inch
