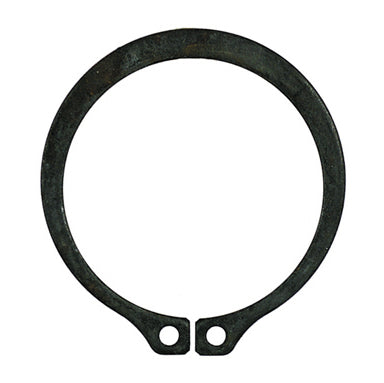

7/16 Inch Black Phosphate Carbon Spring Steel External Snap Ring

Item 436.716

We Stand Behind Our Products

If you are not satisfied, return within 90 days for a full refund.

Description

From cap screws to hitch pins we are a master distributor for fasteners of all types. Available in inch and metric sizes we are your single source solution. Additionally we offer both domestic and imported options for most fastener types.

  • Plating; Phosphate
  • Material: Carbon Spring SteelAllowable Corner Chamfers: 0.018 Inch
  • Allowable Corner Radii: 0.029 Inch
  • Clearance Diameter Released in Groove: 0.640 Inch
  • Edge Margin: 0.039 Inch
  • Finish: Black Phosphate
  • Gaging Diameter: 0.501 Inch
  • Groove Depth: 0.013 Inch
  • Groove Diameter: 0.412 Inch
  • Groove Diameter to Shaft Concentricity: 0.002 Inch
  • Groove Diameter Tolerance: +/-0.002
  • Groove Width: 0.029 Inch
  • Groove Width Tolerance: +0.003/-0.000
  • Hardness: HR30N 69.5-73
  • Hole Diameter: 0.041 Inch
  • Hole Diameter Tolerance: +0.010/-0.002
  • Item: External Snap Ring
  • Lug Height: 0.088 Inch
  • Lug Height Tolerance: +/-0.003
  • Material: Carbon Spring Steel
  • Maximum Section: 0.055 Inch
  • Maximum Section Tolerance: +/-0.003
  • Measurement: Inch
  • Minimum Section: 0.033 Inch
  • Minimum Section Tolerance: +/-0.003
  • Radial Wall Thickness: 0.033 - 0.055 Inch
  • Ring Free Diameter: 0.395 Inch
  • Ring Free Diameter Tolerance: +0.002/-0.005
  • RPM Limits: 50000 RPM
  • Shaft Diameter: 7/16 Inch
  • Thickness: 0.025 Inch
  • Thickness Tolerance: +/-0.002
  • Type: Stamped Standard Duty

Photographs are representational and may not be size accurate.

Key Specifications
Diameter 7/16 Inch
Material Spring Steel
Measurement Inch
