Winzer

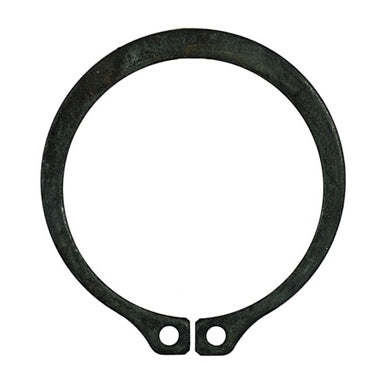

7/8 Inch Black Phosphate Carbon Spring Steel External Snap Ring

Item 436.78

We Stand Behind Our Products

If you are not satisfied, return within 90 days for a full refund.

Description

From cap screws to hitch pins we are a master distributor for fasteners of all types. Available in inch and metric sizes we are your single source solution. Additionally we offer both domestic and imported options for most fastener types.

  • Plating; Phosphate
  • Material: Carbon Spring SteelAllowable Corner Chamfers: 0.031 Inch
  • Allowable Corner Radii: 0.051 Inch
  • Clearance Diameter Released in Groove: 1.160 Inch
  • Edge Margin: 0.081 Inch
  • Finish: Black Phosphate
  • Gaging Diameter: 0.987 Inch
  • Groove Depth: 0.027 Inch
  • Groove Diameter: 0.821 Inch
  • Groove Diameter to Shaft Concentricity: 0.004 Inch
  • Groove Diameter Tolerance: +/-0.003
  • Groove Width: 0.046 Inch
  • Groove Width Tolerance: +0.003/-0.000
  • Hardness: HRC 47-53
  • Hole Diameter: 0.052 Inch
  • Hole Diameter Tolerance: +0.010/-0.002
  • Item: External Snap Ring
  • Lug Height: 0.137 Inch
  • Lug Height Tolerance: +/-0.004
  • Material: Carbon Spring Steel
  • Maximum Section: 0.104 Inch
  • Maximum Section Tolerance: +/-0.005
  • Measurement: Inch
  • Minimum Section: 0.057 Inch
  • Minimum Section Tolerance: +/-0.005
  • Radial Wall Thickness: 0.057 - 0.104 Inch
  • Ring Free Diameter: 0.810 Inch
  • Ring Free Diameter Tolerance: +0.005/-0.010
  • RPM Limits: 23000 RPM
  • Shaft Diameter: 7/8 Inch
  • Thickness: 0.042 Inch
  • Thickness Tolerance: +/-0.002
  • Type: Stamped Standard Duty
