Winzer

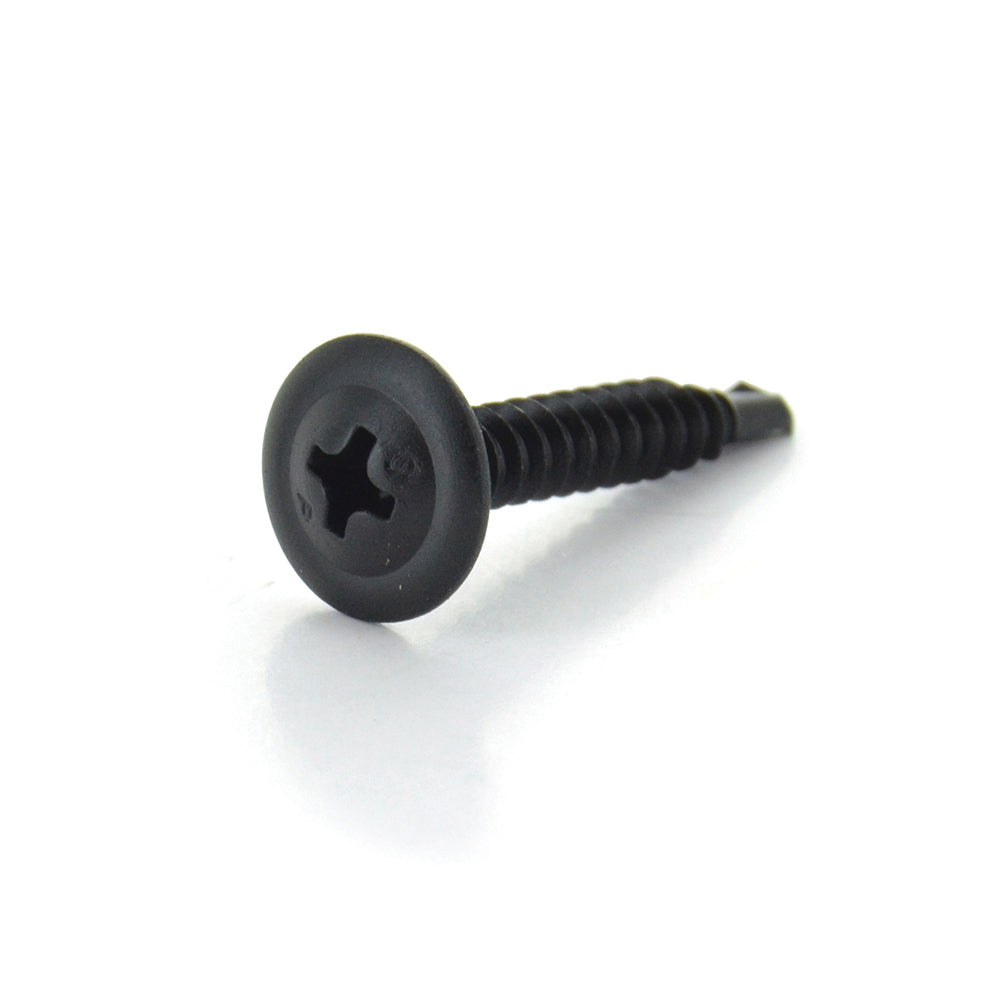

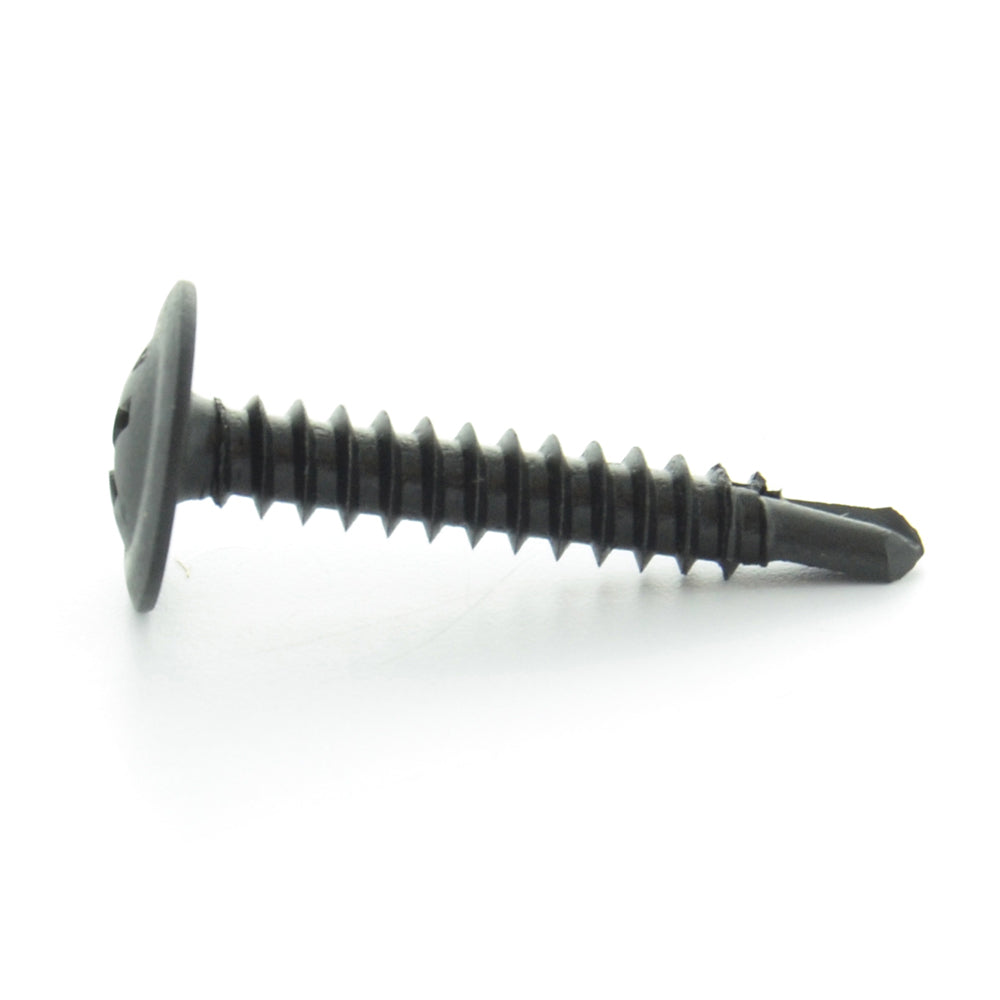

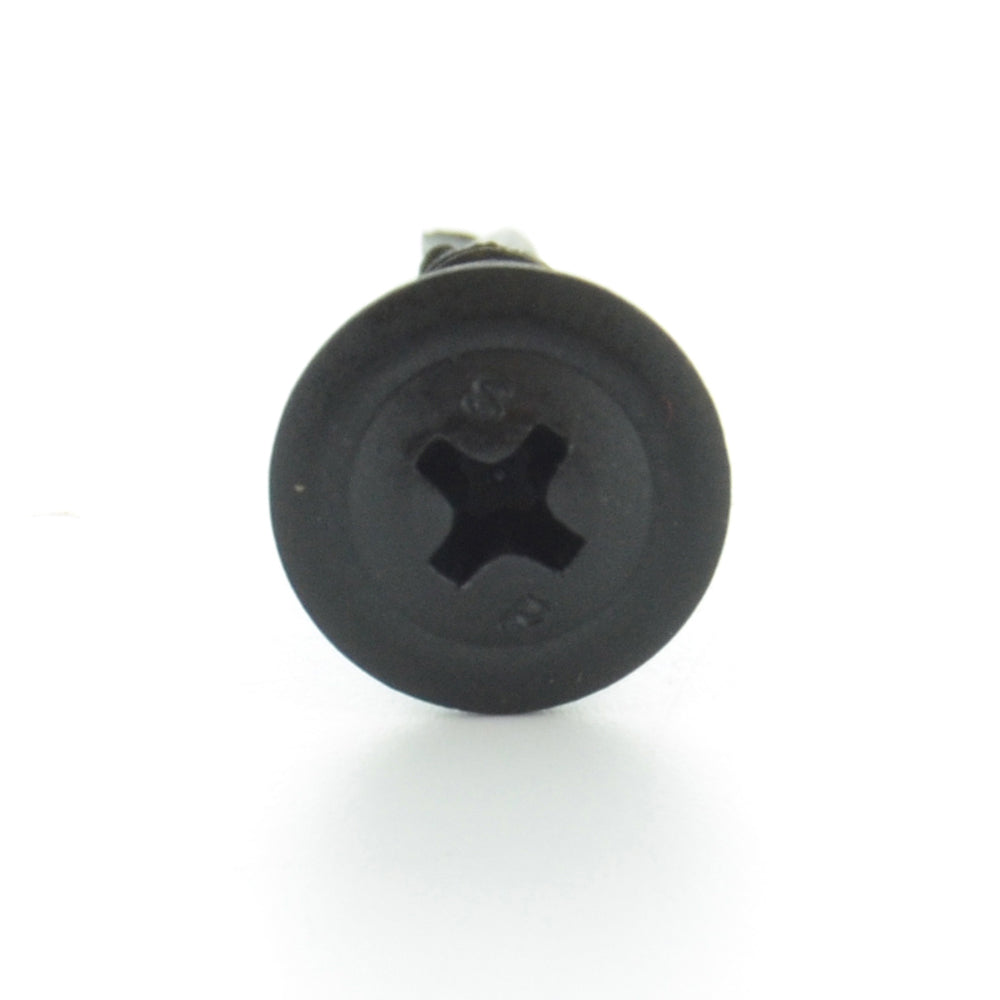

#8-18 x 1 Inch Black Oxide Steel #2 Point Modified Truss Head Self-Drilling Tek Screw

Item 121.02.8.1

We Stand Behind Our Products

If you are not satisfied, return within 90 days for a full refund.

Description

Truss head sheet metal screws have a wider head than standard round head screws to extend holding power and reduce the risk of cracking thin metal. They fasten 0.025" and thinner sheet metal.

  • Origin: Imported
  • Finishing screw for use when aesthetics are important
  • Drill Capacity: 0.035 - 0.100 Inch
  • Drive Size: #2
  • Drive Type: Phillips
  • Finish: Black Oxide
  • Head Diameter: 0.364 - 0.384 Inch
  • Head Height: 0.088 - 0.102 Inch
  • Head Style: Modified Truss
  • Industry Standard: ASME/ANSI B18.6.4 SAE J78
  • Item: Self-Drilling TEK Screw
  • Length: 1 Inch
  • Material: Steel
  • Measurement: Inch
  • Origin: Imported
  • Point Type: 3.2 mm
  • Recess Diameter: 0.166 Inch
  • Recess Penetration Gagging Depth: 0.063 - 0.088 Inch
  • Specification: ASME/ANSI B18.6.4 SAE J78 SAE J933
  • Threads Per Inch: 18

Photographs are representational and may not be size accurate.

Key Specifications
Diameter #8
Drive Type Phillips
Finish Black Oxide
Head Style Modified Truss
Length 1 Inch
Material Steel
Measurement Inch
