Winzer

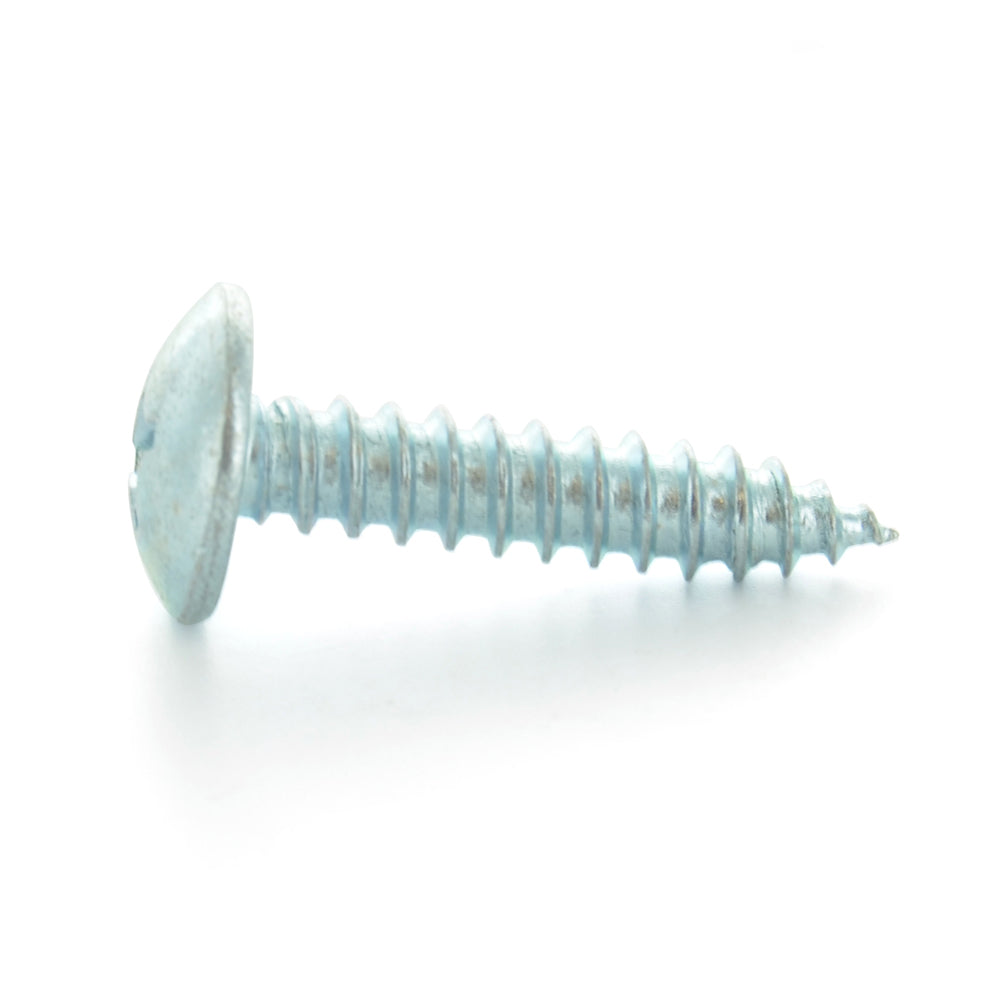

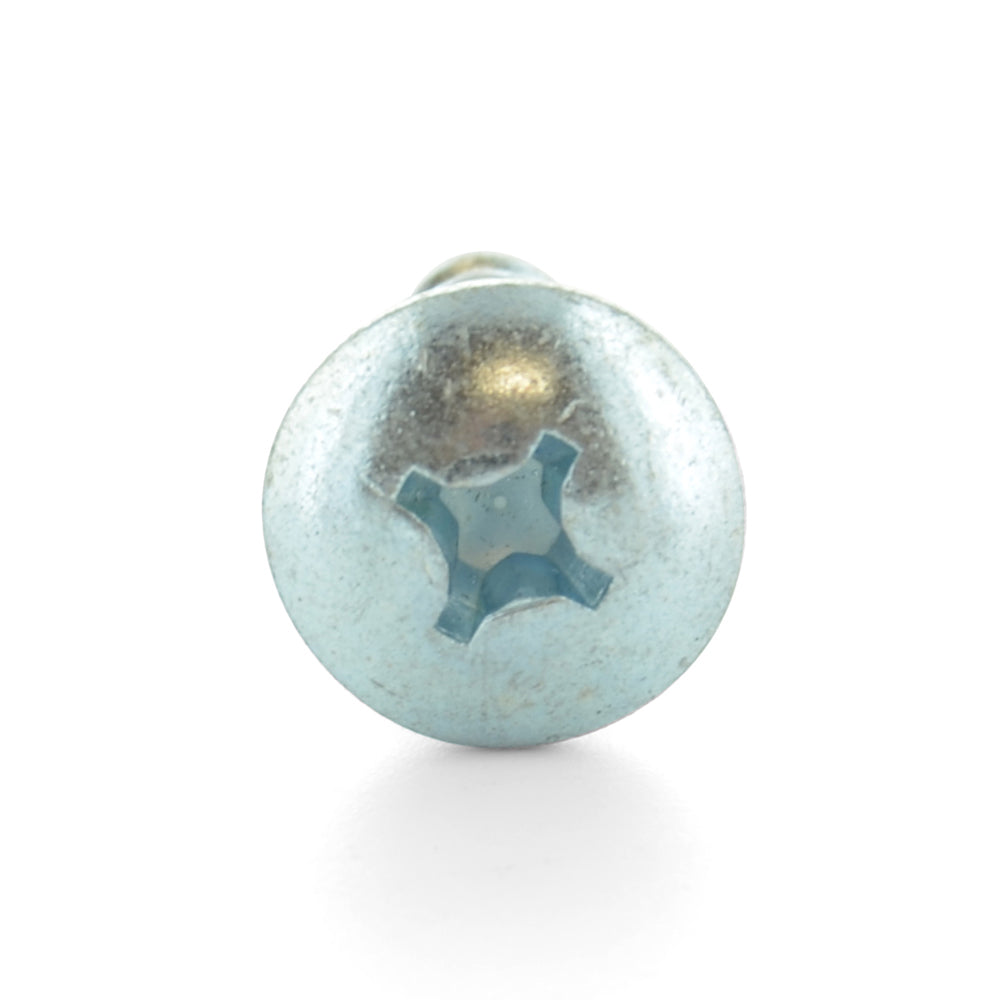

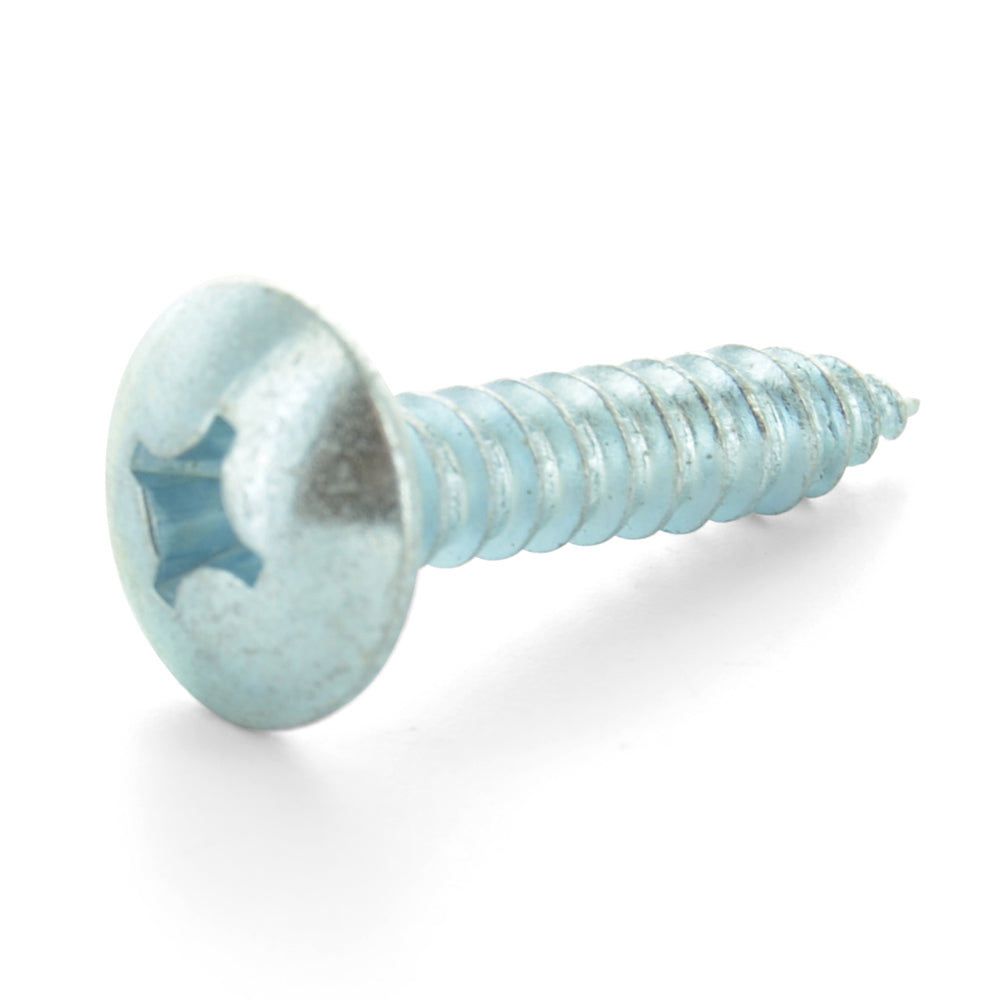

#8 x 1-1/4 Inch Zinc Plated Alloy Steel Truss Head Type-Ab Self-Tapping Sheet Metal Screw

Item 109.1.8.114

We Stand Behind Our Products

If you are not satisfied, return within 90 days for a full refund.

Description

Truss head sheet metal screws have a wider head than standard round head screws to extend holding power and reduce the risk of cracking thin metal. They fasten 0.025" and thinner sheet metal.

  • Origin: Imported
  • Drive Size: #2
  • Drive Type: Phillips
  • Finish: Zinc
  • Head Diameter: 0.364 - 0.384 Inch
  • Head Height: 0.088 - 0.102 Inch
  • Head Style: Truss
  • Industry Standard: ASME/ANSI B18.6.4 SAE J78
  • Item: Self-Tapping Sheet Metal Screw
  • Length: 1-1/4 Inch
  • Material: Alloy Steel
  • Measurement: Inch
  • Origin: Imported
  • Point Type: Type-AB
  • Recess Diameter: 0.166 Inch
  • Recess Penetration Gagging Depth: 0.063 - 0.088 Inch
  • Specification: ASME/ANSI B18.6.4 SAE J78 SAE J933

Photographs are representational and may not be size accurate.

Key Specifications
Diameter #8
Drive Type Phillips
Finish Zinc
Head Style Truss
Length 1-1/4 Inch
Material Alloy Steel
Measurement Inch
Origin IMPORT
Point Type Drill Point
