Winzer

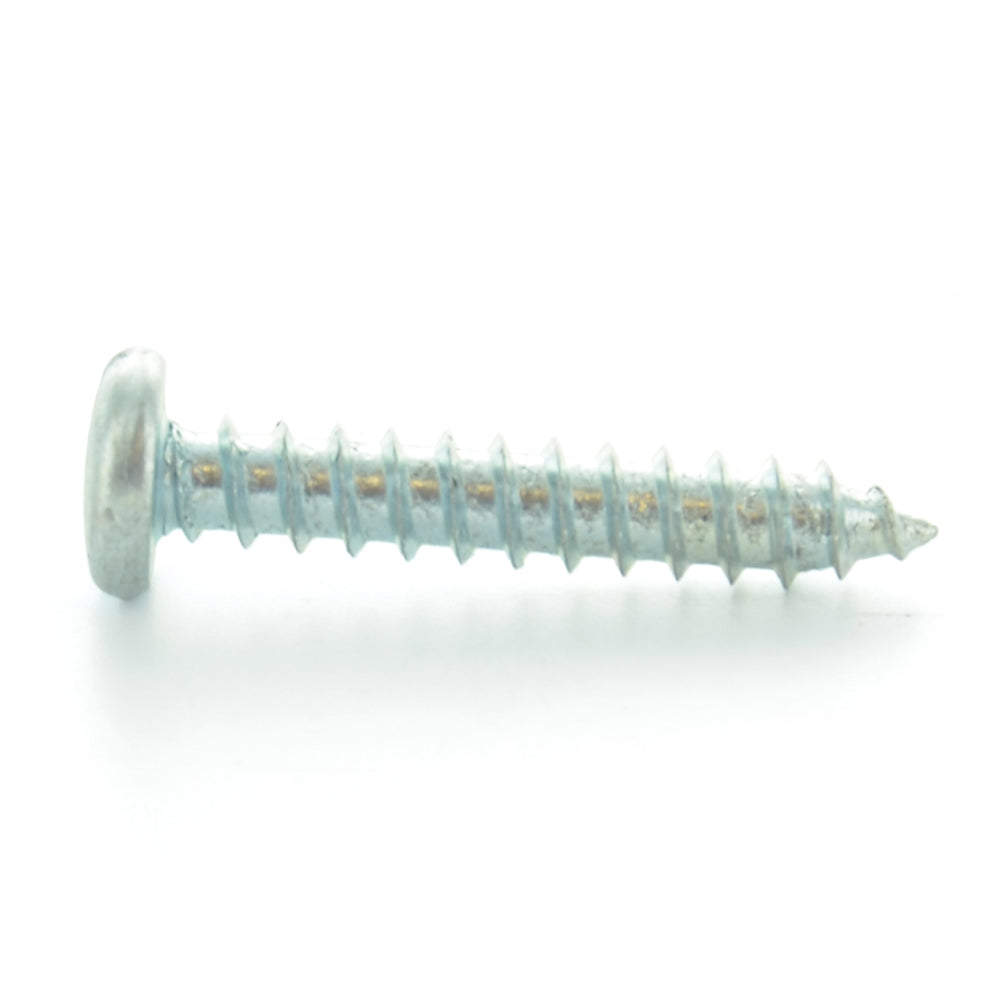

#8 x 1/2 Inch Pan Head Type-Ab Self-Tapping Sheet Metal Screw Zinc Plated

Item 110.42.13

We Stand Behind Our Products

If you are not satisfied, return within 90 days for a full refund.

Description

Pan head design is slightly rounded with minimal vertical sides. Square drive is designed to reduce the risk of stripping and allow single-handed installation. Additionally reduces the ability to tamper with the fastener once installed.

  • Origin: Imported
  • Pan Head Style: For general applications
  • Can be substituted in most applications for round truss or binding heads
  • Drive Type: Slotted
  • Finish: Zinc
  • Head Diameter: 0.306 - 0.322 Inch
  • Head Height: 0.085 - 0.096 Inch
  • Head Style: Pan
  • Industry Standard: ASME/ANSI B18.6.4 SAE J78
  • Item: Self-Tapping Sheet Metal Screw
  • Length: 1/2 Inch
  • Material: Low Carbon Steel
  • Measurement: Inch
  • Origin: Imported
  • Point Type: Type-AB
  • Slot Depth: 0.045 - 0.058 Inch
  • Slot Width: 0.045 - 0.054 Inch
  • Specification: ASME/ANSI B18.6.4 SAE J78 SAE J933

Photographs are representational and may not be size accurate.

Key Specifications
Diameter #8
Drive Type Slotted
Finish Zinc
Head Style Pan
Length 1/2 Inch
Material Low Carbon Steel
Measurement Inch
Origin IMPORT
Point Type Drill Point
