Winzer

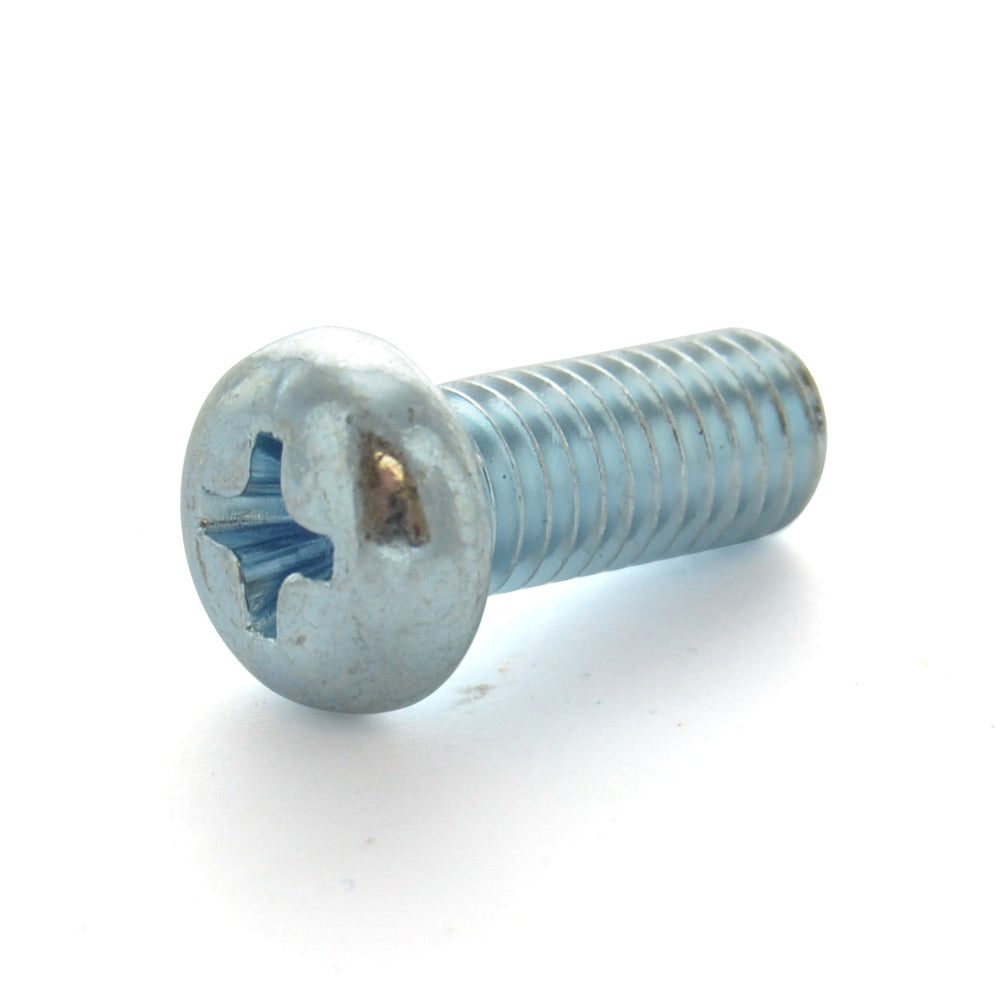

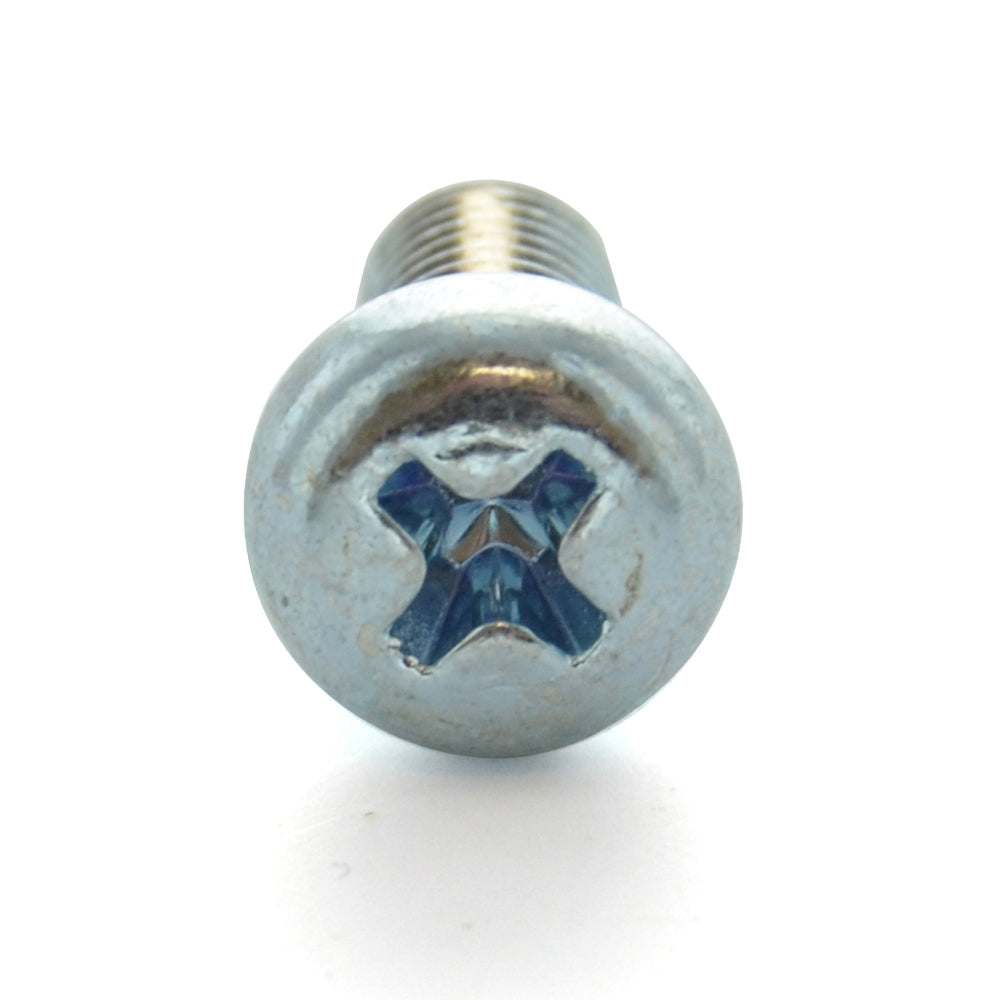

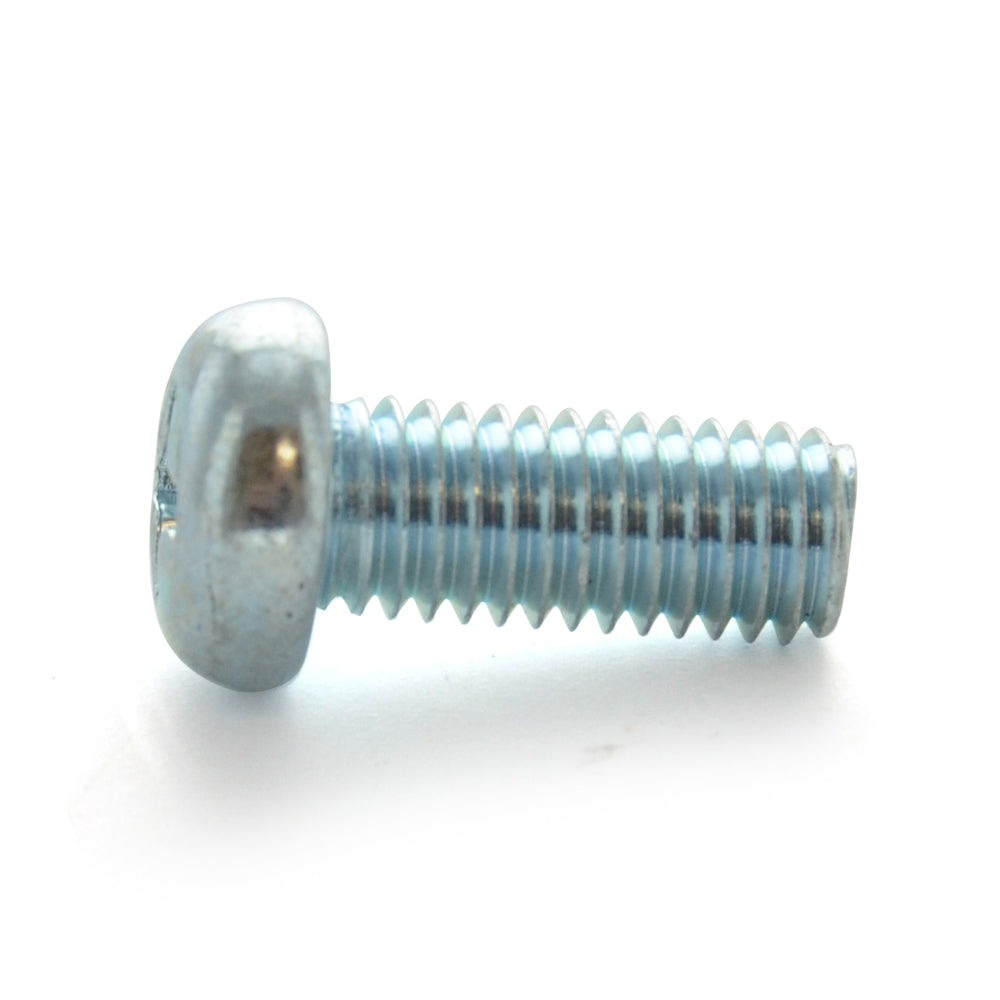

M3 x 0.5 x 8 Mm Coarse Class 4.8 Zinc Plated Steel Phillips Drive Pan Head Reduced Machine Screw

Item 047.3.8

We Stand Behind Our Products

If you are not satisfied, return within 90 days for a full refund.

Description

Pan head design is slightly rounded with minimal vertical sides. Square drive is designed to reduce the risk of stripping and allow single-handed installation. Additionally reduces the ability to tamper with the fastener once installed.

  • Hardness: HRB 71 - 99.5
  • Drive Type: Phillips
  • Finish: Zinc
  • Grade: Class 4.8
  • Head Diameter: 5 - 5.5 mm
  • Head Height: 1.85 - 2.15 mm
  • Head Type: Pan
  • Industry Standard: JIS B-1111
  • Item: Reduced Machine Screw
  • Length: 8 mm
  • Material: Steel
  • Measurement: Metric
  • Origin: Imported
  • Recess Diameter: 2 mm
  • Recess Penetration Gagging Depth: 0.86 - 1.43 mm
  • Specification: JIS B-1111
  • Tensile Strength : 60900 psi
  • Thread Length: 8 mm
  • Thread Type: Coarse
  • Type: Full Threaded
  • Yield Strength: 49300 Psi

Photographs are representational and may not be size accurate.

Key Specifications
Drive Type Phillips
Finish Zinc
Head Style Pan
Length 8 mm
Measurement Metric
Thread Type Coarse
