Winzer

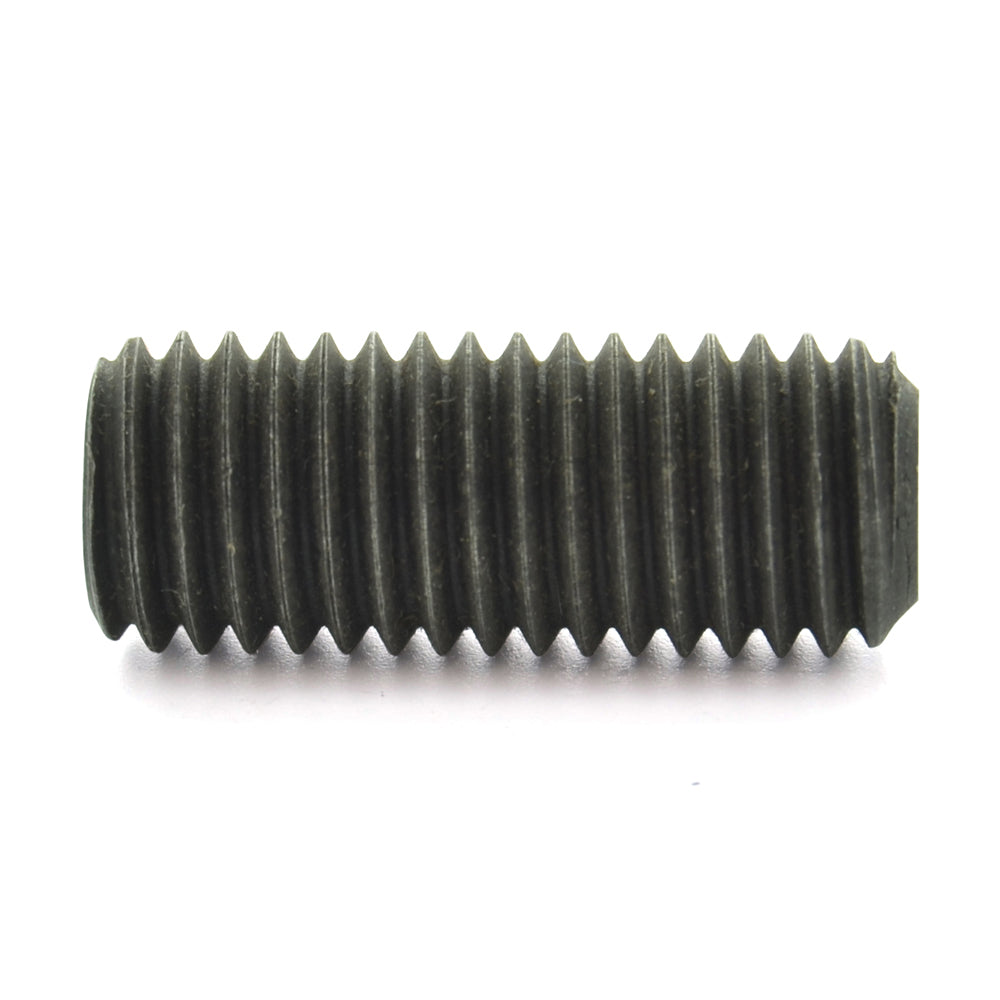

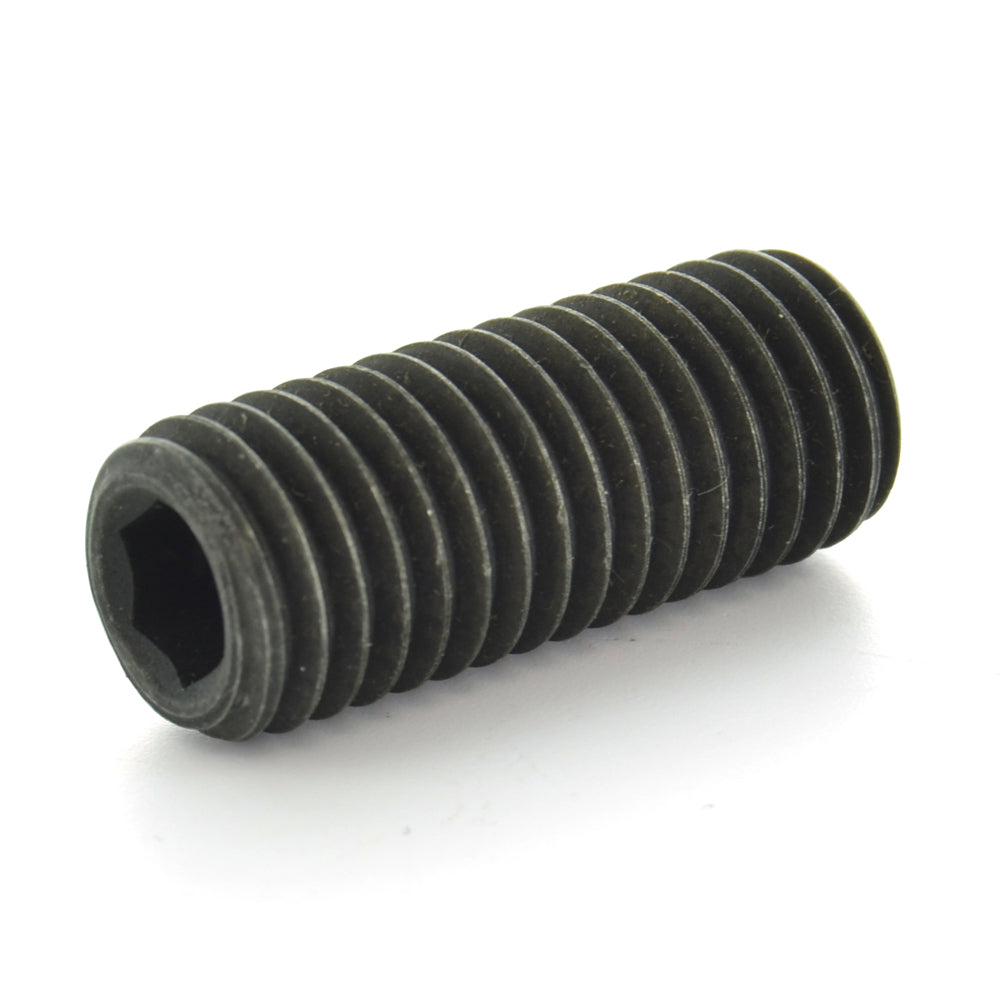

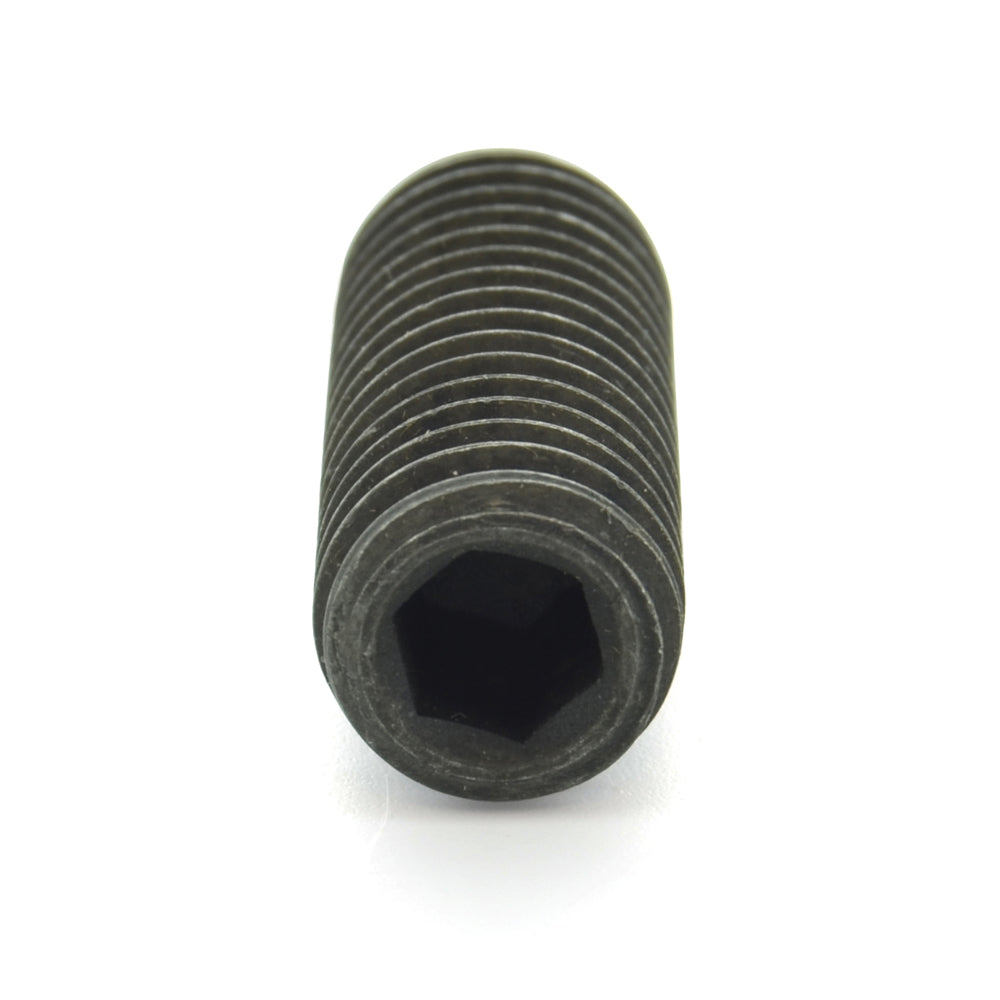

M4 x 0.7 x 16 Mm Coarse Black Oxide Alloy Steel DIN 916 Cup Point Socket Head Set Screw

Item 085.4.16

We Stand Behind Our Products

If you are not satisfied, return within 90 days for a full refund.

Description

Socket set screws also known as grub screws have no head and are typically tightened or loosened with a square or hex key. A slotted set screw can be adjusted with a screwdriver. Socket set screws prevent movement of a pulley or similar machine part relative to a shaft. A cup point set screw has a rounded tip that grips and resists deforming the shaft surface. A flat point screw provides more contact with the shaft.

  • Origin: Imported
  • A headless screw threaded the entire length
  • Length is measured as overall length including the tip
  • Has a hexagonal drive at one end and a cup point shaped indention at the other end
  • The most used style set screw used for permanent location of one part to another
  • Often used as adjusting screws and can be used to replace dowel pins
  • Drive Size: 2 mm
  • Drive Type: Internal Hex
  • Finish: Black Oxide
  • Grade: Class 10.9
  • Head Style: Socket
  • Industry Standard: DIN 916
  • Item: Set Screw
  • Key Engagement: 1.5 mm
  • Length: 16 mm
  • Material: Alloy Steel
  • Measurement: Metric
  • Origin: Imported
  • Point Diameter: 1.75 - 2.00 mm
  • Point Type: Cup
  • Specification: DIN 916 ISO 898-1
  • Tensile Strength : 150800 psi
  • Thread Type: Coarse
  • Type: Full Threaded
  • Width Across Corner: 2.303 mm

Photographs are representational and may not be size accurate.

Key Specifications
Diameter M4
Drive Type Internal Hex
Finish Black Oxide
Head Style Socket
Length 16 mm
Measurement Metric
Origin IMPORT
Thread Type Coarse
