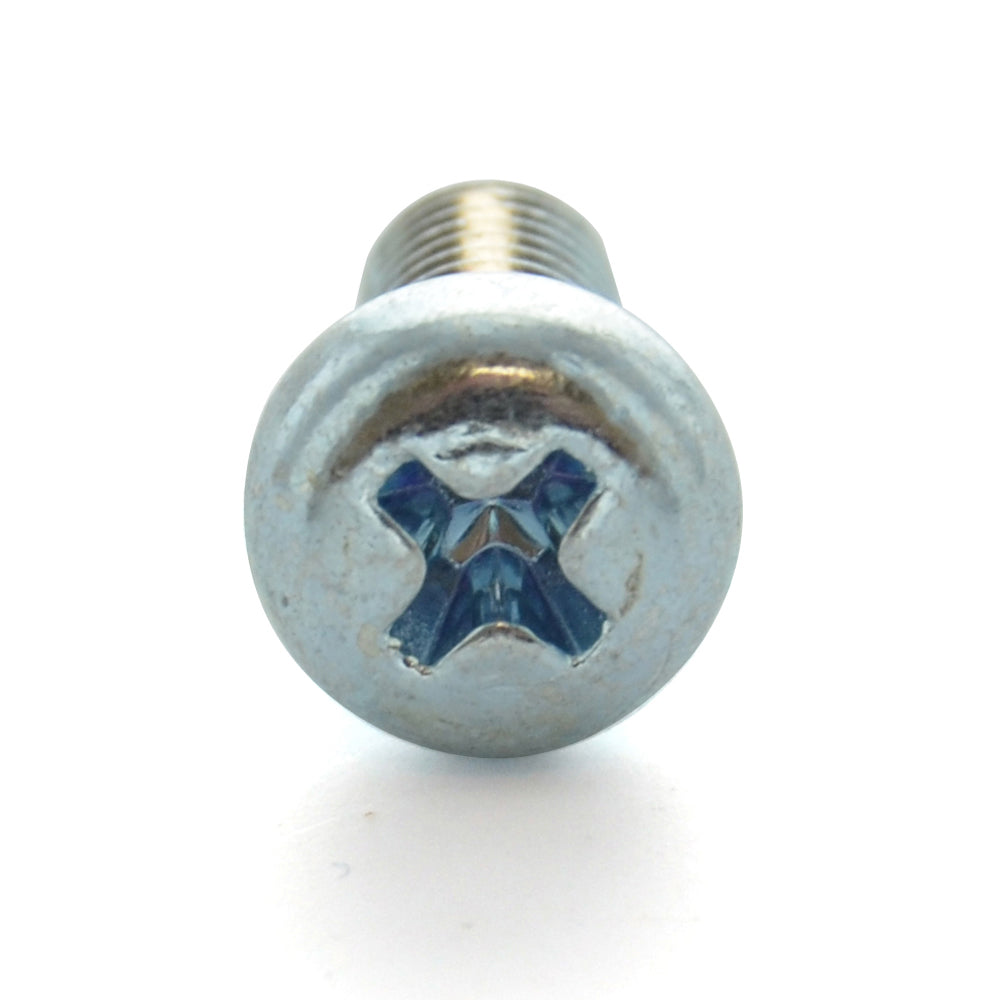

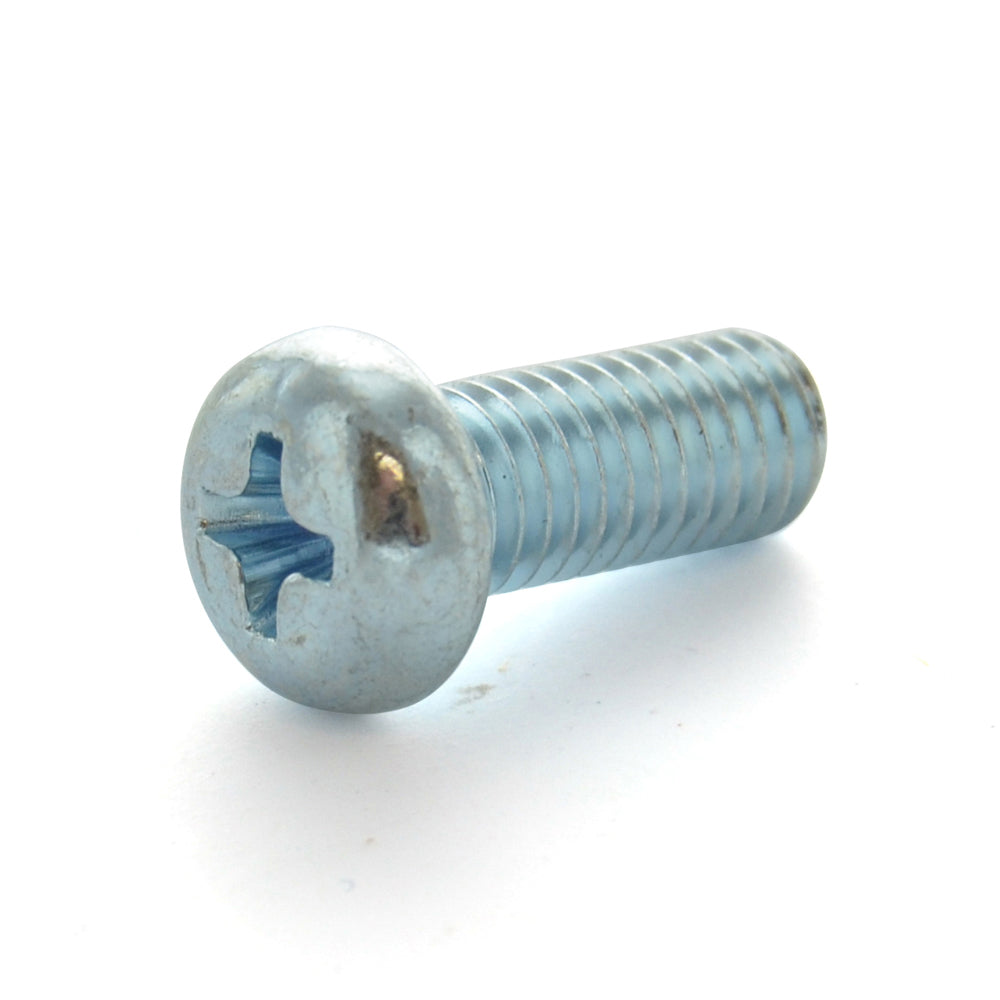

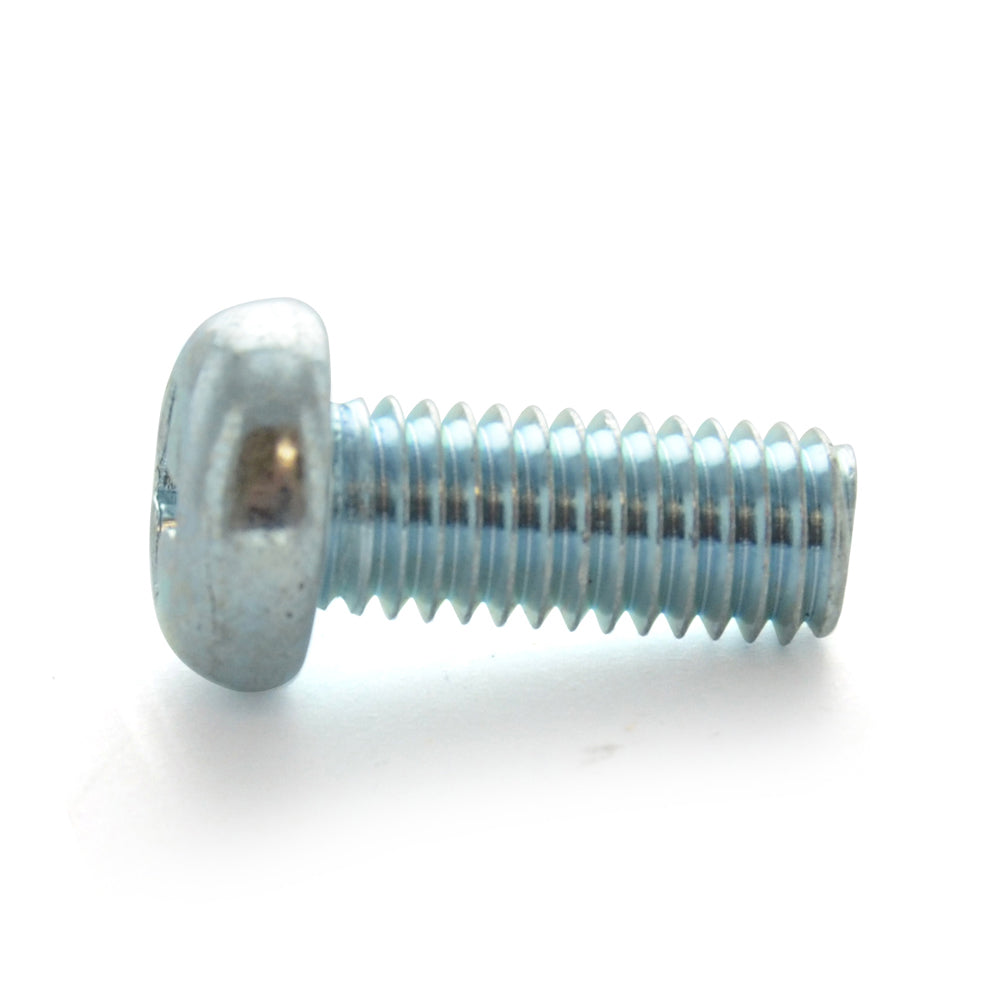

Photographs are representational and may not be size accurate.

Winzer

M5 x 0.8 x 50 Mm Coarse Class 4.8 Zinc Plated Steel Phillips Drive Pan Head Reduced Machine Screw

Item 047.5.50

We Stand Behind Our Products

If you are not satisfied, return within 90 days for a full refund.

Description

Pan head design is slightly rounded with minimal vertical sides. Square drive is designed to reduce the risk of stripping and allow single-handed installation. Additionally reduces the ability to tamper with the fastener once installed.

  • Hardness: HRB 71 - 99.5
  • Drive Type: Phillips
  • Finish: Zinc
  • Grade: Class 4.8
  • Head Diameter: 8.4 - 9 mm
  • Head Height: 3.15 - 3.45 mm
  • Head Type: Pan
  • Industry Standard: JIS B-1111
  • Item: Reduced Machine Screw
  • Length: 50 mm
  • Material: Steel
  • Measurement: Metric
  • Origin: Imported
  • Recess Diameter: 2 mm
  • Recess Penetration Gagging Depth: 2.14 - 2.73 mm
  • Specification: JIS B-1111
  • Tensile Strength : 60900 psi
  • Thread Length: 50 mm
  • Thread Type: Coarse
  • Type: Full Threaded
  • Yield Strength: 49300 Psi

Photographs are representational and may not be size accurate.

Key Specifications
Diameter M5
Drive Type Phillips
Finish Zinc
Head Style Pan
Length 50 mm
Measurement Metric
Thread Type Coarse
