Winzer

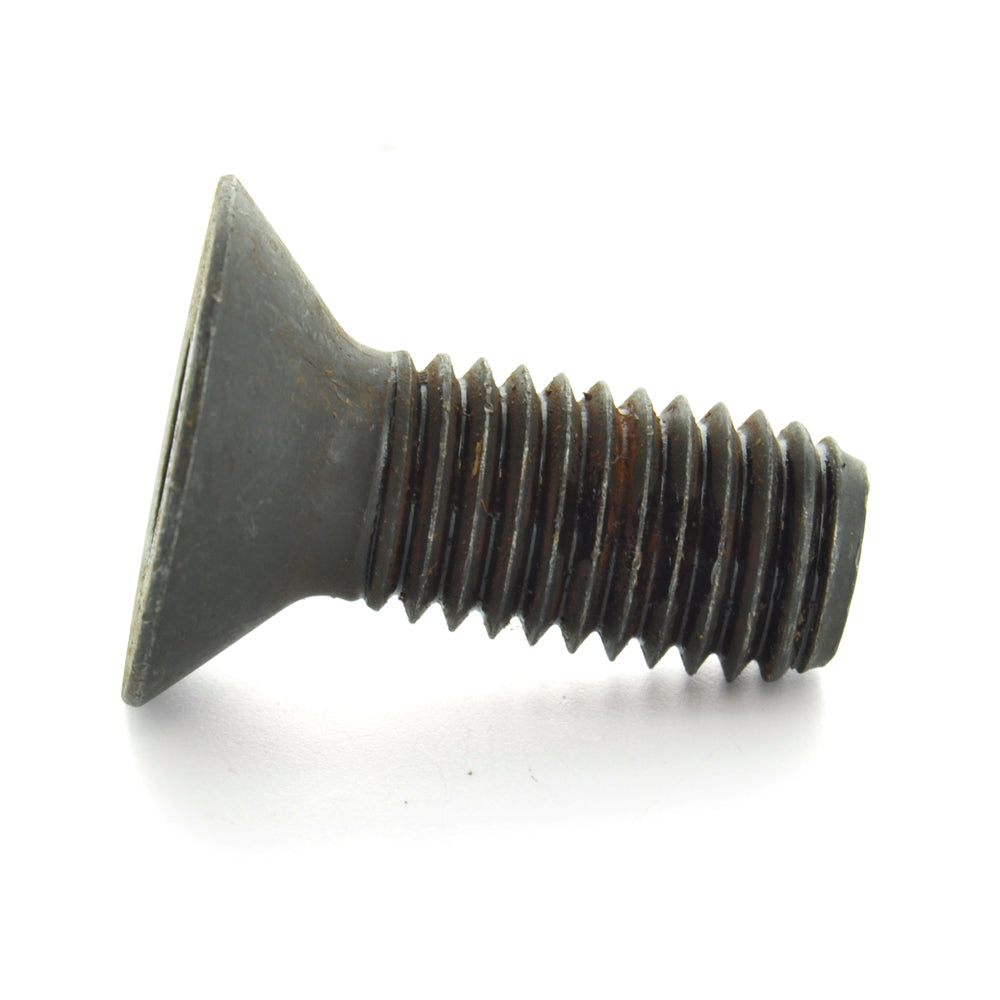

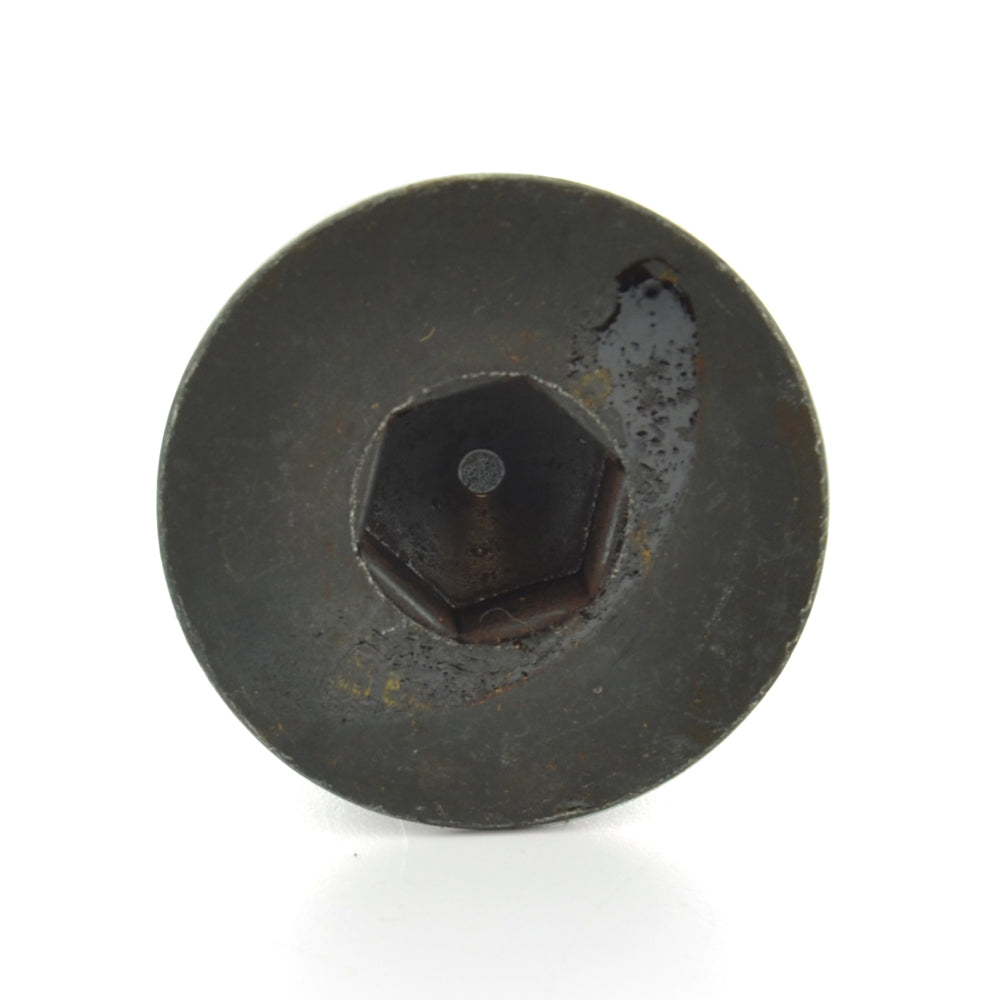

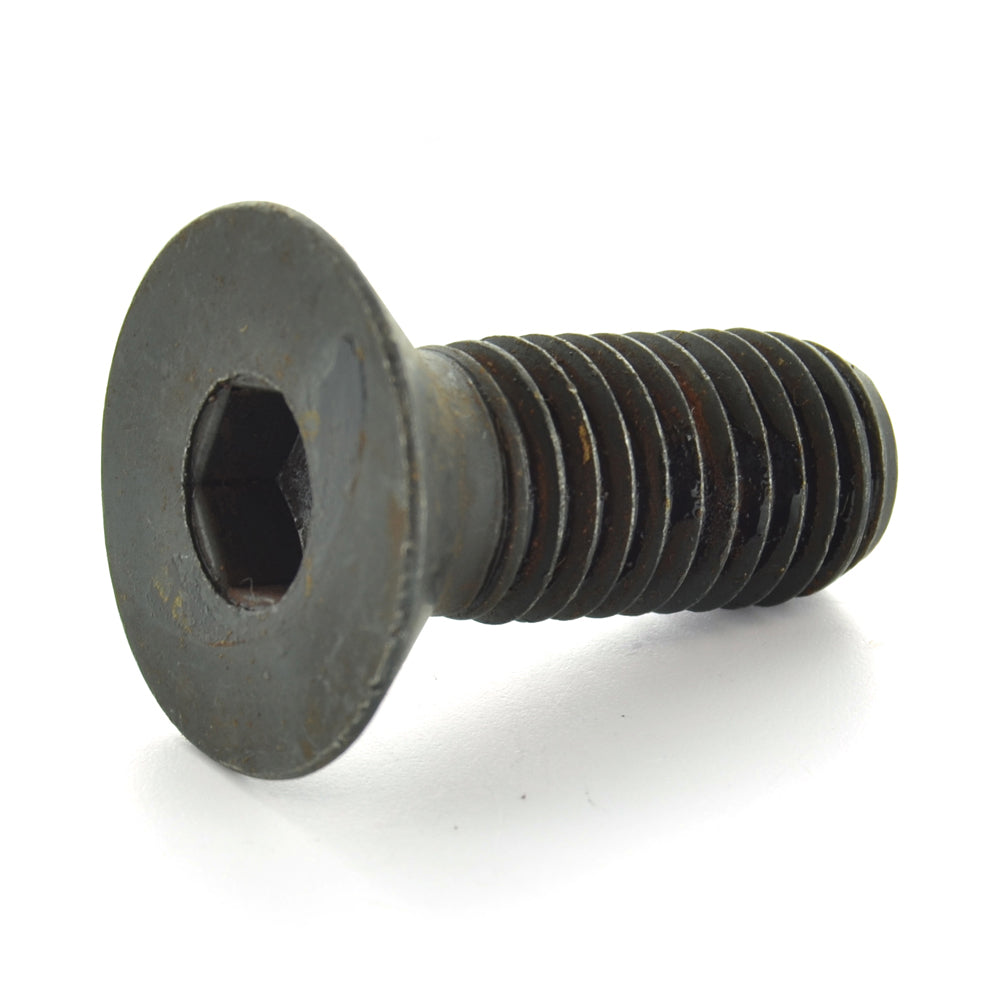

M5 x 0.8 x 8 Mm Coarse Black Oxide Class 10.9 DIN 7991 Flat Head Socket Cap Screw

Item 089.5.8

We Stand Behind Our Products

If you are not satisfied, return within 90 days for a full refund.

Description

Socket head cap screws are commonly used in machine assembly for removable panels and parts. They have a round cap with a hex head and are tightened with a socket wrench drive. Longer caps are easier to see when fastened while button and flat head caps are less likely to snag clothing or linkages. Cap screws with a black oxide or armor coat finish resist corrosion.

  • Origin: Imported
  • Flat or countersunk head with hexagonal recessed drive
  • Used to hold thin section metals together
  • Applications that require a neat smooth surface
  • Not intended for high strength applications
  • The only purpose of having them produced in 10.9 property class is to increase the wear resistance of the socket drive
  • Drive Type: Internal Hex
  • Finish: Black Oxide
  • Grade: Class 10.9
  • Head Diameter: 9.64 - 10.00 mm
  • Head Height: 2.8 mm
  • Head Style: Flat
  • Industry Standard: DIN 7991
  • Item: Socket Cap Screw
  • Key Size: 3 mm
  • Length: 8 mm
  • Material: Alloy Steel
  • Measurement: Metric
  • Origin: Imported
  • Specification: DIN 7991 ISO 898-1
  • Tensile Strength : 150800 psi
  • Thread Length: 8 mm
  • Thread Type: Coarse
  • Type: Full Threaded

Photographs are representational and may not be size accurate.

Key Specifications
Diameter M5
Drive Type Internal Hex
Finish Black Oxide
Head Style Flat
Length 8 mm
Measurement Metric
Origin IMPORT
Thread Type Coarse
